Indoor P4 Flexible LED Display SMD2121 For Night Club / Entertainment Events
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel Configuration: | 1R1G1B | Protection Ratings: | IP31 |
|---|---|---|---|
| Use: | Indoor | ||
| High Light: | flexible led signs,flexible led display screen |
||
Indoor P4 Flexible LED Display SMD2121 For Night Club / Entertainment Events
Quick Detail:
1. IP31 Ruggedness, all-weather qualified
2. Perfect quality and stability, 24/7 running
3. High brightness: >2500cd/㎡
4. ≤1mm surface level up, smooth video
5. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
6. Long lifespan up to 100,000 hours
Description:

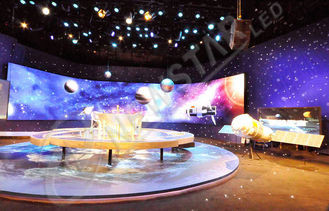

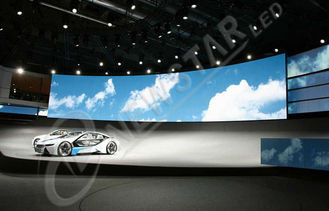

1. It can be curved into different shape to fit convex or concave wall or rugged wall or building, also it can
be shaped into column to wrap pillars for animation decoration.
2. Easy to maintain, High resolution, Good contract, Less Weight, easy to install. Widely used as the
information billboard in Airport, Railway station, and big shopping mall, concert and ect.
3.The brightness of indoor LED signs is adjustable so as to ensure different environment.
4.We make best design with high cost- efficiency according to the actual needs of our customers and we
can offer OEM service as well.
Applications:
Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,
shopping malls, railways, airports, harbors, etc;
Specifications:
1. Indoor LED Display Technical Parameter
|
Model No. |
NS-IR-DS-P4 |
|
Pixel Pitch |
4mm |
|
Module Size |
128mm ×128mm |
|
Module Resolution(Pixel) |
32dots ×32dots |
|
Pixel Density |
62,500dots/m2 |
|
LED Type |
SMD 3 in 1 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/16 Duty Constant Current |
|
Cabinet Size |
640×512×135mm |
|
Cabinet Resolution |
160dots×128dots |
|
Brightness |
≥2500cd/㎡ |
|
Contrast |
≥2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Minimum Viewing Distance |
2m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
3100W/㎡ |
|
Average Power consumption |
1000W/㎡ |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85HZ |
|
Refresh Frequency |
240-1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C~+85°C Working:-20°C~+60°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LINSN OR DB-STAR |
|
Software |
LED studio 10.0 |
|
Waterproof Level |
IP31 |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
2. Indoor LED Display Module
|
Module Size (W*H) |
128mm*128mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
4mm |
Resolution (W*H) |
32 dots*32 dots |
|
Pixel Density |
62,500 dots/㎡ |
LED Type |
SMD2121 |
3. Indoor LED Display Cabinet
|
Cabinet Size (W*H) |
640mm ×512mm x135mm |
Module Qty |
20 pcs |
|
Cabinet Resolution (W*H) |
160 dots*128 dots |
Cabinet Pixel |
20480 |
|
Weight |
18 kg/ Cabinet |
Area |
0.33㎡ |
|
Average Power Consumption |
400w/㎡ |
Max Consumption |
1000 W/㎡ |
4. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. Onsite installation instruction and regular inspection
