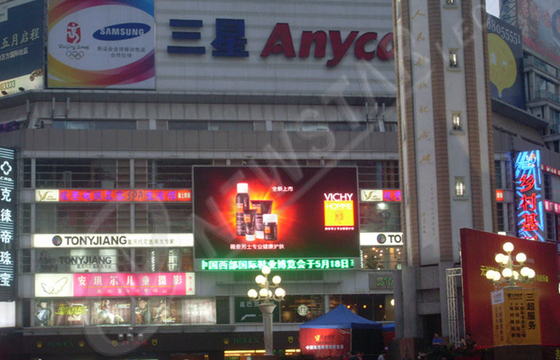

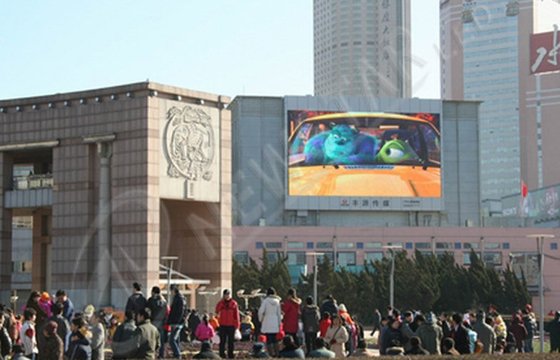

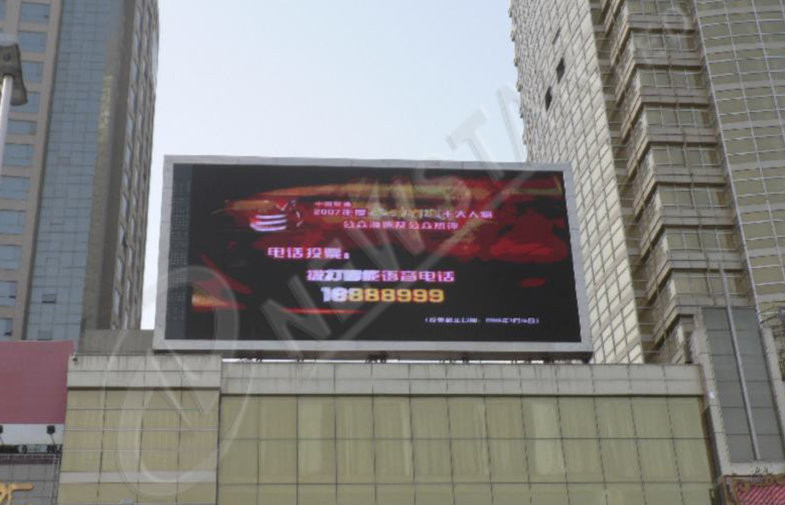

DIP Outdoor Advertising LED Display High Brightness

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  DIP Outdoor Advertising LED Display High Brightness Get Best Price

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Newstar-LED
Certification: CE, RoHS, UL, FCC, ISO
Model Number: NS-OR-DD-P20
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc/ 1 sqm.
Price: US $1,000-2,000 /sqm.
Packaging Details: Flight case /Fumigation-Free wooden case
Delivery Time: 8-25days after received the payment
Payment Terms: T/T
Supply Ability: 2000 Square Meter/Square Meters per Month
Detailed Product Description
Tube Chip Color: Full Color Pixel Configuration: 1R1G1B
Pixel Pitch: 20mm Product Name: Full Color Outdoor Advertising Led Display/advertising Led Display
Protection Ratings: IP65(Front Side );IP54(Back Side) Use: Outdoor
High Light:

outdoor led advertising signs

,

outdoor led display boards



Quick Detail:



1. Stubborn structure design

2. Front Side IP65, Back Side IP54

3. 2 years warranty, FREE maintenance service.

4. CE & Rohs Certified



High Brightness DIP LED Advertising Screens , IP65 P20 Outdoor LED Billboard 1R1G1B





Description:



1. High Brightness

More than 6500nits. Viewer can view from a far distance.

2. High viewing angle

110°(Horizontal )/45°(Vertical )

3. Special Structure design for water-proof, dust-proof, moisture-proof, and anti-static electric

4. High Quality and Reliability

Our many outdoor screens have been used by our clients around the world for 3-5 years and rarely

product issues are called.


Applications:



Stadium inside and outside such as football pitch, baseball, basketball etc



Specifications:



1. Outdoor LED Display Module

Module Size (W*H)

320mm*160mm

Pixel Configuration

1R1G1B

Pixel Pitch

20mm

     Resolution (W*H)

16 dots*8 dots

Pixel Density

2500 dots/㎡

LED Type

DIP



2. Outdoor LED Display Cabinet

Cabinet Size (W*H)

1280mm*960mm

Module Qty

18 pcs

  Cabinet Resolution (W*H)

96 dots*48 dots

Cabinet Pixel

4608

Weight

60kg/ Cabinet

Area

1.23㎡

Average Power Consumption

350w/㎡

Max Consumption

1000W/m2



3. Methods for Quality Assurance

a. Aging



b. Waterproof test



4. DIP Outdoor LED Display Technical Parameter

Model No.

NS-IR-DS-P20

Pixel Pitch

20mm

Module Size

320mm×160 mm

Module Resolution(Pixel)

16dots×8dots

Pixel Density

2500dots/m2

LED Type

DIP

Pixel Configuration

1R1G1B

Wavelength (R.G.B)

R:625±2nm G:525±2nm B:470±2nm

Drive Mode

Static

Cabinet Size

1280×960×135mm

Cabinet Resolution

96dots×48dots

Brightness

≥6500 cd/m2

Contrast

≥ 4000:1

Viewing Angle

110°(Horizontal )/45°(Vertical )

Best Viewing Distance

15m

Grey Scale

10bits/1024levels

Color Capability

16777216

Color Temperature

5000-9300K

Maximum Power Consumption

1000W/m2

Average Power Consumption

350W/m2

Working Voltage

AC 220V/110V s±15% 50-60 HZ

Frame Frequency

60-85 HZ

Refresh Frequency

240 - 1000HZ

Brightness Correction

Pixel, Module, Cabinet Correction

Operating Temperature

Static:-40°C ~+85°C Working:-20~+65°C

Operating Humidity

10-90% RH

LED Lifespan

100,000 hours

MTBF

≥50,000 hours

Computer Operation System

Win 98/ Win XP/ Win 2000

Video Signal Input

RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite

Video Signal Output

RF, S-Video, GB, RGBHV, YUV, YC etc.

Graphics Card

DVI Graphics Card

Control Distance

UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km

Control System

LED studio 10.0

Software

LINSN / Nova/ DB-STAR

Waterproof Level

IP65

Installation

Wall mount, hung and stand structure

Out of Control Rate

0.01 %



5. Factory Equipment



Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.



6. Package

Flight case and Fumigation-Free wooden case



7. Control System Connection



8. Competitive Advantage:

1. 24/7 Online support service

2. Free onsite maintenance / Year

3. Solution design

4. Free online training any time

5. High quality raw material used like neutrik flight connector, MBI IC etc.
