SMD 3 in 1 Advertising Outdoor Led Display Video Wall Panels P10 , Energy Saving
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| LED Type: | SMD3535 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Pixel Pitch: | 10mm | Product Name: | Led Display Panel/advertising Led Displays |
| Protection Ratings: | IP65 | Tube Chip Color: | Full Color |
| High Light: | outdoor led display boards,outdoor advertising led screen |
||
SMD 3 in 1 Advertising Outdoor Led Display Video Wall Panels P10 , Energy Saving
Quick Detail:
1. ≤1mm surface level up, smooth video
2. Perfect quality and stability, 24/7 running
3. Front or Rear Access Service
4. 2 years warranty
5. Long lifespan up to 100,000 hours
6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
Full Color Outdoor Advertising LED Display Panel P10 IP65 , Energy Saving
Description:
1. With good lightening accordance and no mosaic.
2. Can play different formats of image files, flash,WAV/MIDI
3. Hign brightness, and can be adjusted to meet the requirements of costomers.
4. Better viewing effect because of using the real pixels instead of virtual pixels.

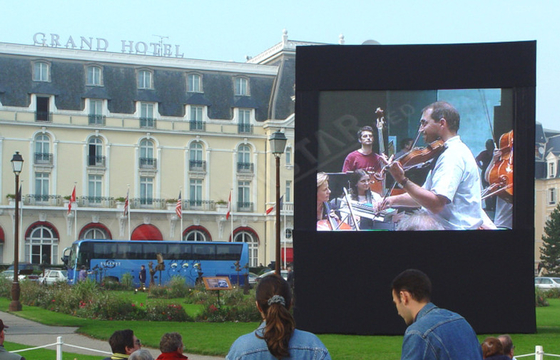

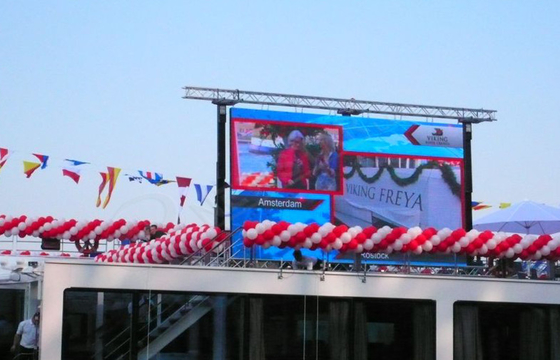

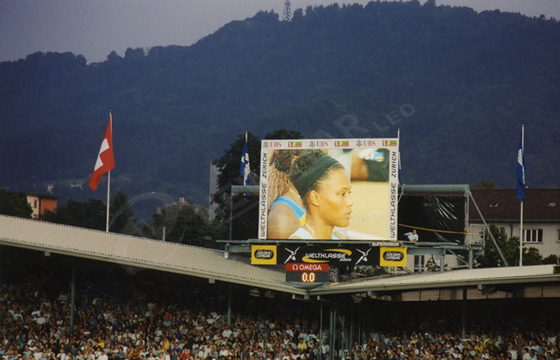

Applications:
Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,
shopping malls, railways, airports, harbors, etc;
Specifications:
1. Indoor LED Display Technical Parameter
|
Model No. |
NS-OR-DS-P10 |
|
Pixel Pitch |
10mm |
|
Module Size |
160mm×160 mm |
|
Pixel Density |
10000dots/m2 |
|
LED Type |
SMD 3 in 1 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
960×960×135mm |
|
Cabinet Resolution |
96dots×96dots |
|
Brightness |
≥7500 cd/m2 |
|
Contrast |
≥ 2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
8m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
825W/m2 |
|
Average Power Consumption |
280 W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C ~+85°C Working:-20~+65°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LED studio 10.0 |
|
Software |
LINSN OR DB-STAR |
|
Waterproof Level |
IP65 |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
2. Outdoor LED Display Module
|
Dimensions (w x h) |
160mmx160mm |
Resolution (w x h) |
32 x 16 |
|
Pixel pitch |
10mm |
Pixel Density |
10000/㎡ |
|
Pixel Configration |
1R,1G,1B |
SMD3535 |
|
3. Outdoor LED Display Cabinet
|
Dimensions(w x h x d)(mm) |
960x960 |
Module Quantity |
18 |
|
Physical Resolution (w x h) |
96 x 96 |
Physical Pixels (total) |
9216 |
|
Weight/Panel (kgs) |
50 |
Material |
Cold rolled steel |
|
Average Power/sqm (watts) |
280 |
Max Power/sqm(watts) |
825 |
4. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. Onsite installation instruction and regular inspection
