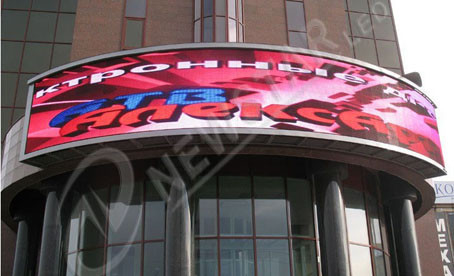

1R1G1B P10 Flexible LED Display Outdoor With Brilliant Color

Large Image : 1R1G1B P10 Flexible LED Display Outdoor With Brilliant Color Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-OR-DD-P10

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-2,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

Product Name:	Led Display Signs/flexible Led Screen	Pixel Pitch:	10mm
Pixel Configuration:	1R1G1B	Tube Chip Color:	Full Color
Use:	Outdoor	LED Type:	3mm Oval Lamp
High Light:	flexible led signs , flexible led screen

Quick Detail:

1. ≤1mm surface level up, smooth video

2. Long lifespan up to 100,000 hours

3. High brightness: >6000cd/㎡

4. IP65 Ruggedness, all-weather qualified

5. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION

6. Perfect quality and stability, 24/7 running

1.R1G1B P10 Flexible LED Display Outdoor With Brilliant Color

Description:

1. Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light;

2. Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle

at this range, no picture change, no color excursion;

3. High intensity and can be adjusted, so can meet the request of the customers according the application

environment;

4. To pictures and character, have clear, exquisite and real display effect;

5. Can repair each led lamps, so the cost of maintain is lower, and easy to repair.

Applications:

Ideal for dazzling different events, such as Stage, Concert, Fashion Show, Wedding, Conference, Building,

Hotel, Club & Bars, Festival, etc.

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	NS-OR-DD-P10
Pixel Pitch	10mm
Module Size	160mm*160mm
Module Resolution (W*H)	16 dots*16 dots
Pixel Density	10000 dots/ ㎡
LED Type	3mm Oval Lamp
Pixel Configuration	1R1G1B
Wavelength (R.G.B)	R:625±2nm G:525±2nm B:470±2nm
Drive Mode	Dynamic 1/4 Duty Constant Current
Cabinet Size	960×640×150mm
Cabinet Resolution	96dots×64dots
Brightness	≥6000cd/㎡
Contrast	≥2000:1
Viewing Angle	110°(Horizontal )/45°(Vertical )
Best Viewing Distance	10m-300m
Grey Scale	10bits/1024levels
Color Capability	16777216
Color Temperature	5000-9300K
Maximum Power Consumption	1000 W/m2
Average Power Consumption	350 W/m2
Working Voltage	AC 220V/110V s±15% 50-60 HZ
Frame Frequency	60-85 HZ
Refresh Frequency	240 - 1000HZ
Brightness Correction	Pixel, Module, Cabinet Correction
Operating Temperature	Static:-40℃~+85℃Working:-20~+65℃
Operating Humidity	10-90% RH
LED Lifespan	100,000 hours
MTBF	≥50,000 hours
Computer Operation System	Win 98/ Win XP/ Win 2000
Video Signal Input	RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output	RF, S-Video, RGB, RGBHV, YUV, YC etc.
Graphics Card	DVI Graphics Card
Control Distance	LINSN / NOVA / DB-STAR
Software	LED studio 10.0
Waterproof Level	IP65(Front Side), IP54 (Back Side
Installation	Wall mount, hung and stand structure
Out of Control Rate	0.01 %

2. Outdoor LED Display Module

Module Size (W*H)	160mm*160mm	Pixel Configuration	1R1G1B
Pixel Pitch	10mm	Resolution (W*H)	16 dots*16 dots
Pixel Density	10000 dots/㎡	LED Type	3mm Oval Lamp

3. Outdoor LED Display Cabinet

Cabinet Size (W*H)	960mm*640mm	Module Qty	24 pcs
Cabinet Resolution (W*H)	96 dots*64 dots	Cabinet Pixel	6144
Weight	50 kg/ Cabinet	Area	0.6144㎡
Average Power Consumption	300w/㎡	Max Consumption	1000 W/m2

4. Methods for Quality Assurance

a.Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. High Quality and High performance

2. Long Life Span

3. High Cost Effective

4. Free maintenance service

5. Front/Rear access Available
