HD Ultra Thin Indoor SMD LED Display Resolution , Led Advertising Screen Panel

Large Image : HD Ultra Thin Indoor SMD LED Display Resolution , Led Advertising Screen Panel Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	LS-7.2

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-3,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

Product Name:	Die Casting Led Display/led Display Signs	Pixel Pitch:	3.91mm
Pixel Configuration:	1R1G1B	Tube Chip Color:	Full Color
Use:	Indoor	LED Type:	SMD3528
High Light:	led advertising displays , led video wall display

HD Ultra Thin Indoor SMD LED Display Resolution , Led Advertising Screen Panel

Quick Detail:

1. Seamless assembly- Min 0.1mm cabinets gap

2. High Precision- Tolerance ≤0.2mm

3. Light Weight: 8KG/panel ; Ultra Thin: 83mm thickness

4. Waterproof Level:IP41

5. Super light and can be installed by one person

6. The rear cover's color can be customized

HD P3.91 SMD3528 Die-Casting LED Display , Ultra Thin LED Display

Description:

1. Quick Lock Design System

Enables quick installation and dismantling for large LED display— labor cost saved

2. No Fan Design:

Nature cool system design makes the LED display be more environmental and energy saves

3. Multi Color Options

The rear cover's color can be customized, choose your favorite color.

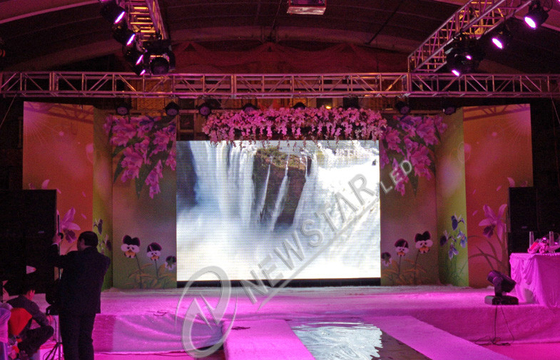

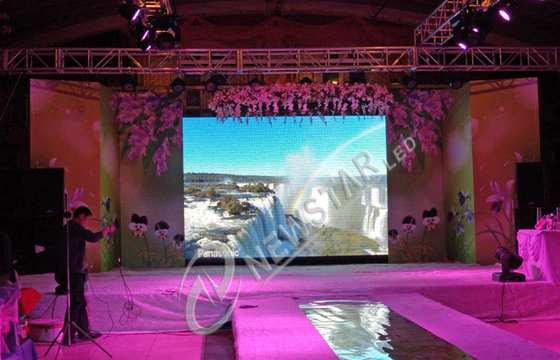

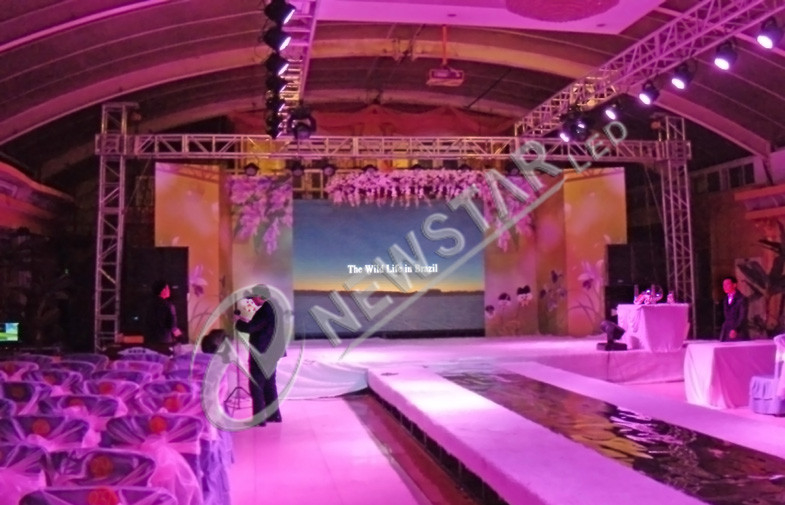

Applications:

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as

banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,

shopping malls, railways, airports, harbors, etc;

Specifications:

1. Indoor LED Display Technical Parameter

Model No.	LS7.2
Pixel Pitch	7.2mm
Module Size	288*288mm
Module Resolution(pixels)	40*40
Pael Size	576mm×576mm
Panel Resolution(pixels)	144×144
Pixel Configuration(RGB)	1R1G1B
Pixel Density(pixels/m2)	62500
Brightness(cdm2)	1800
Best Viewing Distance(m)	4-100
Max.Power Consumption(W/m2)	1350
Waterproof Level	IP41
Vavelength	R 620-625 G 520-525 B 470-475
LED SPEC	2020
Viewing Angle	140°(H)/60°(V)
Operating Tempreture	–20~50°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	≥300HZ
Grey Level(colors)	16.7million
MTBF	≥50000 hours
Lifespan	≥100000Hours
Working Voltage	220V±15% OR 110V±15%
Drive Mode	Constant 1/12
Graphics Card	DVI Graphics card
Video Signal	RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System	LINSN
Software	LED studio 10.0
Installation	Wall mount, hung and stand structure

2. Indoor LED Display Module

Dimensions (w x h)	288mmx288mm	Resolution (w x h)	40 x 40
Pixel pitch	7.2mm	Pixel Density	25600/㎡
Pixel Configration	1R1G1B 3 IN 1	SMD3528

3. Indoor LED Display Cabinet

Dimensions(w x h x d)(mm)	576x576x83	Module Quantity	4
Physical Resolution (w x h)	80 x 80	Physical Pixels (total)	6400
Weight/Panel (kgs)	8	Material	Aluminum
Average Power/sqm (watts)	330	Max Power/sqm(watts)	900

4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

6. Control System Connection

7. Competitive Advantage:

1. 24/7 Hours online Remote Support

2. Provide best plan and PCB design

3. Free factory training

4. 2 years’ warranty with free repair service

5. Onsite installation instruction and regular inspection
