Commercial DIP P20 Outdoor Full Color LED Display Signs for Advertisement
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Tube Chip Color: | Full Color | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Pixel Pitch: | 20mm | Product Name: | Full Color Outdoor Advertising Led Display/advertising Led Display |
| Protection Ratings: | IP65(Front Side );IP54(Back Side) | Use: | Outdoor |
| High Light: | outdoor led display boards,outdoor advertising led screen |
||

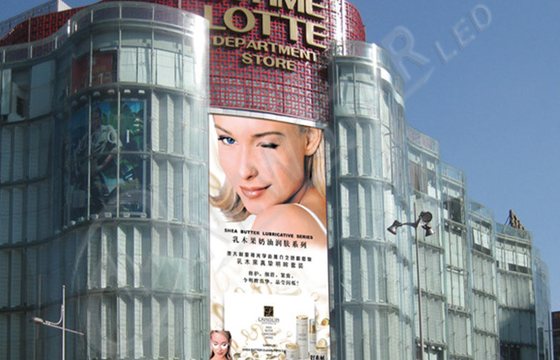

Commercial DIP P20 Outdoor Full Color LED Display Signs for Advertisement
Quick Detail:
1. Front Side IP65, Back Side IP54
2. ≤1mm surface level up, smooth video
3. CE & RoHS Certified
4. 2 years warranty, FREE maintenance service.
5. High brightness: >6500cd/㎡
6. Best consistency with signal input, vivid color
DIP P20 Outdoor Full Color LED Display Signs for Advertisement, 6500nits 16dots×8dots
Description:
1. High Quality and Reliability
Our many outdoor screens have been used by our clients around the world for 3-5 years and rarely
product issues are called.
2. Waterproof and 2 Year Warranty
Water Proof IP65 and 2 year warranty. LED display can work in all-weather condition very well. CE & Rohs
approved
3. High Brightness
More than 6500nits. Audience can view from a far distance.
Applications:
Stadium inside and outside such as football pitch, baseball, basketball etc
Specifications:
1. DIP Outdoor LED Display Technical Parameter
|
Model No. |
NS-IR-DS-P20 |
|
Pixel Pitch |
20mm |
|
Module Size |
320mm×160 mm |
|
Module Resolution(Pixel) |
16dots×8dots |
|
Pixel Density |
2500dots/m2 |
|
LED Type |
DIP |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Static |
|
Cabinet Size |
1280×960×135mm |
|
Cabinet Resolution |
96dots×48dots |
|
Brightness |
≥6500 cd/m2 |
|
Contrast |
≥ 4000:1 |
|
Viewing Angle |
110°(Horizontal )/45°(Vertical ) |
|
Best Viewing Distance |
15m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1000W/m2 |
|
Average Power Consumption |
350W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C ~+85°C Working:-20~+65°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LED studio 10.0 |
|
Software |
LINSN / Nova/ DB-STAR |
|
Waterproof Level |
IP65 |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
2. Outdoor LED Display Module
|
Module Size (W*H) |
320mm*160mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
20mm |
Resolution (W*H) |
16 dots*8 dots |
|
Pixel Density |
2500 dots/㎡ |
LED Type |
DIP |
3. Outdoor LED Display Cabinet
|
Cabinet Size (W*H) |
1280mm*960mm |
Module Qty |
18 pcs |
|
Cabinet Resolution (W*H) |
96 dots*48 dots |
Cabinet Pixel |
4608 |
|
Weight |
60kg/ Cabinet |
Area |
1.23㎡ |
|
Average Power Consumption |
350w/㎡ |
Max Consumption |
1000W/m2 |
4. Methods for Quality Assurance
a. Aging
b. Waterproof test
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 24/7 Online support service
2. Free onsite maintenance / Year
3. Solution design
4. Free online training any time
5. High quality raw material used like neutrik flight connector, MBI IC etc.
