P10 Lightweight Outdoor Transparent LED Screen Curtain For Events
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Transparent Led Display/led Display Signs | Pixel Pitch: | 10mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B | Tube Chip Color: | Full Color |
| Use: | Outdoor | Protection Ratings: | IP65(Front Side );IP54(Back Side) |
| High Light: | transparent screen display,transparent led display |
||
Quick Detail:
1. Lightweight :< 8.5KG/panel. Ultra thin: 95mm thickness
2. Waterproof Level: IP65(Front Side), IP54 (Back Side)
3. High brightness: >6000cd/㎡
4. CE,CCC,RoHS,UL,ISO9001
5. Made by high quality aluminum material
6. Cabinet connection angle can be adjusted by -15 degree to +15 degree
P10 Lightweight Outdoor Transparent LED Screen Curtain For Events
Description:
1. Light Weigh & Ultra Thin
Made by high quality aluminum material, one cabinet only weights 8.5 KG. It makes installation job and
delivery more comfortable and convenient. 95 mm thickness saves not only space for delivery but also
installation.
2. High brightness & Waterproof
Brightness reaches 6000nits, IP65. It is perfect to be used for both indoor and outdoor.
3. Angle Adjustment
Cabinet connection angle can be adjusted by -15 degree to +15 degree. This allows you shape arc
shapes.
4. Fast Lock System & No Fan Design
Easy to install and dismantle: an average worker can finish 70 panels per hour. Natural cool system design
and good heat dissipation.
Applications:

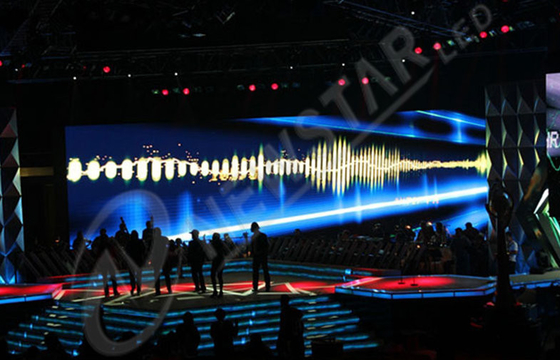

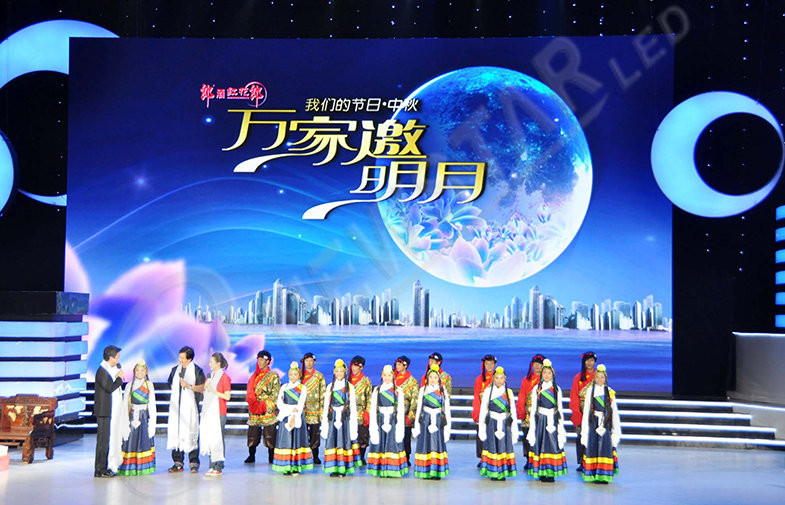

Events, Rental, Show, Exhibition, Stage, Entertainment, Concerts
Specifications:
1. WS10 Technical Parameter
|
Model No. |
WS10 |
|
Pixel Pitch |
10.417mm |
|
Module Size |
500mm*83.33mm |
|
Module Resolution (W*H) |
48 dots*8 dots |
|
Pixel Density |
9216 dots/ ㎡ |
|
LED Type |
SMD 3535 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
500×500×95mm |
|
Cabinet Resolution |
48dots×48dots |
|
Brightness |
≥6000cd/㎡ |
|
Contrast |
≥2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
7m-300m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1500 W/m2 |
|
Average Power Consumption |
700 W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
-40~+65℃ |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, RGB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
LINSN / NOVA / DB-STAR |
|
Software |
LED studio 10.0 |
|
Waterproof Level |
IP65(Front Side), IP54 (Back Side) |
|
Installation |
hung and stand |
|
Out of Control Rate |
0.01 % |
2. 10mm LED Curtain Module
|
Module Size (W*H) |
500mm*83mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
10.417mm |
Resolution (W*H) |
48dots*8 dots |
|
Pixel Density |
9216dots/㎡ |
LED Type |
SMD 3535 |
3.10mm LED Curtain Cabinet
|
Cabinet Size (W*H) |
500mm*500mm |
Module Qty |
6 pcs |
|
Cabinet Resolution (W*H) |
48 dots*48dots |
Cabinet Pixel |
2304 |
|
Weight |
8.5kg/ Cabinet |
Area |
0.25㎡ |
|
Average Power Consumption |
700w/㎡ |
Max Consumption |
1500 W/m2 |
4. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b.Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
6. Package
Flight case or Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 24/7 Online support service
2. Free onsite maintenance / Year
3. Solution design
4. Free online training any time
5. High quality raw material used like Neutrik flight connector, MBI IC etc.
