High Resolution Indoor SMD LED Display Boards , Stage Background LED Screen

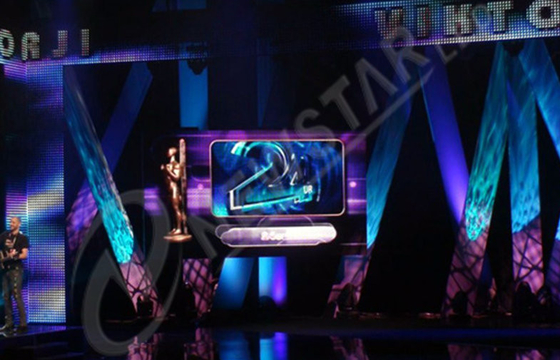

Large Image : High Resolution Indoor SMD LED Display Boards , Stage Background LED Screen Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	LS-5

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-3,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

Product Name:	Die Casting Led Display/led Display Signs	Pixel Pitch:	5.21mm
Pixel Configuration:	1R1G1B	Tube Chip Color:	Full Color
Use:	Indoor	Protection Ratings:	IP21
High Light:	led advertising displays , led video wall display

High Resolution Indoor SMD LED Display Boards , Stage Background LED Screen

Quick Detail:

1. Bravo contrast ratio, high resolution/high definition

2. Super light, then it can be installed by one person

3. Super consistency and no mosaic

4. Other Product Models: P3.91mm, P4.46mm, P5.21mm, P6.25mm.

5. CE,CCC,RoHS,UL,ISO9001

6. Only weight :8KG/panel. thickness less than 85mm

P5.21 SMD Slim Rental LED Display , Stage Background LED Screen

Description:

1. Super Thin Design

Thickness less then 85mm, with this slim design, can make you work easier.

2. Light Weight

One Cabinet only weights 8 KG, 32KG for one square meter.

3. Fast and simple Assembly

No tools needed, one person can install at least 70 cabinets per hour. One person can finish the whole

process alone.

Applications:

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as

banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,

shopping malls, railways, airports, harbors, etc;

Specifications:

1. Indoor LED Display Technical Parameter

Model No.	LS5
Pixel Pitch	5.21mm
Module Size	250*250mm
Module Resolution(pixels)	48*48
Panel Size	500mm×500mm
Panel Resolution(pixels)	96×96
Pixel Configuration(RGB)	1R1G1B
Pixel Density(pixels/m2)	36864
Brightness(cdm2)	2000
Best Viewing Distance(m)	6-100
Max.Power Consumption(W/m2)	1350
Waterproof Level	IP21
Wavelength	R 620-625 G 520-525 B 470-475
LED SPEC	2020
Viewing Angle	140°(H)/60°(V)
Operating Temperature	–20~50°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	≥300HZ
Grey Level(colors)	16.7million
MTBF	≥50000 hours
Lifespan	≥100000Hours
Working Voltage	220V±15% OR 110V±15%
Drive Mode	Constant 1/10
Graphics Card	DVI Graphics card
Video Signal	RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System	LINSN
Software	LED studio 10.0
Installation	Wall mount, hung and stand structure

2. Indoor LED Display Module

Dimensions (w x h)	250mmx250mm	Resolution (w x h)	48 x 48
Pixel pitch	5.21mm	Pixel Density	36864/㎡
Pixel Configuration	1R1G1B 3 IN 1	LED Type	2020 black LED

3. Indoor LED Display Cabinet

Dimensions(w x h x d)(mm)	500x500x83	Module Quantity	4
Physical Resolution (w x h)	96x96	Physical Pixels (total)	9216
Weight/Panel (kgs)	8	Material	Aluminum
Average Power/sqm (watts)	330	Max Power/sqm(watts)	900

4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online remote support

3. Solution and PCB design

4. Free factory training

5. Onsite installation instruction and regular inspection
