R1R1G1B Rental Indoor LED Video Wall , P7.62 Stage LED Display With High Grey Level

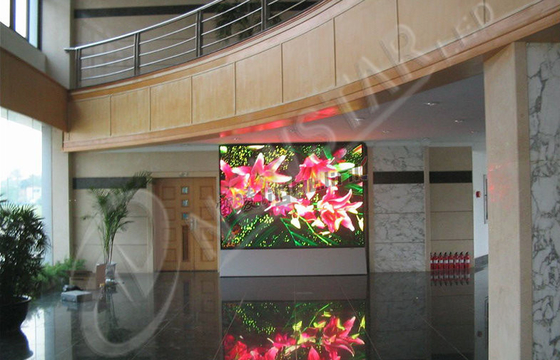

Large Image : R1R1G1B Rental Indoor LED Video Wall , P7.62 Stage LED Display With High Grey Level Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-IR-DS-P7.62

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $9,00-1,500 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

LED Type:	SMD 3528	Pixel Configuration:	1R1G1B
Pixel Pitch:	7.62mm	Product Name:	Led Display Panel/advertising Led Displays
Protection Ratings:	IP65	Use:	Indoor
High Light:	flexible led video screen , indoor advertising led display

R1R1G1B Rental Indoor LED Video Wall , P7.62 Stage LED Display With High Grey Level

Quick Detail:

1. ≤1mm surface level up, smooth video

2. Perfect quality and stability, 24/7 running

3. Front or Rear Access Service

4. 2 years warranty

5. Long lifespan up to 100,000 hours

6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION

Description:

1. Combining several global leading display board control technologies, such as grey level code

technology, brightness control technology, and nonlinearly rectifying technology

2. Modularization, high resolution and high contrast design, vivid dynamic display

3. Arbitrarily exchanging the display or displaying synchronized video

4. Long lifespan, can reach more than 100,000 hours, while the power consumption is lower than one tenth

of lamp or neon

5. Economical maintenance and cost saving

Applications:

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as

banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,

shopping malls, railways, airports, harbors, etc;

Specifications:

1. Indoor LED Display Technical Parameter

Model No.	NS-IR-DS-P7.62
Pixel Pitch	7.62mm
Module Size	244*122mm
Module Resolution(pixels)	16*8
Panel Size	976mm×732mm
Panel Resolution(pixels)	32×16
Pixel Configuration(RGB)	1R1G1B
Pixel Density(pixels/m2)	17222
Brightness(cdm2)	1800
Best Viewing Distance(m)	6-100
Max.Power Consumption(W/m2)	840
Waterproof Level	IP65
Vavelength	R 620-625 G 520-525 B 470-475
LED SPEC	3528
Viewing Angle	140°(H)/60°(V)
Operating Tempreture	–20~50°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	≥300HZ
Grey Level(colors)	16.7million
MTBF	≥50000 hours
Lifespan	≥100000Hours
Working Voltage	220V±15% OR 110V±15%
Drive Mode	Constant 1/8
Graphics Card	DVI Graphics card
Video Signal	RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System	LINSN
Software	LED studio 10.0
Installation	Wall mount, hung and stand structure

2. Indoor LED Display Module

Dimensions (w x h)	244mmx122mm	Resolution (w x h)	32 x 16
Pixel pitch	7.62mm	Pixel Density	17222/㎡
Pixel Configration	1R1G1B 3 IN 1	SMD 3528

3. Indoor LED Display Cabinet

Dimensions(w x h x d)(mm)	976x976x135	Module Quantity	32
Physical Resolution (w x h)	128 x 128	Physical Pixels (total)	16384
Weight/Panel (kgs)	50	Material	Cold rolled steel
Average Power/sqm (watts)	280	Max Power/sqm(watts)	860

4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online Remote Support

3. Solution and PCB design

4. Free factory training

5. Onsite installation instruction and regular inspection
