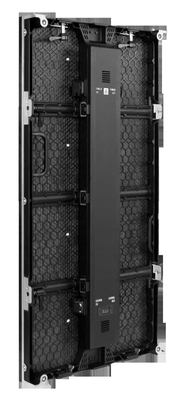

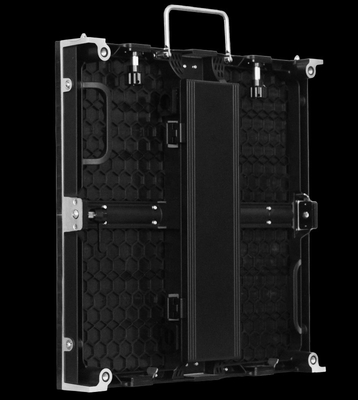

Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station

large.img.alt
small.img.alt small.img.alt

Large Image :  Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station Get Best Price

Product Details:
Place of Origin: China Shenzhen
Brand Name: OEM/ODM
Certification: CE,ROHS,FCC
Model Number: ES4
Payment & Shipping Terms:
Minimum Order Quantity: 1 cabinet
Price: Based on quantity
Packaging Details: Flight case, wooden case,carton etc
Delivery Time: 20-25 days
Payment Terms: T/T, L/C, Western Union,Paypal
Supply Ability: 1000 sqm per month
Detailed Product Description
Pixel Pitch: 4.8mm LED Type: SMD2020
LED Chip: Epistar IC: MBI5124
Driving Mode: 1/16 Refresh Rate: ≥2000Hz
Brightness: ≥1500cd/㎡ PCB: 4 Layers
Cabinet Material: Diecasting Aluminum Module Size: 250x250mm
Cabinet Size: 500x500mm Cabinet NW: 9KG
Pixel Density: 65410pixels/m2
High Light:

outdoor rental led display

,

outdoor led video display

           Indoor Lightweight Slim Rental LED display SMD 4.8mm for TV station



   With unique and market-leading seamless technology, Newstar 4.8mm effective control the video wall face precision down to 0.05mm. Your image & video will look more smooth, fluent and harmonious.



Not only 4.8mm, but also 3.91mm, 5.682mm and 6.25mm available. Meanwhile, Newstar have developed the front service version, maintenance will be 90% faster than back service, as no need to remove screws.

Fastest top and side lock design, your assembly and dismantle will be more time and labor saving.



Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 0



The specification



Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 1



Connection: Using Seetronic for main power/signal line and cabinets power/signal line



Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 2



Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 3

The cabinet was designed to convenient connection, for faster installation. The wiring can reference below drawing:



Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 4

Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 5



Installation: easier and faster lock design, hanging installation.



Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 6



Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 7





Install from the middle of hanging bars



Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 8





Project reference



Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 9



Maintenance: Replace the modules, power supplies and receiving cards from back



Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 10



Front service



The modules, power supplies and receiving cards also can be replaced from front, without spending time on removing screws, maintenance will be 90% faster than back service.



Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 11





Decrease LED Defect Rate: Top soldering technology + AOI inspection



In Newstar, every PCB will be inspected by the AOI machine, instead of no inspection or inspected by eyes. Good soldering technology and strict inspection give LED screens strong stability and decrease the LED defect rate.



Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 12





Brightness & RGB balance auto-calibration is available after module replacement



Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 13





Screen face precision < 0.05mm, seamless and no bright line



Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 14





Synchronous control: User only need to use desktop to control the video wall(sending card connect with PC).



Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 15





If customer want to use laptop control, or with other device use together, the video processor will be necessary.



Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 16



The video processor can switch the signal from other device, such as laptop, desktop, camara, DVD, TV...



Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 17





Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 18



Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 19



Indoor Lightweight Slim Rental LED Display SMD 4.8mm For TV Station 20
