P3 Waterproof Outdoor Advertising LED Display High Brightness Led Screen

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  P3 Waterproof Outdoor Advertising LED Display High Brightness Led Screen Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: NEWSTAR
Certification: CE,ROHS
Model Number: FS3
Payment & Shipping Terms:
Minimum Order Quantity: 5sqm
Price: 2238USD/1-100SQM
Packaging Details: Flightcase Size: 1170x730x770MM(10PCS IN 1 CASE)
Delivery Time: 25-30 business days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sqm per month
Detailed Product Description
Pixel Pitch: 3.91mm Material: Die-cast Aluminum
Panel Dimension: 500*500*80mm Panel Wieght: 8.5kg
Module Size: 250*250mm Brightness: 4500nits
IP Rate: IP65 Warranty: 2 Years
High Light:

outdoor led video display

,

outdoor full color led display

Outdoor P3 Waterproof Rental Stage Back Ground LED Display Die-cast Aluminum Panel



Product Features



1.Quick Set up & Dismantle



2.Lightweight and slim



3.Good waterproof function



4.Slinet no fans



Product Images

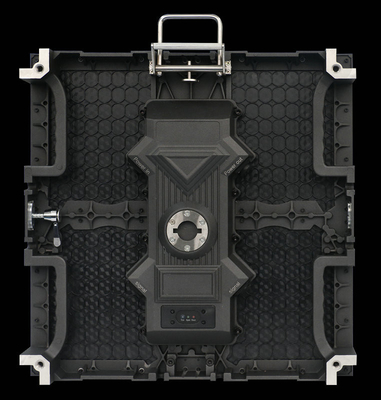

P3 Waterproof  Outdoor Advertising LED Display High Brightness Led Screen 0



Specifications



Cabinet Parameter



Cabinet Size 500*500mm
Cabinet Material Die-casting Aluminum
Cabinet Weight 8.5kg
Cabinet Resolution 128x128dots
Cabinet Protection IP65



Module Parameter



Pixel Pitch 3.91mm
Pixel Configuration 1R1G1B SMD
LED type SMD1921
Module size 250*250mm
Module resolution 64x64dots



Screen Parameter



Pixel Pitch 3.91mm
Driving Mode 1/16
Refresh Rate >2840Hz
Brightness >4500cd/m2
Power Consumption Avg:105W/Panel  Max:300W/Panel
Grayscale 65536level
Viewing Angle(H/V) 140º/140º
Life span 100,000 hours at 50% brightness
IP Rating IP65
Warranty 2 years

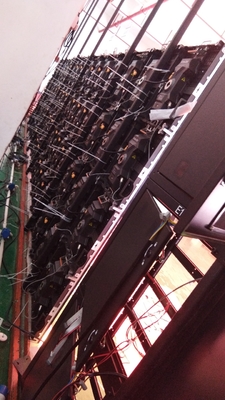

Lighting Test



P3 Waterproof  Outdoor Advertising LED Display High Brightness Led Screen 1



Rental & Stage ----Indoor & Outdoor



Fantasy Series provide an excellent solution to rental client due to its lightweight and slim shape.



Fast and simple setup not only saves installation time but also labor cost saving



Its perfect performance on vivid quality absolutely brings an amazing visual feelings to audiences.



P3 Waterproof  Outdoor Advertising LED Display High Brightness Led Screen 2
