High Definition P3 Indoor Light Weight Rental LED Display 1R1G1B SMD2020
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Cabinet Size: | 576X576mm | Module Size: | 192X192mm |
|---|---|---|---|
| LED Configuration: | 1R1G1B SMD2020 | Cabinet Material: | Aluminum Die-casting |
| Brightness: | 1200nits | Fresh Rate: | 1920Hz |
| IP Rating: | IP31 | Warranty: | 2 Years |
| High Light: | outdoor rental led display,outdoor led video display |
||
P3 Indoor High Definition Light Weight Rental LED Display 576 X 576 mm Die-Cast Aluminum
Specifications
| Parameter | Value | Unit |
| Pixel pitch | 3 | mm |
| Pixel configuration | R,G,B 3in1 | |
| SMD type | 2020 | — |
| Pixels per sq.m. | 111,111 | dot |
| Module Size | 192 x 192 | mm |
| Module Resolution | 64 x 64 | dot |
| Cabinet size (W×H×D) | 576×576x83 | mm |
| Cabinet Resolution | 192 x 192 | dot |
| Pixels per cabinet | 36,864 | dot |
| Cabinet area | 0.3318 | sq.m. |
| Cabinet material | Die Casting Aluminum | — |
| Cabinet weight | 10 | kg |
| Brightness | ≥1500 | nits |
| Viewing angle-H | 140 (+70/-70) | deg. |
| Viewing angle-V | 140 (+70/-70) | deg. |
| Ingress protection | indoor use | — |
| Minimum viewing distance | 3 | m |
| Gray scale | 65536 | level |
| Brightness control | 256 | level |
| Refresh frequency | >3000 | Hz |
| Driving mode | 1/16scan | — |
| Input voltage (AC) | 100 ～ 240 | V |
| Input power frequency | 50 or 60 | Hz |
| Power consumption per sq.m. (max/avg) | 900/300 | W |
| Blind spot rate | ＜1/10000 | — |
| Lifetime at 50% brightness | 100000 | Hour |
| Operating temperature | –25～﹢40 | ℃ |
| Operating humidity | 10％ ～ 90％ | — |
| Signal input format (with video processor) |
AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
— |

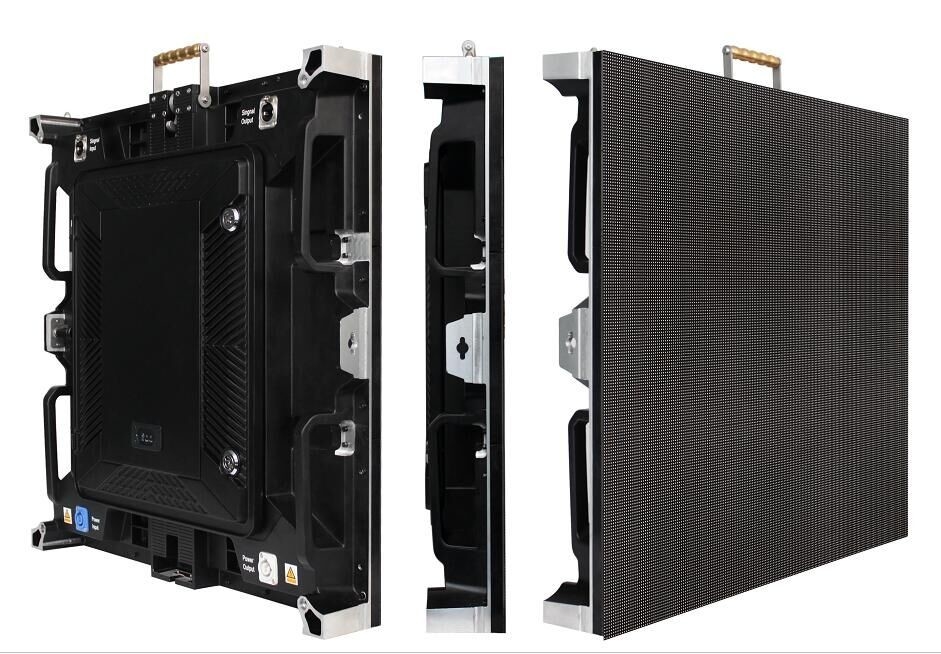

Product Image
Main Features
1. Lightweiht only 10kg/panel
2. Quick set-up and dismantle as the fast lock design.
3. Small pixel pitch 3mm deliver Super clear vision
4.Silent no fan desin

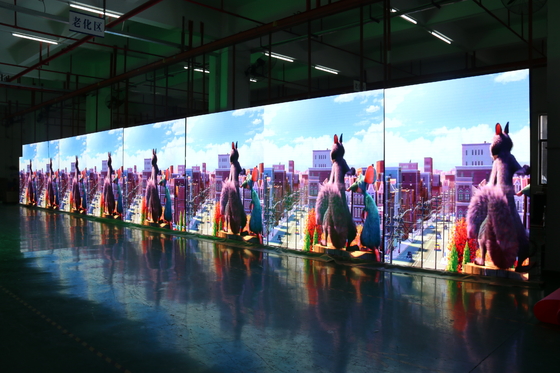

Lighting test

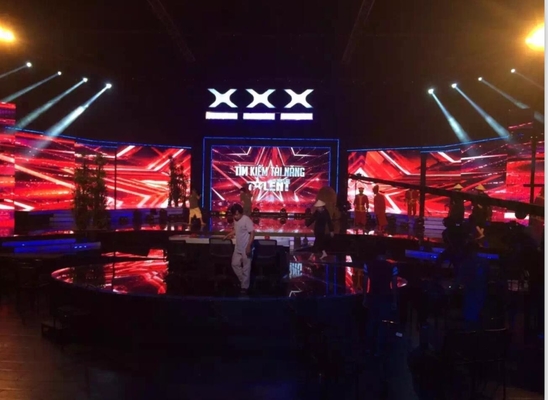

Application
Widely used at the TV Studio,exhibition,club,concerts etc. Its perfect peformance on vivid quality absolutely brings an amazing visual feelings to audiences.
