Full Color SMD 2020 P4 Rental LED Display LED Video Wall 576 X 576mm
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Cabinet Dimension: | 576*576mm | Module Size: | 288*288mm |
|---|---|---|---|
| Led Tube Chip: | Full Color | Led Type: | SMD 2020 Black LED |
| Panel Weight: | 9KG | IP Rating: | IP3X |
| Usage: | Indoor | Warranty: | 2 Years |
| High Light: | outdoor rental led display,outdoor led video display |
||
P4 576 x 576mm Rental LED Display Aluminum Die-casting LED Video Wall
Product Features
1. High quality LED chip Epistar brand, support pixel - pixel correction ;
2. Die-casting aluminum panel , ultra thin and lightweight ;
3. Fanless design and noiseless power supply ;
4. SMD technology , wide viewing angle (H >140°H ; V >140°W) and high flatness ;
5. Driving IC MBI 5124 , low brightness and high grey level , high refresh rate ;
6. Fastly built-up and dismantle with fast spring locks on each panel .
Technical Specifications
| Model No. | LS4 |
| Pixcel pitch | 4mm |
| Pixel density /sq.m | 62500pixels |
| LED configuration | 1R1G1B SMD 2020 |
| Module size | 288mm x 288 mm |
| Cabinet size | 576mm x 576mm |
| Panel resolution | 144x 144 dots |
| Scan way | 1/18 |
| Refresh rate | 2000Hz |
| Panel weight | 9 kg |
| Brigtness | 1000 CD / M2 |
| Max. power consumption | 600 W/Panel |
| Avg. power consumption | 210 W/ Panel |
| Input voltage | AC 110-220 V (+-5 %) |
| Blind dot rate | ≤0.01% |
| IP rating | IP3X |
| Panel material | Die casting aluminum |
| Working temperature | -20- + 60 ℃ |
| Working humidity | 10-90% RH |
| Driving IC | MBI 5124 |
| Led chip | Epistar |
| Lifetime | 100,000h |
| Certification | CE,ROHS |
| Control system | Novastar / Linsn |
| Operating system | Windows / Me / 200 NT/XP |
| Minimum viewing distance | 6 m |
| Frame rate | 50 - 60 Hz |
| Warranty | 2 years |

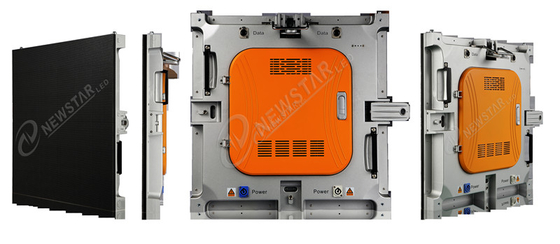

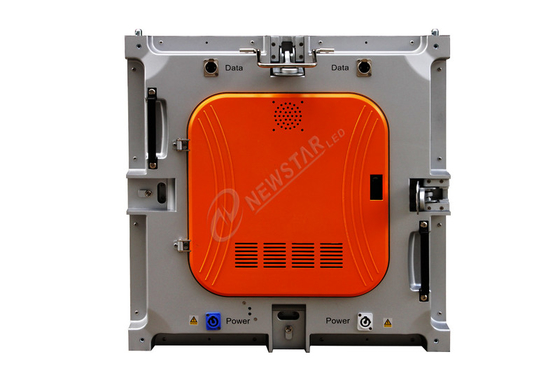

Cabinet Image
So far,the color of backcover orange/blue/black/blue is available.
Product Advantage
1.Featured like high precision,lightweight,ultra thin and die casting aluminum.
2.Light Series offer excellent contrast and image quality.
3.Robust structure and high quality materials allow LED screen to have amazing durability.
Project Reference
Concerts
Packing by flight case
