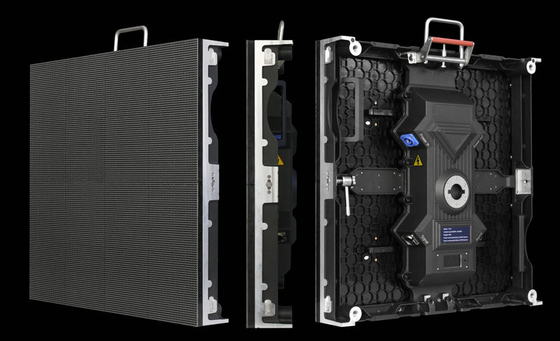

P3 Slim stage led screen Rental Super Clear Vision Aluminum Die casting Cabinet
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel Pitch: | 3.91mm | Led Tube Chip: | 1R1G1B |
|---|---|---|---|
| Led Type: | SMD2020 Black | Panel Weight: | 18.7LBS |
| Cabinet Size: | 19.69"x 19.69"*2.95" | Brightness: | 1200nits |
| IP Rating: | IP3X | Warranty: | 2 Years |
| High Light: | outdoor full color led display,outdoor led video display |
||
Indoor P3 Rental LED Display Super Clear Vision Aluminum Die-casting Stage Screens
Main Features
A.Quick assemble & Dismantle
B.Slim and lightweight
C.High Definition
D.Slient design
E.High precision and uniform
Product Advantages
1.Pure black LEDs are adopted into design,delivering super high definition pictures,videos.
2.Energy saving,slim and lightweight,easy to assemble and dismantle,provides you the best stage performance solutions.
3.Modular design and front service will save much time and your valuable space during your events.
Specifications
Cabinet Parameter
| Cabinet Size | 500*500mm |
| Cabinet Weight | 8.5kg |
| Cabinet Resolution | 128*128dots |
| Cabinet Protection | IP3X |
Module Parameter
| Pixel Pitch | 3.91mm |
| Pixel Configuration | 1R1G1B |
| LED type | SMD2020 |
| Module size | 250*250mm |
| Module resolution | 64*64dots |
Screen Parameter
| Driving Mode | 1/16 |
| Refresh Rate | >2880Hz |
| Brightness | >1200cd/m2 |
| Power Consumption | Avg:105W/Panel |
| Grayscale | 65536level |
| Viewing Angle(H/V) | 140º/140º |
| Life span | 100,000 hours at 50% brightness |
| IP Rating | IP3x |
| Warranty | 2 years |
Control System
| Brand | Nova/Linsn |
| Type | Synchronous/Asychronous |
| Network | LAN/3G/WIFI |
Rental & Stage Application
Fantasy Series are widely used in stage events,TV stations,concerts,and expo events,conferences,live bars,etc.
Package
So far we design 5 cabinets in 1 flight case.Customzed package is accepted.
Indoor pixel pitch still cover the 4.81mm/5.68mm/6.25mm.
