P4.81 Outdoor large led display board Maximum Inner and Out arc 10 Degree

Large Image : P4.81 Outdoor large led display board Maximum Inner and Out arc 10 Degree Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	newstar
Certification:	CE,ROHS,FCC
Model Number:	OES-4

Payment & Shipping Terms:

Minimum Order Quantity:	1SQM
Price:	based on quantity
Packaging Details:	flight case/wooden box
Delivery Time:	25-30workdays after downpayment
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	2500sqm per month

Contact Now

Detailed Product Description

Panel Dimension:	500*1000mm	Panel Weight:	15kg
Module Size:	250*250mm	LED Tube Chip:	Full Color
LED Configuration:	RGB SMD2727	Usage:	Outdoor
IP Rating:	IP65/IP54	Warranty:	2 Years
High Light:	outdoor rental led display , outdoor led video display

P4.81 Outdoor large led display board Maximum Inner and Out arc 10 Degree

Product Advantages

Epoch Series provide an excellent solution to rental client due to its lightweight and slim shape built.Fast and simple setup not only saves installation time but also labour cost saving.Its perfect performance on vivid quality absolutely brings an amazing visual feelings to audiences.Moreover,thanks to its indoor and outdoor design with multi pixel pitches help to achieve a wider range of application.

Main Features

1.Quick Set-up & Dismantle

2.Ultrathin with thickness 75mm

3.High Brightness over 6000nts

4.Good waterproof function with IP65 Rating

5.Silent No fans design with low power consumption

Technical Specifications

Model Number	OES4
Pixel Pitch	4.81mm
Pixel Density/㎡	43,264 dots
LED Configuration	1R1G1B 2727
Module Size	250mm * 250mm
Module Resolution	52 * 52 dots
Panel Dimension (WxHxD)	500100075mm (19.69''39.38''2.95'')
Panel Resolution	104 * 208 dots
Panel Weight	15Kg
Driving Mode	1/13
Refresh Rate	2880Hz
Brightness	≥6000cd/㎡
Power Consumption	Avg:210 W/ Panel Max: 600 W/Panel
Grayscale	65,536 level
Viewing Angle (H/V)	140°/140°
Lifespan	100,000 hours at 50% brightness
Operating Temperature	-40℃~ +60℃
IP Rating	IP65
Control System	Novastar/Linsn

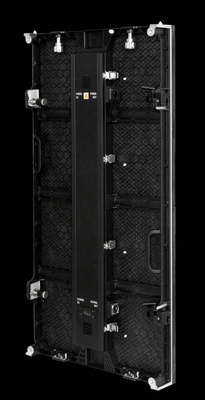

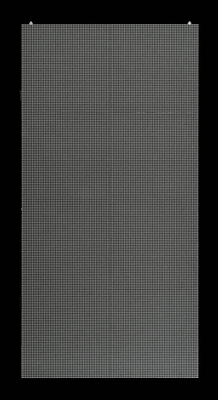

Product Image

Complete View

Regard as the 500*1000mm cabinet,we desin the arc 10degree,it's more convenient to install.

Project reference

Package & shipping

Considering the cabinet design and weight,we recommend you the flightcase packing such as the following image.This is our own packing used in the LDI show 2016 for your reference.You can have your own logo.
