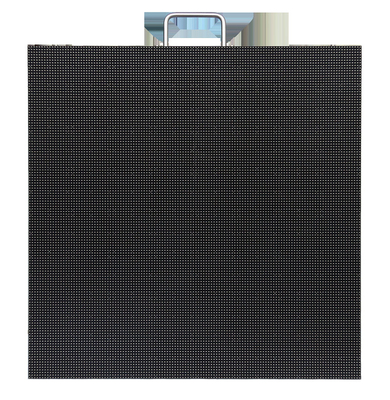

Ultra Thin 1R1G1B SMD2020 75mm Indoor Full Color LED Display Led Panel Module
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Aluminum Die-casting | Panel Size: | 500*500*75mm |
|---|---|---|---|
| Panel Weight: | 8kg | Module Size: | 250*250mm |
| Grayscale: | 65536level | Lifespan: | 100000hrs At 50%brightness |
| IP Rating: | IP3X | Application: | Stage,TV Stations,concerts,expo,conferences,live Bars |
| High Light: | advertising led screens,indoor led display screen |
||
500X500mmPanel Ultra Thin 75mm Aluminum Die-casting Super Clear Vision Indoor Full Color LED Board
Technicals
| Item | Indoor | |||
| Fantasy Series | 3.91mm | 4.81mm | 5.682mm | 6.25mm |
| LED Configuration | 1R1G1B SMD2020 Black | 1R1G1B SMD2020 | 1R1G1B SMD3528 | 1R1G1B SMD3528 |
| Module Size | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm |
| Module resolution | 64*64dots | 52*52dots | 44*44dots | 40*40dots |
| Pixel Density | 65536picels/m2 | 43264picels/m2 | 30976picels/m2 | 25600picels/m2 |
| Brightness | ≧1200cd/m2 | ≧1200cd/m2 | ≧1200cd/m2 | ≧1500cd/m2 |
| Panel Resolution | 128*128dots | 104*104dots | 88*88dots | 80*80dots |
| Power Consumption |
Avg:105w/panel Max:300w/panel |
Avg:105w/panel Max:300w/panel |
Avg:105w/panel Max:300w/panel |
Avg:105w/panel Max:300w/panel |
| Driving Mode | 1/16 | 1/13 | 1/11 | 1/10 |
| Material | Aluminum Die-casting | |||
| Refresh Rate | 2880HZ | |||
| Gray Scale | 65536level | |||
| Viewing Angle(H/V) | 140°/140° | |||
| Panel Size/Weight | 500*500*75mm/8kg | |||
| IP Rating | IP3X | |||
| Operating Temperature | -20℃-60℃ | |||
| Operating Humidity | 10%-90%RH | |||
| Lifespan | 10000hrs at 50% brightness | |||
| Control System | Novastar/Linsn | |||

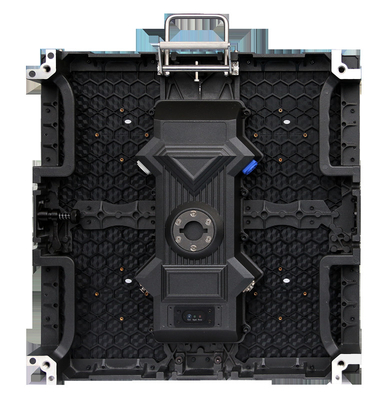

More pictures show the product details
Side lock make the assemble and dismantle more convenient
Label shows the basic product information

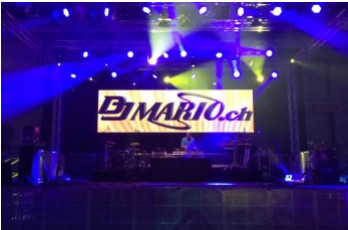

This model are widely used in stage events,TV stations,concerts,and expo events,conferences,live bars,etc.Following image give you a view.Quality is good and the price is moderate,why not try this for your current or future projects?I believe youll receive the most satisfactory goods.
ABOUT NEWSTAR
wHO are we?
Established in 2008,we are a full color LED screen manufacturing specialist in Shenzhen,China.With years' development,we have worked out many states of the art products for our clients.We're please to help our customers to realize their goals through our LED screen.
What we have?
Over 5000 sq.m2 factory area,hundreds of employees,many high-tech machines to composite production lines,experienced R&D team,etc.
What we offer?
Our products cover infoor,outdoor,curtain and curved LED screens.They can be applied in different situations serving for different purposed accordingly.Besides,we are capable of providing customized solution for clients based on their special requirements.
Marketing Philosophy
4C:Customer,Cost,Communication,Convenience
4V::Variation,Versatility,Value,Vibration
Warranty
We offer 2 years' warranty and free replacment or repair to failure from:
1.Module,ventilator,power supply
2.Control system(graphics card,sender,receiver)
3.Cables
4.Software
Any more details,you can skype me,email me or call me.
Skype:kevinsung405_1
Email:Kevin@newstar-led.com
Mobile:008613530871530
