Favo -3 indoor stage Rental LED Display high definition excellent cooling effect
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel Pitch: | 3 Mm | Pixel Density: | 111,111 Pixels /sq.m |
|---|---|---|---|
| LED Type: | SMD 2121 | LED Configuration: | 1R1G1B |
| Refresh Rate: | 1920 Hz | Driving IC: | MBI 5124 |
| Viewing Angle: | 140°/140° | Module Dimension: | 192 Mm X 192 Mm |
| Cabinet Size: | 576 Mm X 576 Mm | Brightness: | 1,400 CD / Sq.m |
| Material: | Die Casting Aluminum | LED Chip: | Epistar |
| Scan Way: | 1/16 | Gray Scale: | 16 Bit |
| IP Rating: | IP31 | Lifespan: | 100,000 H |
| Usage: | Indoor Rental Led Screen | ||
| High Light: | outdoor full color led display,outdoor led video display |
||

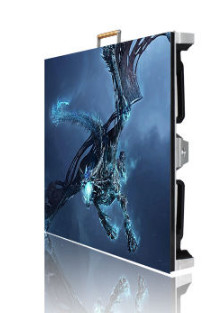

Favo -3 indoor stage Rental LED Display high definition excellent cooling effect
1. Features
1. Die-casting aluminum structure with excellent cooling effect ;

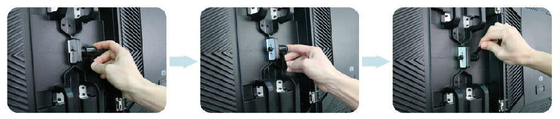

2. Easy to assemble and dismantle with fast locks and humanize handle of artist design ;
3. Seamless, uniform display without any borders or lines ;
4. High contrast ratio and gray level help to achieve excellent display effect ;
5. High stability performance with good vibration resistance cabinet structure ;
6. Can be hoisting with bunch, location pole and vertically mounted with support frame .

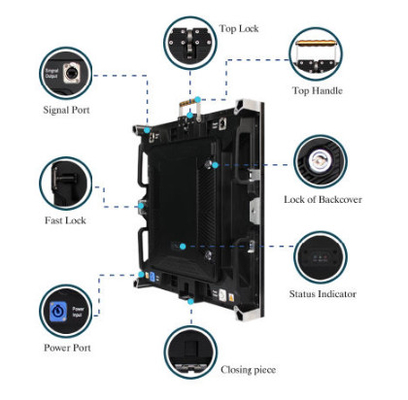

2. Detailed structure of cabinet
3. Technical parameters
| Model No. | Favo-3 |
| Pixcel pitch | 3 mm |
| Pixel density /sq.m | 111,111 pixels |
| LED configuration | 1R1G1B SMD 3528 |
| Module size | 192 mm x 192 mm |
| Cabinet size | 576 mm x 576 mm |
| Panel resolution | 192 x 192 dots |
| Scan way | 1/ 16 |
| Refresh rate | 1,920 Hz |
| Panel weight | 12 kg |
| Brightness | 1,400 CD / sq.m |
| Max. power consumption | 330 W/Panel |
| Avg. power consumption | 110 W/ Panel |
| Input voltage | AC 110-220 V (+-5 %) |
| Blind dot rate | ≤0.01% |
| IP rating | IP31 |
| Panel material | Die casting aluminum |
| Working temperature | -20- + 60 ℃ |
| Working humidity | 10-90% RH |
| Driving IC | MBI 5124 |
| Led chip | Epistar |
| Lifetime | 100,000h |
| Control system | Novastar / Linsn |
| Operating system | Windows / Me / 200 NT/XP |
| Minimum viewing distance | 3 m |
| Frame rate | 50 - 60 Hz |
| Certification | CCC , CE, ROHS ,ETL |
4. Packing by flight case
5. Application
FAVO-3 rental LED Display is widely used in National TV Station center, weddings, Exhibitions, Concerts with excellent palying effect and stable perfomance.
