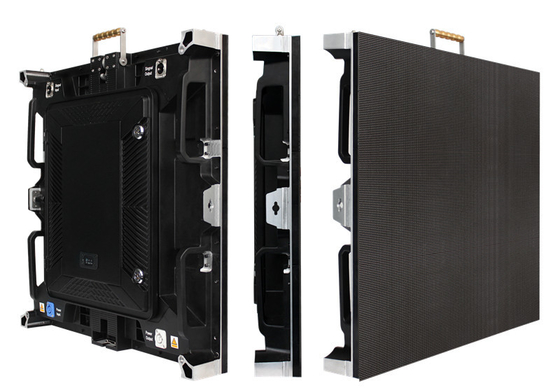

P3 indoor rental slim light weight magnet module led digital display front service fast assemble
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel Pitch: | 3mm | Module Size: | 192 X 192 Mm |
|---|---|---|---|
| Cabinet Size: | 576×576x83mm | Cabinet Material: | Die Casting Aluminum |
| Cabinet Weight: | 10kg | Brightness: | ≥1500 |
| High Light: | outdoor rental led display,outdoor full color led display |
||
P3 indoor rental slim light weight magnet module led digital display front service fast assemble
Features:
1.Fast lock and unlock,one single person can handle all the works from assembly to disassembly to maintenance.
2.Front-accessible and magnetic module design is ideal for fast replacement in rental & staging environment.
3.Modular designed power supply and receiving card support quick maintenance.
4.Climbable panel structure is designed for maintenance when hanging installation.
5.High refresh rate over 3000 Hz produces stunning image performance.
| P3 Indoor rental LED Screen Specification | ||
| Parameter | Value | Unit |
| Pixel pitch | 3 | mm |
| Pixel configuration | R,G,B 3in1 | |
| SMD type | 2020 | — |
| Pixels per sq.m. | 111,111 | dot |
| Module Size | 192 x 192 | mm |
| Module Resolution | 64 x 64 | dot |
| Cabinet size (W×H×D) | 576×576x83 | mm |
| Cabinet Resolution | 192 x 192 | dot |
| Pixels per cabinet | 36,864 | dot |
| Cabinet area | 0.3318 | sq.m. |
| Cabinet material | Die Casting Aluminum | — |
| Cabinet weight | 10 | kg |
| Brightness | ≥1500 | nits |
| Viewing angle-H | 140 (+70/-70) | deg. |
| Viewing angle-V | 140 (+70/-70) | deg. |
| Ingress protection | indoor use | — |
| Minimum viewing distance | 3 | m |
| Gray scale | 65536 | level |
| Brightness control | 256 | level |
| Refresh frequency | >3000 | Hz |
| Driving mode | 1/16scan | — |
| Input voltage (AC) | 100 ～ 240 | V |
| Input power frequency | 50 or 60 | Hz |
| Power consumption per sq.m. (max/avg) | 900/300 | W |
| Blind spot rate | ＜1/10000 | — |
| Lifetime at 50% brightness | 100000 | Hour |
| Operating temperature | –25～﹢40 | ℃ |
| Operating humidity | 10％ ～ 90％ | — |
| Signal input format (with video processor) |
AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
— |
If interest pls send mail to lisa@newstar-led.com,thanks.
