Stage led message board advertising , Epistar led outdoor display screen

Large Image : Stage led message board advertising , Epistar led outdoor display screen Get Best Price

Product Details:

Place of Origin:	Guang Dong, China (Mainland)
Brand Name:	Newstar
Certification:	CCC , CE ,ROHS , ETL
Model Number:	ES-ID-2-3.91

Payment & Shipping Terms:

Minimum Order Quantity:	1 Square Meter
Price:	US $ 100 - 1000 / Square Meter
Packaging Details:	Flight case
Delivery Time:	15-20 days
Payment Terms:	Western Union, MoneyGram, D/A, D/P, L/C, T/T
Supply Ability:	6,000 Square Meters per Month

Contact Now

Detailed Product Description

Pixel Pitch:	3.91mm	Pixel Density:	65,536 Pixels /sq.m
LED Type:	SMD2020 Black Leds	LED Configuration:	1R1G1B
Refresh Rate:	2，880 Hz	Driving IC:	MBI 5124
Viewing Angle:	140°/140°	Module Dimension:	250mm X 250mm
Cabinet Size:	500mm X 1000mm	Brightness:	1200 CD / Sq.m
Material:	Die Casting Aluminum	LED Chip:	Epistar
Scan Way:	1/16	Gray Scale:	16 Bit
IP Rating:	IP31	Lifespan:	100,000 H
Usage:	Indoor Rental LED Display
High Light:	outdoor rental led display , outdoor full color led display

Stage led message board advertising , Epistar led outdoor display screen

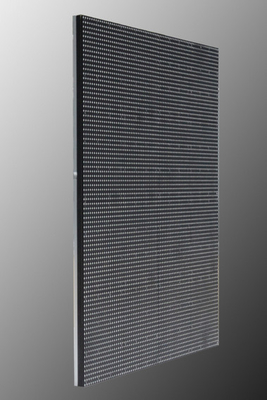

Stage led message board advertising , Epistar led outdoor display screen 0

1.Features

1.Super slim and light, Die casting aluminum 500 x 1000mm cabinet , only 13 kg/pcs ;

3.High flatness , accurate to 0.1mm;

4. Fanless design , natural heat dissipation,and it’s completely quiet;

5. Fast installation and dismantle with fast locks;

6. Front service structure design,with front service tool, you can do the replacing youself easily.

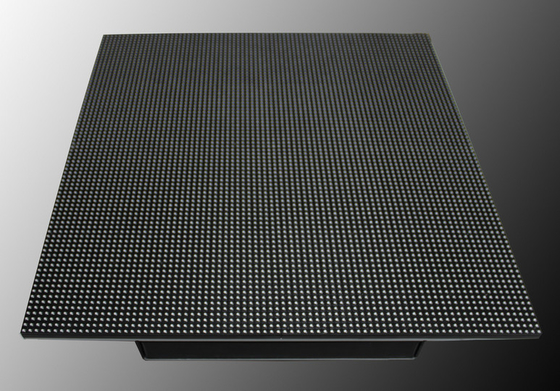

Stage led message board advertising , Epistar led outdoor display screen 1

7. Black SMD leds with high contrast ratio ,excellent performance;

Stage led message board advertising , Epistar led outdoor display screen 2

8. High refresh rate with anti-ghost . Adopted the latest Driver IC , eliminates ghost line ; smooth display image is realized shooting with 1920HZ refresh rate even under 1/2000 shutter professional camera shooting .

Stage led message board advertising , Epistar led outdoor display screen 3

9.Calibration and white Balance Brightness testing ;

10 .Support hanging and Stacking depends on actual requirement.

Stage led message board advertising , Epistar led outdoor display screen 5

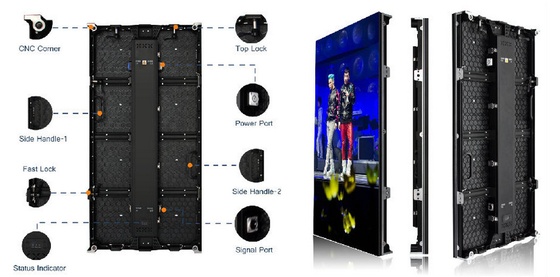

2. Cabinet detailed structure

Stage led message board advertising , Epistar led outdoor display screen 6

3. Technical parameters

Model No.	ES-ID-2-3.91
Pixcel pitch	3.91 mm
Pixel density /sq.m	65,536 pixels
LED configuration	1R1G1B SMD 2020 black leds
Module size	250 x 250 mm
Cabinet size	500 x 1000 mm
Panel resolution	128 x 256 dots
Scan way	1/16
Refresh rate	2,880 Hz
Panel weight	13 kg
Brigtness	1200 CD / sq.m
Max. power consumption	300 W/Panel
Avg. power consumption	105 W/ Panel
Input voltage	AC 110-220 V (+-5 %)
Blind dot rate	≤0.01%
IP rating	IP31
Control system	Novastar/ Linsn
Operating system	Windows/me/200NT/XP
Working humidity	10-90% RH
MTBF	35,000 h
Lifetime	100,000 h
Led chip	Epistar
Driving IC	MBI 5124
Panel material	Die casting aluminum
Frame rate	50-60 Hz

4. Packaging by flight cases

Stage led message board advertising , Epistar led outdoor display screen 7

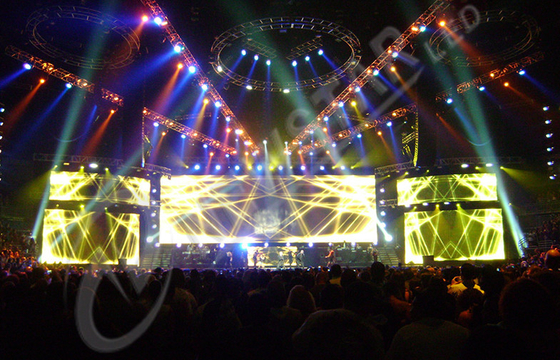

5. Application

Epoch series ES-ID-2-3.91 rental led display is widely used at shows, conference, exhibition, wedding, opening ceremony and promotion activity for stage background.

Stage led message board advertising , Epistar led outdoor display screen 8
