P20 outdoor DIP Front Service led diaplay High brightness ease to maintain

I'm Online Chat Now

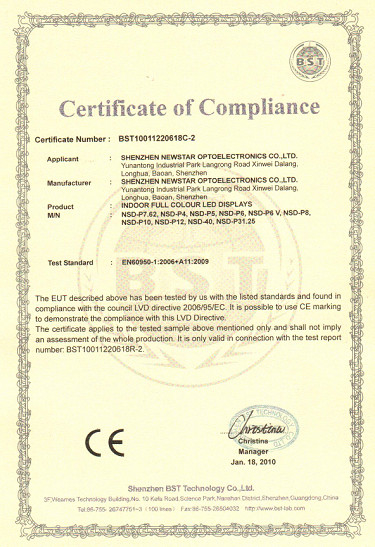

Certification
China Shenzhen Newstar Optoelectronics Co., Ltd certification
China Shenzhen Newstar Optoelectronics Co., Ltd certification
Thanks for checking the shipments, good that everything will be delivered today. thank you for your good service!

—— Samir from Netherlands

The display looks good so far! I only have the screen 1 showing but it is bright..

—— Craig Becker from USA

P20 outdoor DIP Front Service led diaplay High brightness ease to maintain

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  P20 outdoor DIP Front Service led diaplay High brightness ease to maintain Get Best Price

Product Details:
Place of Origin: China
Brand Name: NewStar,OEM,ODM
Certification: CE,FCC,ROSH,UL,ETL,BIS
Model Number: front service outdoor dip
Payment & Shipping Terms:
Minimum Order Quantity: 1 squre meter
Price: negotiation
Packaging Details: wooden case
Delivery Time: 20 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 10000sqm/month
Detailed Product Description
Panel Material: Iron Pixel Pitch: 10mm,16mm,20mm
Brightness: ≥ 7000 Cd/㎡ Waterproof: IP65
High Light:

Rental Led Screen

,

outdoor led display screen

Front service led display
1.Malfunction Modules replacing are easier & faster. which just need less than one minute to take out from the panel, realizing labor and maintenance cost saving.
2.While Traditional led display need to take maintenance room into consideration, however front service solution will less your worry on these problems. And Newstar’s front service led display make things more flexible on the cases of embedded wall installation, Column Installation of double side display & wall-mounted installation.
3. Thinner and lighter case with advantages over traditional fixed led cabinet.

Features

1. Led Screen usually need an high brightness: ≥7000 nits shows
normally under strongbright sunlight.
2. Good quality led trip with low led attenuation, low default rate and
long lifespan.
3. With strictly IP65 rating testing before shipment which ensure screen
work under heavy Raining environment.
4. Good resistance to deformation with high hardness panel body,
thickness: 135mm.
5. Excellent windy, corrosion resistance function after surface treatment.
6. Installation become easily and more fasten.

For your best choice to save maintenance room and labor, less your worries. Newstar front service led display (DIP) series provide high brightness and good waterproof outdoor solutions for you on media advertising. P10 , P16, P20 are avaiable of DIP outdoor front sevice series.

Application:
Newstar's front service led display is an Ideal solution for outdoor advertisement media, government & enterprise project culture & tourism, sports, propaganda image, commercial real estate. Compared with trodaitional outdoor fixed led display, it is the priority of wall mounted, suspension, wall embedded installation application.



Parameter

Model Number NS-OF-DD-P10 NS-OF-DD-P16 (V) NS-OF-DD-P16 (V) NS-OF-DD-P20 (V)
Pixel Pitch 10mm 16mm 16mm 20mm
Pixel Density/㎡ 10,000 dots 3,906 dots 3,906 dots 2,500 dots
LED Configuration 1R1G1B DIP 346 2R1G1B DIP 346 2R1G1B DIP 346 2R1G1B DIP 346
Module Size 320mm*320mm 320mm*320mm 320mm*320mm 320mm*320mm
Module Resolution 32*32 dots 20*20 dots 20*20 dots 16*16 dots
Panel material Iron Iron Iron Iron
Panel Dimension (WxHxD) 960mm*960mm 1280mm*960mm 1280mm*960mm 1280mm*960mm
Panel Resolution 96*96 dots 80*60 dots 80*60 dots 64*48 dots
Best Viewing Distance 10-120 15-300 15-300 15-300
Driving Mode 1/4 Constant Static Current 1/2 Constant Static Current
Refresh Rate ≥ 1920 Hz ≥ 1920 Hz ≥ 1920 Hz ≥ 1920 Hz
Brightness ≥ 7000 cd/㎡ ≥9000 cd/㎡ ≥ 6500 cd/㎡ ≥ 6500 cd/㎡
Power Consumption Avg: 300 W/Panel Avg:600w/Panel Avg: 400 W/Panel Avg: 300 W/Panel
Viewing Angle (H/V) 110°/45°
Gray Level (Colors) 16.7 million
Lifespan 100,000 hours at 50% brightness
Operating Temperature -20℃~ +60℃
IP Rating IP65
Control System Novastar/Linsn

P20 outdoor DIP Front Service led diaplay High brightness ease to maintain 0
