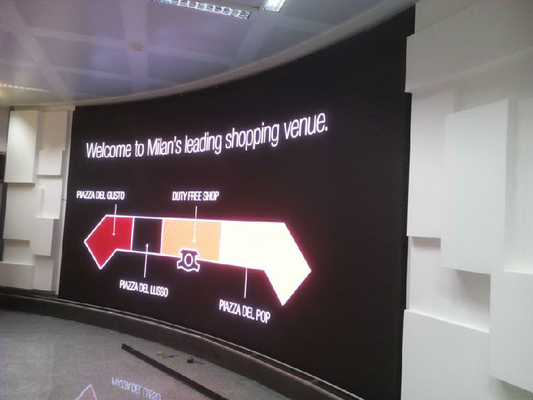

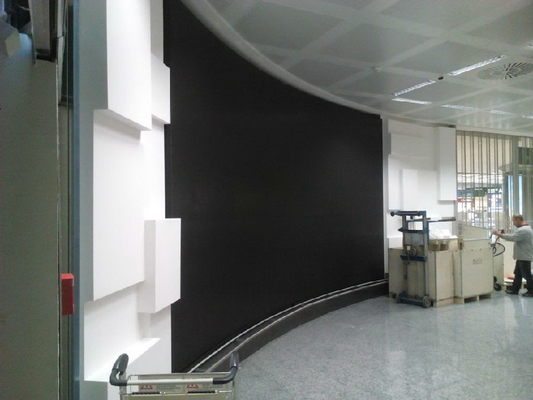

P5 Indoor Front Service Led Display Fixed Installation High Refresh Rate And Gray Scale

Large Image : P5 Indoor Front Service Led Display Fixed Installation High Refresh Rate And Gray Scale Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	NewStar,OEM&ODM
Certification:	CE,ROHS,FCC,UL,ETL,BIS
Model Number:	indoor fixed front service

Payment & Shipping Terms:

Minimum Order Quantity:	1 squre meter
Price:	negotiation
Packaging Details:	wooden case
Delivery Time:	20 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	10000sqm/month

Contact Now

Detailed Product Description

Panel Material:

Iron

Pixel Pitch:

2.5mm,3mm,4mm,5mm

LED Type:

SMD Indoor

Brightness:

≥ 1500 Cd/㎡

High Light:

advertising led screens

indoor led display screen

Parameter

Model Number	NS-IR-DS-P2.5	NS-IR-DS-P3	NS-IR-DS-P4	NS-IR-DS-P5
Pixel Pitch	2.5mm	3mm	4mm	5mm
Pixel Density/㎡	160000dot	111111 dots	62,500 dots	40,000 dots
LED Configuration	1R1G1B 2121	1R1G1B 2121	1R1G1B 2121	1R1G1B 3528
Module Size	160mm*160mm	192mm*192mm	128mm*128mm	160mm*160mm
Module Resolution	64*64 dots	64*64 dots	32*32 dots	32*32 dots
Panel Dimension (WxHxD)	480mm*480mm	768mm*576mm	640mm*512mm	800mm*640mm
Panel Resolution	192*192 dots	256*192 dots	160*128 dots	160*128 dots
Minimum Viewing Distance	2m	2m	3m	4m
Driving Mode	1/32	1/16	1/16	1/16
Refresh Rate	≥ 1000 Hz	≥ 1000 Hz	≥ 1000 Hz	≥ 1000 Hz
Brightness	≥ 1500 cd/㎡	≥ 1500 cd/㎡	≥ 1000 cd/㎡	≥ 1000 cd/㎡
Power Consumption	Avg: 300 W/Panel	Avg: 300 W/Panel	Avg:150 W/Panel	Avg: 150 W/Panel
Gray Level (Colors)		16.7 million
Viewing Angle (H/V)		140°/140°
Lifespan		100,000 hours
Operating Temperature		-20℃~ +60℃
IP Rating		IP3X
Control System		Novastar/Linsn
