Front Service Indoor Rental LED display , 500X500mm Rental LED screen for Stage , Concert

I'm Online Chat Now
Certification
China Shenzhen Newstar Optoelectronics Co., Ltd certification
China Shenzhen Newstar Optoelectronics Co., Ltd certification
Thanks for checking the shipments, good that everything will be delivered today. thank you for your good service!

—— Samir from Netherlands

The display looks good so far! I only have the screen 1 showing but it is bright..

—— Craig Becker from USA

Front Service Indoor Rental LED display , 500X500mm Rental LED screen for Stage , Concert

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Front Service Indoor Rental LED display , 500X500mm Rental LED screen for Stage , Concert Get Best Price

Product Details:
Place of Origin: Shenzhen
Brand Name: NEWSTAR-LED
Certification: CE,RoHs, FCC, ISO9001
Model Number: Epoch Series P3.91
Payment & Shipping Terms:
Minimum Order Quantity: 2SQM
Price: negotiation
Packaging Details: Flight case
Delivery Time: 20 Working Days
Supply Ability: 2000SQM/Month
Detailed Product Description
Pixel Pitch: 3.91 Mm LED Type: SMD2020 [black]
Brightness: ≥ 1200 Cd/㎡ Refresh Rate: ≥ 1920Hz
Cabinet Size: 500*500*80mm Material: Die-casting Aluminum
Cabinet Weight: 8Kg
High Light:

outdoor rental led display

,

outdoor led video display

Indoor rental LED display , Stage LED screen , Video wall for Stage , Concert



Why choose Epoch Series Indoor Rental LED Display ?

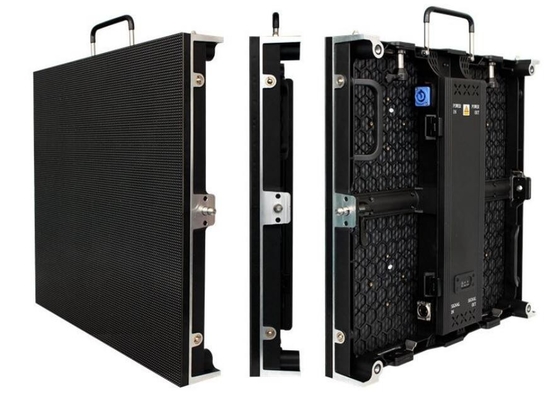

Epoch series-I is an high quality professional stage rental events led display, with cabinet size only 500 x 500 mm, 8Kg/Panel make it portable. Die-casting aluminum structure as cabinet forming help to achieve an high precision. Fast lock design enable us to do quick installation and dismantle. Moreover, Epoch Series-I with commonatly module design of different pixel pitch eable us to replace and not need to buy a new cabinet, which can be cost saving.

Front Service Indoor Rental LED display , 500X500mm Rental LED screen for Stage , Concert 0

Front Service Indoor Rental LED display , 500X500mm Rental LED screen for Stage , Concert 1



How to do maintenance ?



The latest Epoch indoor rental led display with humanized design on service structure. With front service tool, you can do the replacing youself easily, not need to worry module drop and break.



Front Service Indoor Rental LED display , 500X500mm Rental LED screen for Stage , Concert 2 Front Service Indoor Rental LED display , 500X500mm Rental LED screen for Stage , Concert 3



Core technology and advantages of Epoch Series-I



Usually, an higher refresh rate (≥800Hz) is required for Live Show Events , and gray scale will need 10Bit or above. Also an higher contrast ratio will be helpful to achieve better quality pictures.

1. Improve contrast ratio

Good quality black leds adopted into Epoch series-I design which can abtain an high contrast ratio and good uniformity

Front Service Indoor Rental LED display , 500X500mm Rental LED screen for Stage , Concert 4



2.High quality Driver IC and control solution

How to elimate Ghost and Bright line phenomenon, high quality Brand Driver IC with Anti-ghost function help reducing your worry.And ≥ 1920Hz refresh rate in the solution enable us to do Live Show without water Ripple and Mosaic phenomenon, lifelike animated pictures and videos bring us an eye feast; Moreover, Epoch series with the latest control solution support pixel-pixel brightness correction and gray scale adjustment.

Front Service Indoor Rental LED display , 500X500mm Rental LED screen for Stage , Concert 5

3. Calibration and white Balance Brightness testing



Front Service Indoor Rental LED display , 500X500mm Rental LED screen for Stage , Concert 6



Application of Epoch Series-I

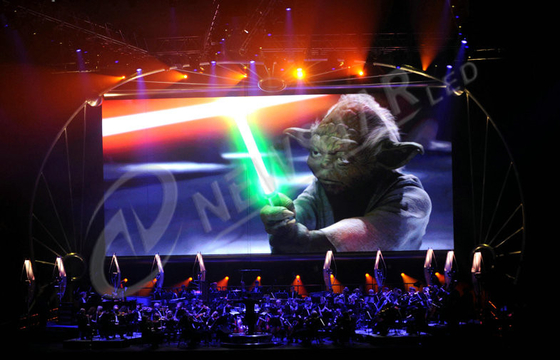

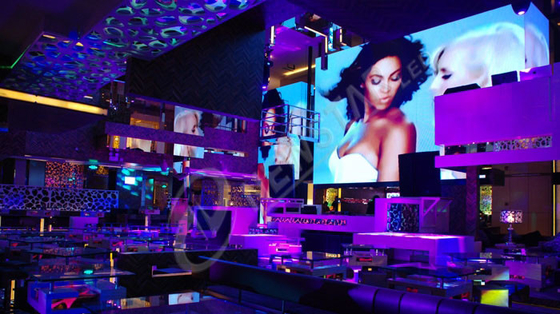

Because of its excellent display quality, slim and light body, Epoch Series Rental LED Displays are widely used in stage rental events, Exhibitions, Car Show, Shopping Mall, TV station, Bar, Presentations, weddings, etc.






Epoch Series-I Model
Item ES-3 ES-4 ES-5 ES-6
Pixel Pitch 3.91 4.81 5.68 6.25
LED Type SMD2020 black (1R1G1B) SMD2020 black (1R1G1B)

SMD3528

(1R1G1B)

SMD3528
 (1R1G1B)

Module Size 250 mm *250 mm 250 mm *250 mm 250 mm *250 mm 250 mm *250 mm
Pixel Density 65536pixels/㎡ 43264 pixels/㎡ 30976 pixels/㎡ 25600 pixels/㎡
Refresh rate ≥1920HZ
Gray Level 16 Bit
Brightness ≥1200 cd/㎡ ≥1200 cd/㎡ ≥1200 cd/㎡ ≥1500 cd/㎡
Driving Method 1/16 1/13 1/11 1/10
Viewing Angle H: 140° , V:140°
Panel Resolution 128*128 Dots 104*104 Dots 88*88 Dots 80*80 Dots
Material Die-casting Aluminum
Panel Size 500 mm *500 mm *80mm
Panel Weight 8Kg/Panel
IP Rating IP31
Avg.Power Consumption 70 W/Panel 70 W/Panel 70 W/Panel 70 W/Panel
Control System LINSN & NOVASTAR & DBSTAR
Operation System Windows 98/me/2000 NT/XP/Win7
Temperature-Operating -20℃~60℃
Humidity-Operating 10% ~ 90% RH
Input Voltage 110 ~ 220 VAC, 50~60HZ
Defect Rate ≤0.0001
MTBF/Life span 35,000 Hrs/ 100,000 Hrs
Certification CCC, CE, RoHs, ETL, FCC
