P15 Transparent Led Curtain Rental Outdoor Advertising Curved Led Display Screen
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Panel Material: | Aluminum | Panel Weight: | 8kg |
|---|---|---|---|
| Pixel Pitch: | 7.81mm,10.417mm,12.5mm,15.625mm | Waterproof: | IP65 |
| High Light: | outdoor rental led display,outdoor led video display |
||
Transparent Led Curtain Rental Outdoor Advertising Curved Led Display Screen

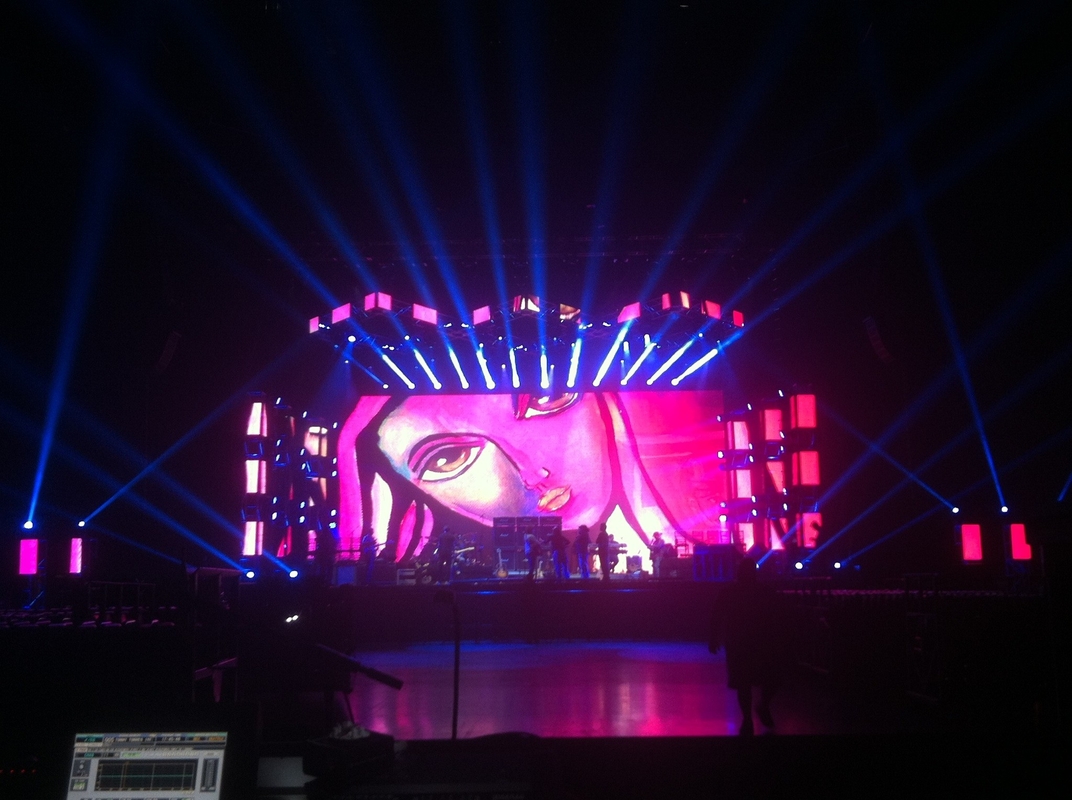

Wind series indoor and outdoor LED Curtain with fashion stage features design, can be transparent and un-transparent, can be curve shape, can be straight layout, which just made according to your requirement. It is widely used as outdoor advertising, events center, for rental or fixed installation.

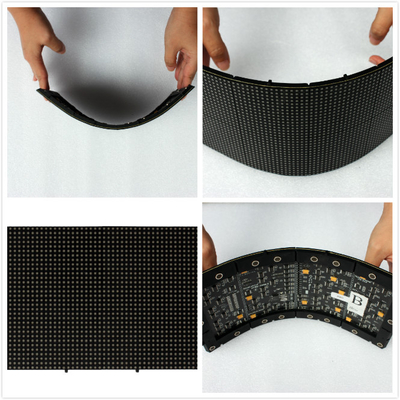

Wind series outdoor led curtain with two different style design on assemble structure, such as curve and straight structure. For curve led curtain with two angle demodulators on each panel supporting -15° to 15 ° curve shape design. Cabinet corner with rake angle design.
Wind series provide you different transparent rate for choice from 18%~35%, also with normal cabinet and curve structure support cabinet. So you can choose any curve angle shape design for different needs both inner arc and outer arc.
Parameter
| Model Number | WS7 | WS10 | WS12 | WS15 | |
| Pixel Pitch | 7.81mm | 10.417mm | 12.5mm | 15.625mm | |
| Pixel Density/㎡ | 16,384 dots | 9,216 dots | 6,400 dots | 4,096 dots | |
| Module Size | 500mm * 62.5mm | 500mm *83.3mm | 500mm *100mm | 500mm * 62.5mm | |
| Module Resolution | 64*8 dots | 48*8 dots | 40*8 dots | 32*4 dots | |
| Panel Dimension (WxHxD) | 500mm*500mm*95mm (19.69''*19.69''*3.7'') |
500mm*500mm*95mm (19.69''*19.69''*3.7'') |
500mm*1000mm*95mm (19.69''*19.69''*3.7'') |
500mm*500mm*95mm (19.69''*19.69''*3.7'') |
|
| Panel Resolution | 64*64 dots | 48*48 dots | 40*80 dots | 32*32 dots | |
| Panel Weight | 8 Kg (17.6 lbs) | 8 Kg (17.6 lbs) | 12.5 Kg (27.5 lbs) | 8 Kg (17.6 lbs) | |
| Driving Mode | 1/4 | 1/4 | 1/2 | Static constant current | |
| Refresh Rate | ≥ 2000Hz | ≥ 2000Hz | ≥ 1500Hz | ≥ 2000Hz | |
| LED Configuration | 1R1G1B 3535 | 1R1G1B 3535 | 1R1G1B 3535 | 1R1G1B 3535 | 1R1G1B 3535 |
| Brightness | ≥5000/㎡ | ≥4000/㎡ | ≥5500/㎡ | ≥5500/㎡ | ≥6000/㎡ |
| Power Consumption | Avg: 100 W/Panel | Avg: 100 W/Panel | Avg: 100 W/Panel | Avg:200 W/Panel | Avg: 100 W/Panel |
| Grayscale | 65,536 level | ||||
| Viewing Angle (H/V) | 140°/140° | ||||
| Lifespan | 100,000 hours at 50% brightness | ||||
| Operating Temperature | -40℃~ +60℃ | ||||
| IP Rating | IP65 | ||||
| Control System | Novastar/Linsn | ||||
