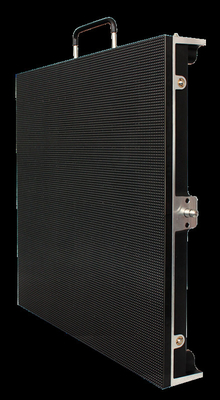

Rental LED display SMD 3.9mm diecasting aluminum quick installation

             Rental LED display SMD 3.9mm diecasting aluminum quick installation

   With unique and market-leading seamless technology, Newstar 3.91mm effective control the video wall face precision down to 0.05mm. Your image & video will look more smooth, fluent and harmonious.

Not only 3.91mm, but also 4.81mm, 5.682mm and 6.25mm available. Meanwhile, Newstar have developed the front service version, maintenance will be 90% faster than back service, as no need to remove screws.

Fastest top and side lock design, your assembly and dismantle will be more time and labor saving.

The specification

Connection: Using Seetronic for main power/signal line and cabinets power/signal line

The cabinet was designed to convenient connection, for faster installation. The wiring can reference below drawing:

Installation: easier and faster lock design, hanging installation.

Install from the middle of hanging bars

Project reference

Maintenance: Replace the modules, power supplies and receiving cards from back

Front service

The modules, power supplies and receiving cards also can be replaced from front, without spending time on removing screws, maintenance will be 90% faster than back service.

Decrease LED Defect Rate: Top soldering technology + AOI inspection

In Newstar, every PCB will be inspected by the AOI machine, instead of no inspection or inspected by eyes. Good soldering technology and strict inspection give LED screens strong stability and decrease the LED defect rate.

Brightness & RGB balance auto-calibration is available after module replacement

Screen face precision < 0.05mm, seamless and no bright line

Synchronous control: User only need to use desktop to control the video wall(sending card connect with PC).

If customer want to use laptop control, or with other device use together, the video processor will be necessary.

The video processor can switch the signal from other device, such as laptop, desktop, camara, DVD, TV...
