Concert SMD 3535 Rental LED Display Curtain Led Screen With High Brightness
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | outdoor rental led display,outdoor full color led display |
||
|---|---|---|---|
Concert SMD 3535 Rental LED Display Curtain Led Screen With High Brightness
Quick Detail:
1. Lightweight :< 8KG/panel. Ultra thin: 95mm thickness
2. Waterproof Level: IP65(Front Side), IP54 (Back Side)
3. High brightness: > 6,000cd/㎡
4. CE,CCC,RoHS,UL,ISO9001
5. Made by high quality aluminum material
6. Cabinet connection angle can be adjusted by -15 degree to +15 degree
Description:
1. Light Weigh & Ultra Thin
Made by high quality aluminum material, one cabinet only weights 8 KG. It makes installation job and
delivery more comfortable and convenient. 95 mm thickness saves not only space for delivery but also
installation.
2. High brightness & Waterproof
Brightness reaches 6,000nits, IP65. It is perfect to be used for both indoor and outdoor.
3. Angle Adjustment
Cabinet connection angle can be adjusted by -15 degree to +15 degree. This allows you shape arc
shapes.
4. Fast Lock System & No Fan Design
Easy to install and dismantle: an average worker can finish 70 panels per hour. Natural cool system design and good heat dissipation.
Applications:

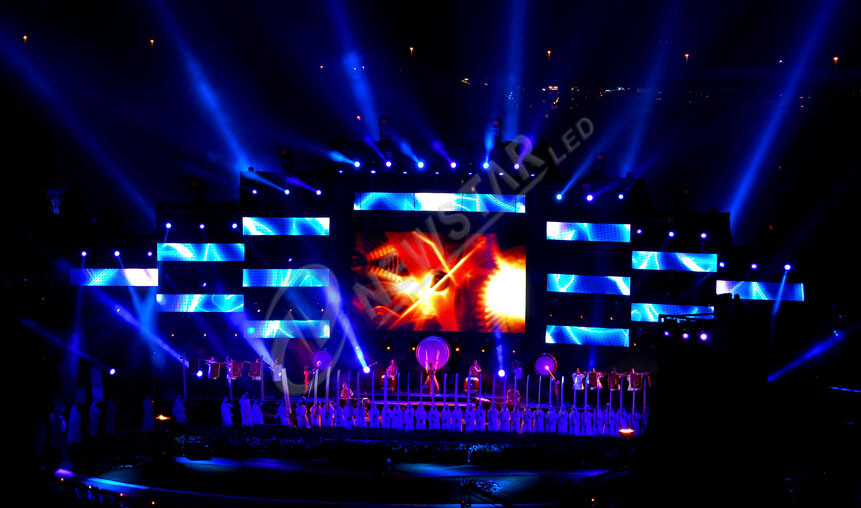

Events, Rental, Show, Exhibition, Stage, Entertainment, Concerts
Specifications:
1. WS-10 Technical Parameter
|
Model No. |
WS-10 |
|
Pixel Pitch |
10.417mm |
|
Module Size |
500mm*83.3mm |
|
Module Resolution (W*H) |
48 dots* 8 dots |
|
Pixel Density |
9,216 dots/ ㎡ |
|
LED Type |
SMD 3535 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
500× 500× 95mm |
|
Cabinet Resolution |
48dots × 48dots |
|
Brightness |
≥ 6,000cd/㎡ |
|
Contrast |
≥ 2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
7m-300m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16,777,216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1,000 W/㎡ |
|
Average Power Consumption |
300 W/㎡ |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
-40~+60℃ |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, RGB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
LINSN / NOVA / DB-STAR |
|
Software |
LED studio 10.0 |
|
Waterproof Level |
IP65(Front Side), IP54 (Back Side) |
|
Installation |
hung and stand |
|
Out of Control Rate |
0.01 % |
2. 10.417mm LED Curtain Module
|
Module Size (W*H) |
500mm*83.3mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
10.417mm |
Resolution (W*H) |
48dots*8 dots |
|
Pixel Density |
9,216 dots/㎡ |
LED Type |
SMD 3535 |
3.10.417mm LED Curtain Cabinet
|
Cabinet Size (W*H) |
500mm *500mm *95mm |
Module Qty |
6 pcs |
|
Cabinet Resolution (W*H) |
48dots* 48dots |
Cabinet Pixel |
2,304 |
|
Weight |
8kg/ Cabinet |
Area |
0.25㎡ |
|
Average Power Consumption |
300w/㎡ |
Max Consumption |
1000 W/㎡ |
4. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b.Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case or Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 24/7 Online support service
2. Free onsite maintenance / Year
3. Solution design
4. Free online training any time
5. High quality raw material used like Neutrik flight connector, MBI IC etc.
