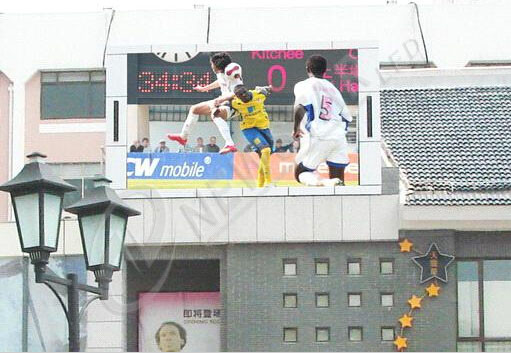

Waterproof P10 Outdoor LED Signs / High brightness LED Display for billboard


Large Image :  Waterproof P10 Outdoor LED Signs / High brightness LED Display for billboard Get Best Price

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Newstar-LED
Certification: CE, RoHS, UL, FCC, ISO
Model Number: KS-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc/ 1 sqm.
Price: US $1,000-2,000 /sqm.
Packaging Details: Flight case /Fumigation-Free wooden case
Delivery Time: 8-25days after received the payment
Payment Terms: T/T
Supply Ability: 2000 Square Meter/Square Meters per Month
Detailed Product Description
High Light:

Portable Led Signs


Outdoor LED Signs


Waterproof P10 Outdoor LED Signs / High brightness LED Display for billboard



Quick Detail:


1. Live show stage use.

2. High brightness up to 5,500cd/sq.m.

3. High resolution for outdoor.

4. 2 years warranty.

5. Free to help to install.

6. Waterproof Level:IP65(Front Side), IP54 (Back Side).





1. Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light;


2. Big viewing angle to 140 degree at horizontal line, 140 degree at vertical line, you can see at every angleat this range, no picture change, no color excursion;


3. To pictures and character, have clear, exquisite and real display effect;


4. High intensity and can be adjusted, so can meet the request of the customers according to the

application environment.


5. Can repair each led lamps, so the cost of maintain is lower, and easy to repair.





Ideal for dazzling different events, such as Stage, Concert, Fashion Show, Wedding, Conference, Building, Hotel, Club & Bars, Festival, etc.





1. Outdoor LED Display Technical Parameter

Model No.


Pixel Pitch


Module Size

320mm *160mm

Module Resolution (W*H)

32 dots *16 dots

Pixel Density

10,000 dots/ ㎡

LED Type

SMD 3535

Pixel Configuration


Wavelength (R.G.B)

R:625±2nm G:525±2nm B:470±2nm

Drive Mode

Dynamic 1/4 Duty Constant Current

Cabinet Size

640 ×640 ×75mm

Cabinet Resolution

64dots ×64dots


≥ 5,500cd/㎡


≥ 2000:1

Viewing Angle

140°(Horizontal )/140°(Vertical )

Best Viewing Distance


Grey Scale


Color Capability


Color Temperature


Maximum Power Consumption

1000 W/

Average Power Consumption

300 W/

Working Voltage

AC 220V/110V s±15% 50-60 HZ

Frame Frequency

60-85 HZ

Refresh Frequency

240 - 1000HZ

Brightness Correction

Pixel, Module, Cabinet Correction

Operating Temperature


Operating Humidity

10-90% RH

LED Lifespan

100,000 hours


≥50,000 hours

Computer Operation System

Win 98/ Win XP/ Win 2000

Video Signal Input


Video Signal Output

RF, S-Video, RGB, RGBHV, YUV, YC etc.

Graphics Card

DVI Graphics Card

Control Distance



LED studio 10.0

Waterproof Level

IP65(Front Side), IP54 (Back Side)


Wall mount, hung and stand structure

Out of Control Rate

0.01 %


2. Outdoor LED Display Module

Module Size (W*H)


Pixel Configuration


Pixel Pitch


     Resolution (W*H)

32 dots* 16 dots

Pixel Density

10,000 dots/㎡

LED Type

SMD 3535


3. Outdoor LED Display Cabinet

Cabinet Size (W*H)

640mm *640mm *75mm

Module Qty

8 pcs

  Cabinet Resolution (W*H)

64 dots*64 dots

Cabinet Pixel



13 kg/ Cabinet

Cabinet material

Die casting aluminum

Avg. power Consumption


Max Consumption

1000 W/


4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level


b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range


5. Factory Equipment


Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.


6. Package

Flight case and Fumigation-Free wooden case


7. Control System Connection


8. Competitive Advantage:

1. High quality and high performance

2. Long lifespan

3. High cost effective

4. Free maintenance service

5. Front/Rear access available
