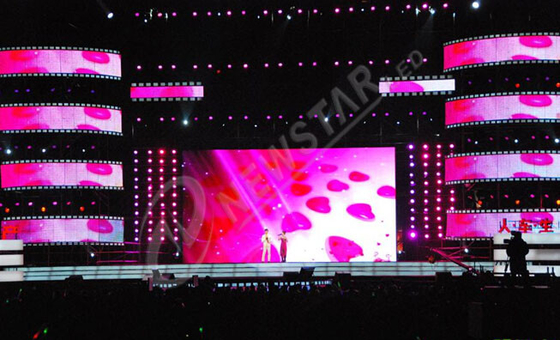

High Definition Stage Rental LED Display / Full Color LED Screen 500mm x 500mm

Large Image : High Definition Stage Rental LED Display / Full Color LED Screen 500mm x 500mm Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	BS-4

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-2,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

High Light:

outdoor rental led display

outdoor full color led display

High Definition Stage Rental LED Display / Full Color LED Screen 500mm x 500mm

Quick Detail:

1. Available models:P3.91,P4.46,P5.2,P6.25.

2. Excellent contrast ratio, high resolution/high definition

3. Light weight and easy to install

4. Perfect uniformity and no mosaic.

5. Lifespan is up to 100,000 hours.

6. Hanging structure design with gapless connection, quickly installation and dismantling

Description:

1. Light Weight

One Cabinet only weights 8.5KG, 34KG for one square meter.

2. Die Casting Materials

Stubborn, light weight, good appearance, anti-corrosiveness

3. Slim Design

one cabinet size is 500 x 500 x 85mm

4. Easy Installation

An average worker can install more than 70 cabinets within one hour W/O tool.

Applications:

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as

banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,

shopping malls, railways, airports, harbors, etc;

Specifications:

1. Indoor LED Display Technical Parameter

Model No.	BS-4
Pixel Pitch	4.46mm
Module Size	250*250mm
Module Resolution(pixels)	56 *56
Pael Size	500mm ×500mm x85mm
Panel Resolution(pixels)	112 ×112
Pixel Configuration(RGB)	1R1G1B
Pixel Density(pixels/㎡)	50,176
Brightness(cd/㎡)	≥ 1200
Best Viewing Distance(m)	4-100
Max.Power Consumption(W/㎡)	900
Waterproof Level	IP31
Vavelength	R 620-625 G 520-525 B 470-475
LED SPEC	2020
Viewing Angle	140°(H)/140°(V)
Operating Tempreture	–40~60°C
Video Frame Rate(Hz)	≥ 60HZ
Display Refresh Rate(Hz)	≥ 300HZ
Grey Level(colors)	16.7million
MTBF	≥50,000 hours
Lifespan	≥100,000 Hours
Working Voltage	220V±15% OR 110V±15%
Drive Mode	Constant 1/14
Graphics Card	DVI Graphics card
Video Signal	RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System	LINSN
Software	LED studio 10.0
Installation	Wall mount, hung and stand structure

2. Indoor LED Display Module

Dimensions (w x h)	250mm x250mm	Resolution (w x h)	56 x 56
Pixel pitch	4.46mm	Pixel Density	50,176/㎡
Pixel Configration	1R1G1B 3 IN 1	LED Type	SMD 2020 black

3. Indoor LED Display Cabinet

Dimensions(w x h x d)(mm)	500 x500 x85	Module Quantity	4
Physical Resolution (w x h)	112 x 112	Physical Pixels (total)	12,544
Weight/Panel (kgs)	8.5	Material	Die casting Aluminum
Average Power/sqm (watts)	330	Max Power/sqm(watts)	900

4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online Remote Support

3. Solution and PCB design

4. Free factory training

5. Onsite installation instruction and regular inspection
