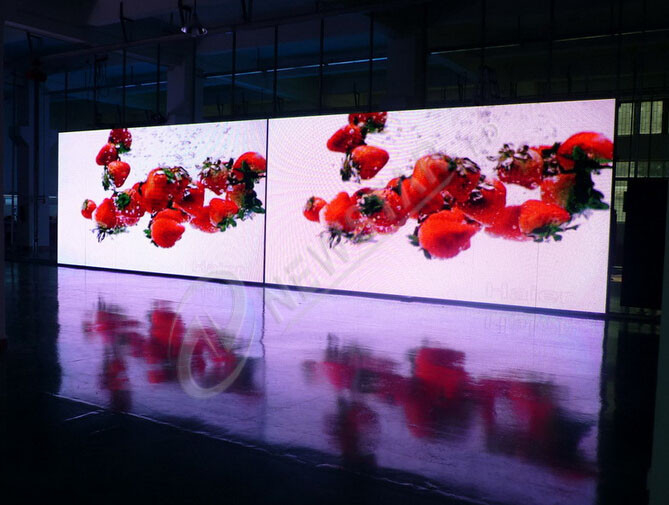

High Definition P10 Billboard LED Display Outdoor 1R1G1B SMD3535 led screen


Large Image :  High Definition P10 Billboard LED Display Outdoor 1R1G1B SMD3535 led screen Get Best Price

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Newstar-LED
Certification: CE, RoHS, UL, FCC, ISO
Model Number: KS-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc/ 1 sqm.
Price: US $1,000-2,000 /sqm.
Packaging Details: Flight case /Fumigation-Free wooden case
Delivery Time: 8-25days after received the payment
Payment Terms: T/T
Supply Ability: 2000 Square Meter/Square Meters per Month
Detailed Product Description
High Light:

digital billboard advertising


led billboard advertising

High Definition P10 Billboard LED Display, Outdoor 1R1G1B SMD3535 led screen




1. Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light;

2. Big viewing angle to 140 degree at horizontal line, 140 degree at vertical line, you can see at every angleat this range, no picture change, no color excursion;

3. To pictures and character, have clear, exquisite and real display effect;

4. High intensity and can be adjusted, so can meet the request of the customers according to the

application environment;

5. Can repair each led lamps, so the cost of maintain is lower, and easy to repair.




1. Outdoor LED Display Technical Parameter

Model No. KS-10
Pixel Pitch 10mm
Module Size 320mm *160mm
Module Resolution (W*H) 32 dots *16 dots
Pixel Density 10,000 dots/ ㎡
LED Type SMD 3535
Pixel Configuration 1R1G1B
Wavelength (R.G.B) R:625±2nm G:525±2nm B:470±2nm
Drive Mode Dynamic 1/4 Duty Constant Current
Cabinet Size 640 ×640 ×75mm
Cabinet Resolution 64dots ×64dots
Brightness ≥ 5,500cd/㎡
Contrast ≥ 2000:1
Viewing Angle 140°(Horizontal )/140°(Vertical )
Best Viewing Distance 10m-300m
Grey Scale 10bits/1024levels
Color Capability 16,777,216
Color Temperature 5000-9300K
Maximum Power Consumption 1000 W/m2
Average Power Consumption 300 W/m2
Working Voltage AC 220V/110V s±15% 50-60 HZ
Frame Frequency 60-85 HZ
Refresh Frequency 240 - 1000HZ
Brightness Correction Pixel, Module, Cabinet Correction
Operating Temperature Static:-40℃~+85℃Working:-20~+65℃
Operating Humidity 10-90% RH
LED Lifespan 100,000 hours
MTBF ≥50,000 hours
Computer Operation System Win 98/ Win XP/ Win 2000
Video Signal Input RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output RF, S-Video, RGB, RGBHV, YUV, YC etc.
Graphics Card DVI Graphics Card
Control Distance LINSN / NOVA / DB-STAR
Software LED studio 10.0
Waterproof Level IP65(Front Side), IP54 (Back Side)
Installation Wall mount, hung and stand structure
Out of Control Rate

0.01 %



2. Outdoor LED Display Module

Module Size (W*H) 320mm*160mm Pixel Configuration 1R1G1B
Pixel Pitch 10mm Resolution (W*H) 32 dots* 16 dots
Pixel Density 10,000 dots/㎡ LED Type SMD 3535


3. Outdoor LED Display Cabinet

Cabinet Size (W*H) 640mm *640mm *75mm Module Qty 8 pcs
Cabinet Resolution (W*H) 64 dots*64 dots Cabinet Pixel 4,096
Weight 13 kg/ Cabinet Cabinet material Die casting aluminum
Avg. power Consumption 300w/㎡ Max Consumption

1000 W/




Ideal for dazzling different events, such as Stage, Concert, Fashion Show, Wedding, Conference, Building, Hotel, Club & Bars, Festival, etc.


4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level


b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range


5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,

Automatic Glue- pouring Machine, Solder Paste Printing Machine,

Reflow Soldering Machine, Automatic Solder Paste Printing Machine,

Withstand Voltage Tester, Ground Resistance Tester,

Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,

Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.


6. Package

Flight case and Fumigation-Free wooden case


7. Control System Connection


8. Competitive Advantage:

1. High quality and high performance

2. Long lifespan

3. High cost effective

4. Free maintenance service

5. Front/Rear access available
