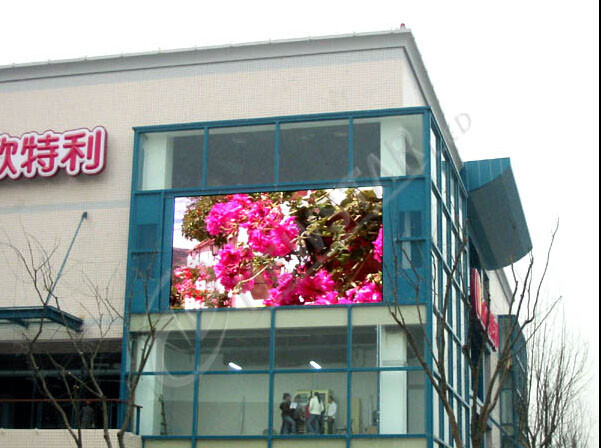

P10 Outdoor DIP Front Service LED Display , Waterproof IP65 160mm × 160mm

Large Image : P10 Outdoor DIP Front Service LED Display , Waterproof IP65 160mm × 160mm Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-OR-DD-P10

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-2,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

High Light:

Rental Led Screen

outdoor led display screen

P10 Outdoor DIP Front Service LED Display, Waterproof IP65 for advertising

Quick Detail:

1.Perfect vivid image for sign or advertising

2.Long lifespan and stable work, waterproof,

3.LED Display Cabinet design for easy install and dismantle.

4.Best quality, best price.

5. High viewing angle: 110°(Horizontal )/45°(Vertical ),

6. Brightness(cd/m²)≥ 7,000

Description:

1. Special Structure design for water-proof, dust-proof, moisture-proof, and anti-static electric.

2. High viewing angle: 110°(Horizontal )/45°(Vertical ).

3. High Contrast. The Contrast is above 2000:1, so the viewer can have a wonderful visual.

4. Outstanding consistency in color and brightness, no mosaic effects.

Applications:

Commercial advertising: Square, Road side, High way, Airport, Wharf, Hotel, Restaurant etc

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	NS-OR-DD-P10
Pixel Pitch	10mm
Module Size	160mm × 160mm
Module Resolution(dots)	16*16
Panel Size	960mm × 960mm
Panel Resolution(dots)	96 × 96
Pixel Configuration(RGB)	1R1G1B
Pixel Density(dots/m²)	10,000
Brightness(cd/m²)	≥ 7,000
Best Viewing Distance(m)	10-120
Avg. Power Consumption(W/m²)	1000
Drive Mode	Constant 1/4
Wavelength	R 620-625 G 520-525 B 470-475
Viewing Angle	110°(H)/45°(V)
Operating Temperature	–20~60°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	≥300HZ
Grey Level(colors)	16.7million
Lifespan	≥100,000 hours
Working Voltage	220V±15% OR 110V±15%
Video Signal Input	RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION
Control System	LINSN OR DB-STAR

2. Outdoor LED Display Module

Module Size (W*H)	160mm * 160mm	Pixel Configuration	1R1G1B
Pixel Pitch	10mm	Resolution (W*H)	16 dots * 16 dots
Pixel Density	10,000 dots/㎡	LED Type	3mm Oval Lamp

3. Outdoor LED Display Cabinet

Cabinet Size (W*H)	960mm * 960mm	Module Qty	36 pcs
Cabinet Resolution (W*H)	96 dots * 96 dots	Cabinet Pixel	9,216
Average Power Consumption	1,000w/㎡	Cabinet materail	Aluminum

4. Methods for Quality Assurance

a. Aging

b. Vibration Testing

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. Long Lifespan > 100,000 hours

2. High quality and high performance

3. Front/Rear access available

4. Reasonable price, superior service.

5. Free maintenance service
