Indoor P7.62mm Front Service LED Display Screen , 1R1G1B LED Screen For Advertising

Large Image : Indoor P7.62mm Front Service LED Display Screen , 1R1G1B LED Screen For Advertising Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-IR-DS-P7.62

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-2,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

High Light:

RGB LED Display

outdoor led display screen

Indoor P7.62mm Front service LED display screen, 1R1G1B led screen for advertising

Quick Detail:

1. Color and brightness uniform.

2. Front maintenance.

3. Excellent contrast.

4. Nature vivid colors.

5. High definition.

6. Easy for install and dismantle.

Description:

1. Safety.

Using the low voltage DC so that no matter the elderly and children can safely operate without potential

safety hazard.

2. Softness.

Using PCB as the substrate and can apply to various advertising model requirements.

3. Long lifespan.

The normal operating time is 100000 hours. If worked all the day long, it would work

for at least 10 years.

4. Energy conservation and environmental protection.

Using the environmental materials and low power (0.04W-0.08W) so that cannot result in waste and

pollution.

5. Easily installation.

Using attaching clamp, wire casing, iron wire, iron net and can install on all kinds of undertake surface. It

can also be installed by the double-sided adhesive because of the light weight.

6. Pure color.

Using the high bright SMT and the color is pure, downy and no glare

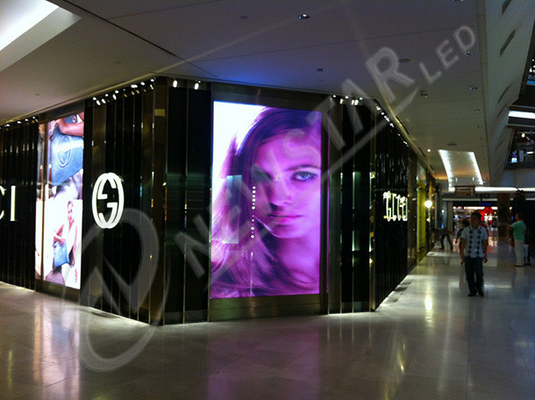

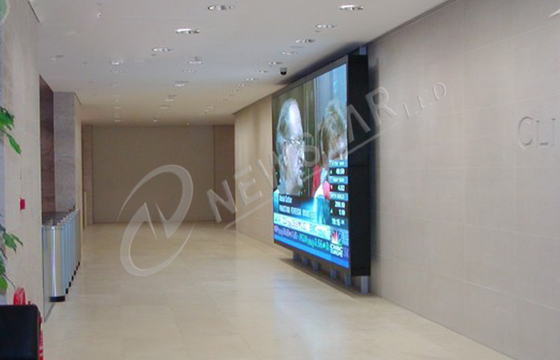

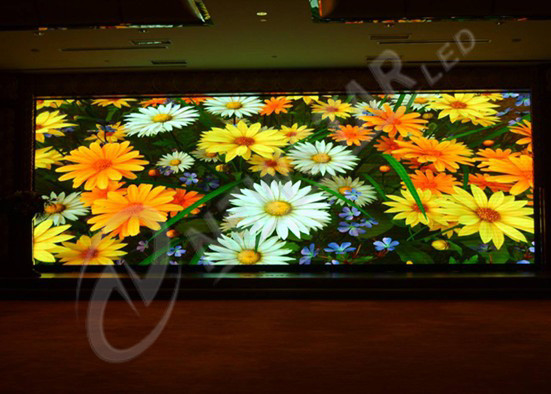

Applications:

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as

banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,

shopping malls, railways, airports, harbors, etc;

Specifications:

1. Indoor LED Display Technical Parameter

Model No.	NS-IR-DS-P7.62
Pixel Pitch	7.62mm
Module Size	244*122mm
Module Resolution(pixels)	32*16
Pael Size	976mm×732mm
Panel Resolution(pixels)	128×96
Pixel Configuration(RGB)	1R1G1B
Pixel Density(pixels/m2)	17,222
Brightness(cdm2)	1,500
Best Viewing Distance(m)	7-100
Waterproof Level	IP31
wavelength	R 620-625 G 520-525 B 470-475
LED SPEC	3528
Viewing Angle	140°(H)/140°(V)
Operating Temperature	–20~60°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	≥300HZ
Grey Level(colors)	16.7million
MTBF	≥50,000 hours
Lifespan	≥100,000Hours
Working Voltage	220V±15% OR 110V±15%
Drive Mode	Constant 1/8
Graphics Card	DVI Graphics card
Video Signal	RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System	LINSN
Software	LED studio 10.0
Installation	Wall mount, hung and stand structure

2. Indoor LED Display Module

Dimensions (w x h)	244mm x 122mm	Resolution (w x h)	32 x 16
Pixel pitch	7.62mm	Pixel Density	17,222/㎡
Pixel Configration	1R1G1B 3 IN 1	LED type	SMD 3528

3. Indoor LED Display Cabinet

Dimensions(w x h x d)(mm)	976 x 732 x135	Module Quantity	24
Physical Resolution (w x h)	128 x 96	Physical Pixels (total)	12,288
Weight/Panel (kgs)	30	Material	Aluminum

4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online remote support

3. Solution and PCB design

4. Free factory training

5. Onsite installation instruction and regular inspection
