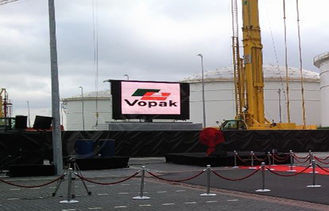

External Square P12 Double Sided Mobile Led Display Flexible Led Video Screen

Large Image : External Square P12 Double Sided Mobile Led Display Flexible Led Video Screen Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-OR-DD-P12

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-2,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

High Light:

mobile led screen truck

Truck Mounted LED Screen

External Square P12 Double Sided Mobile Led Display Flexible Led Video Screen

Quick Detail:

1. IP65 Ruggedness, all-weather qualified

2. Perfect quality and stability, 24/7 running

3. ≤1mm surface level up, smooth video

4. 2 years warranty

5. Long lifespan up to 100,000 hours

6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION

Description:

1. High Quality and Reliability

This project has been installed almost 3 years in Turkmenistan, while there is no service called from now

on.

2. Perfect uniformity and no mosaic

Using same mixing LED lights to make sure the great LED board.

3. High Contrast

The Contrast is above 2000:1, so the viewer can have a wonderful visual

Applications:

Commercial advertising: Square, Road side, High way, Airport, Wharf, Hotel, Restaurant etc

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	NS-OR-DD-P12
Pixel Pitch	12mm
Module Size	192 mm ×192mm
Module Resolution(Pixel)	16 dots×16dots
Pixel Density	6944 dots/m2
LED Type	3mm Oval Lamp
Pixel Configuration	1R1G1B
Wavelength (R.G.B)	R:625±2nm G:525±2nm B:470±2nm
Drive Mode	Dynamic 1/4 Duty Constant Current
Cabinet Size	1152×768×150mm
Cabinet Resolution	96dots×64dots
Brightness	≥6000 cd/m2
Contrast	≥2000:1
Viewing Angle	110°(Horizontal )/45°(Vertical )
Best Viewing Distance	10~300 m
Grey Scale	10bits/1024levels
Color Capability	16777216
Color Temperature	5000-9300K
Maximum Power Consumption	1000 W/m2
Average Power Consumption	350W/m2
Working Voltage	AC220V/110V s±15% 50-60 HZ
Frame Frequency	≥60HZ
Refresh Frequency	≥240HZ
Brightness Correction	Pixel, Module, Cabinet Correction
Operating Temperature	Static:-40°C ~ +85°C Working:-20°C ~ +60°C
Operating Humidity	10-90% RH
LED Lifespan	100,000 hours
MTBF	≥50000 hours
Computer Operation System	Win 98/ Win XP/ Win 2000
Video Signal Input	RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output	RF, S-Video, GB, RGBHV, YUV, YC etc.
Graphics Card	DVI Graphics Card
Control Distance	UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km
Control System	LINSN OR DB-STAR
Software	LED studio 10.0
Waterproof Level	IP65(front side), IP54 (back side)
Installation	Wall mount, hung and stand structure
Out of Control Rate	0.01 %

2. Outdoor LED Display Module

Module Size (W*H)	192mm*192mm	Pixel Configuration	1R1G1B
Pixel Pitch	12mm	Resolution (W*H)	16 dots*16 dots
Pixel Density	6944dots/㎡	LED Type	3mm Oval Lamp

3. Outdoor LED Display Cabinet

Cabinet Size (W*H)	1152mm*768mm	Module Qty	24 pcs
Cabinet Resolution (W*H)	96 dots*64 dots	Cabinet Pixel	6144
Weight	40 kg/ Cabinet	Area	0.6144㎡
Average Power Consumption	350w/㎡	Max Consumption	1000W/m2

4. Methods for Quality Assurance

a. Aging

b. Vibration Testing

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. Front/Rear access Available

2. Reasonable Price, Superior Service.

3. Long Life Span > 100,000 hours

4. Free maintenance service

5. High Quality and High performance
