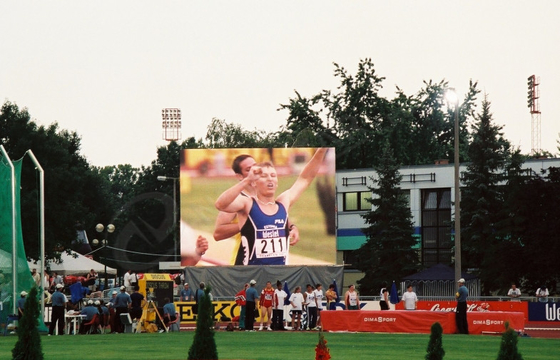

Lightweight P12.5mm Outdoor LED Signs Curtain For Events , Show
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| LED Type: | SMD | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Product Name: | Portable Led Signs/led Board Display | Protection Ratings: | IP65 |
| Tube Chip Color: | Full Color | Use: | Outdoor |
| High Light: | outdoor led message board,Outdoor LED Signs |
||
Lightweight P12.5mm Outdoor LED Signs Curtain For Events , Show
Quick Detail:
1. High brightness up to 6000cd/㎡
2. Lightweight :< 12.5KG/panel. Ultra thin: 95mm thickness
3. CE,CCC,RoHS,UL,ISO9001
4. Waterproof Level: IP65(Front Side), IP54 (Back Side)
5. 2 years warranty, and 24/7 online remote support
6. Fast lock and nature cool design
Outdoor P12.5 Lightweight LED Display Curtain For Events , Show
Description:
1. Comprehensive Usage
With Above features, the product can be used for multi purposes: rental and fix installation, events, trade
show etc.
2. Lightweight & Super Thin
Made by good aluminum material, one panel only weights 12.5 KG. It enables the installation job and
delivery job very comfortable and convenient. Thin thickness not only saves space for delivery but also for
installation environment.
3. High brightness & Waterproof
Brightnessreaches 6000nits, Waterproof IP65. The product can be used for indoor and outdoor.
4. Angle Adjustment
Cabinet connection angle can be adjusted by -15 degree to +15 degree. You can shape the LED panel as
arc shape.
5. Fast Lock System & No Fan Design
Fast lock system design enables the installation faster and easier. An average worker can complete 50-70
panels within one hour. Nature cool design generates better dissipation and less power consuming.
Applications:
Rental, Advertising, Stage, Events, Show, Exhibition, Entertainment, Concerts
Specifications:
1. WS12 Technical Parameter
|
Model No. |
WS12 |
|
Pixel Pitch |
12.5mm |
|
Module Size |
500mm*100mm |
|
Module Resolution (W*H) |
40 dots*8 dots |
|
Pixel Density |
6400 dots/ ㎡ |
|
LED Type |
SMD 3535 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/6 Duty Constant Current |
|
Cabinet Size |
500×1000×100mm |
|
Cabinet Resolution |
40dots×80dots |
|
Brightness |
≥6000cd/㎡ |
|
Contrast |
≥2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
7m-300m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1200W/m2 |
|
Average Power Consumption |
600 W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
-40~+65℃ |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, RGB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
LINSN / NOVA / DB-STAR |
|
Software |
LED studio 10.0 |
|
Waterproof Level |
IP65(Front Side), IP54 (Back Side |
|
Installation |
hung and stand |
|
Out of Control Rate |
0.01 % |
2. 12mm LED Curtain Module
|
Module Size (W*H) |
500mm*100mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
12.5mm |
Resolution (W*H) |
40dots*8 dots |
|
Pixel Density |
6400dots/㎡ |
LED Type |
SMD 3535 |
3. 12mm LED Curtain Cabinet
|
Cabinet Size (W*H) |
500mm*1000mm |
Module Qty |
10 pcs |
|
Cabinet Resolution (W*H) |
40 dots*80dots |
Cabinet Pixel |
3200 |
|
Weight |
12.5kg/ Cabinet |
Area |
0.5㎡ |
|
Average Power Consumption |
600w/㎡ |
Max Consumption |
1200 W/m2 |
4. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case or Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 24/7 Online support service
2. Free onsite maintenance / Year
3. Solution design
4. Free online training any time
5. High quality raw material used like neutrik flight connector, MBI IC etc.
