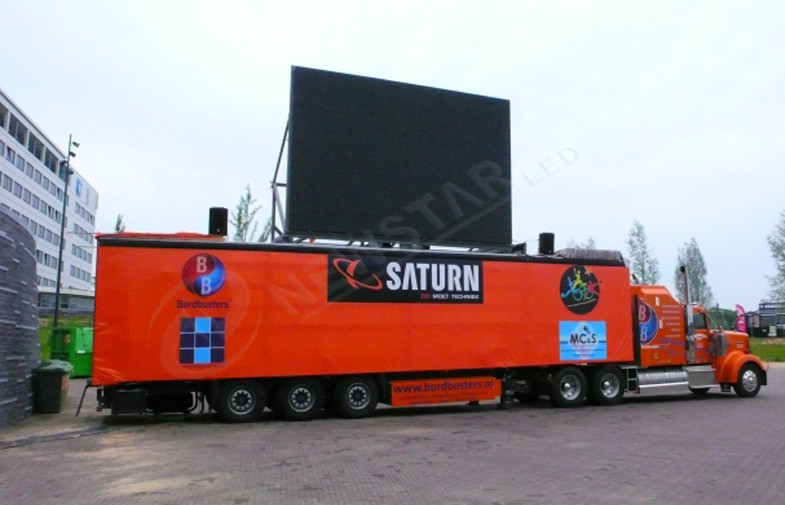

High Definition Mobile Truck Mounted LED Screen , IP65 P10mm Outdoor LED Display
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel Configuration: | 1R1G1B | Pixel Pitch: | 10mm |
|---|---|---|---|
| Product Name: | Truck Mounted Led Display/led Display Board | Protection Ratings: | IP65(Front Side );IP54(Back Side) |
| Tube Chip Color: | Full Color | Use: | Outdoor |
| High Light: | truck mobile led display,Truck Mounted LED Screen |
||
High Resolution Mobile Truck Mounted LED Screen , IP65 P10mm Outdoor LED Display
Quick Detail:
1. ≤1mm surface level up, smooth video
2. Perfect quality and stability, 24/7 running
3. IP65 Ruggedness, all-weather qualified
4. 2 years warranty
5. Long lifespan up to 100,000 hours
6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
Description:
1. High Contrast
Newstar outdoor LED screens enable to deliver sharp visual effects to our audience.
2. Seamless Design
It eliminates the gap between the module and cabinet making LED screen much more even.
3. Comprehensive Application
It can be used in different suitations for mulit purposes such as lease market, advertisement, stadium,
shopmall etc.
4. High Quality and Reliability
Our many outdoor screen have been fixed around the world for 3-5 years and no product issues called.
5. Uniform performance
Newstar always insists using same batch of high quality lamps to make LED screen. Therefore, the LED
screen looks more uniform. No need to do dot correct.
Applications:
Commercial advertising: Square, Road side, High way, Airport, Wharf, Hotel, Restaurant etc
Specifications:
1. Outdoor LED Display Technical Parameter
|
Model No. |
NS-OR-DD-P10 |
|
Pixel Pitch |
10mm |
|
Module Size |
160mm*160mm |
|
Module Resolution (W*H) |
16 dots*16 dots |
|
Pixel Density |
10000 dots/ ㎡ |
|
LED Type |
3mm Oval Lamp |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
960×640×150mm |
|
Cabinet Resolution |
96dots×64dots |
|
Brightness |
≥6000cd/㎡ |
|
Contrast |
≥2000:1 |
|
Viewing Angle |
110°(Horizontal )/45°(Vertical ) |
|
Best Viewing Distance |
10m-300m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1000 W/m2 |
|
Average Power Consumption |
350 W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40℃~+85℃Working:-20~+65℃ |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, RGB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
LINSN / NOVA / DB-STAR |
|
Software |
LED studio 10.0 |
|
Waterproof Level |
IP65(Front Side), IP54 (Back Side |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
2. Outdoor LED Display Module
|
Module Size (W*H) |
160mm*160mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
10mm |
Resolution (W*H) |
16 dots*16 dots |
|
Pixel Density |
10000 dots/㎡ |
LED Type |
3mm Oval Lamp |
3. Outdoor LED Display Cabinet
|
Cabinet Size (W*H) |
960mm*640mm |
Module Qty |
24 pcs |
|
Cabinet Resolution (W*H) |
96 dots*64 dots |
Cabinet Pixel |
6144 |
|
Weight |
50 kg/ Cabinet |
Area |
0.6144㎡ |
|
Average Power Consumption |
300w/㎡ |
Max Consumption |
1000 W/m2 |
4. Methods for Quality Assurance
a. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. Long Life Span
2. Good Quality and great Performance
3. High Cost Effective
4. Free maintenance service
5. Front/Rear access Available
