Front Opening P16 Front Service LED Display Advertising , 256mm * 256mm

Large Image : Front Opening P16 Front Service LED Display Advertising , 256mm * 256mm Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-OR-DD-P16

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-2,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

Product Name:	Led Display Panels/large Led Display	Pixel Pitch:	16mm
Pixel Configuration:	1R1G1B	Tube Chip Color:	Full Color
Use:	Outdoor	LED Type:	3mm Oval Lamp
High Light:	RGB LED Display , outdoor led display screen

Quick Detail:

1.Perfect vivid image for sign or advertising

2.Long lifespan and stable work, waterproof,

3.LED Display Cabinet design for easy install and dismantle.

4.Best quality, best price.

5. High viewing angle: 110°(Horizontal )/45°(Vertical )

6. Brightness(cd/m²)≥ 8000

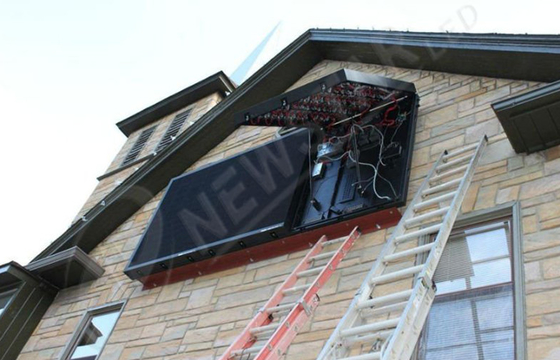

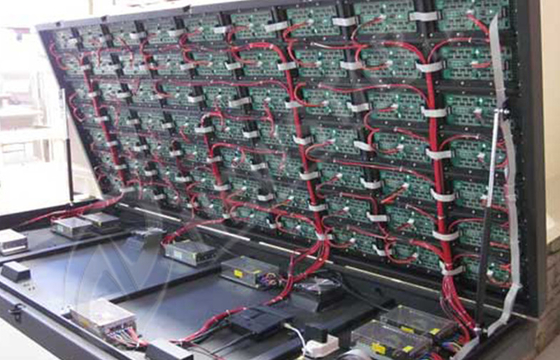

Front Opening P16 Front Service LED Display Advertising , 256mm * 256mm

Description:

1. Special Structure design for water-proof, dust-proof, moisture-proof, and anti-static electric

2. High viewing angle: 110°(Horizontal )/45°(Vertical )

3. High Contrast. The Contrast is above 2000:1, so the viewer can have a wonderful visual

4. Outstanding consistency in color and brightness, no mosaic effects.

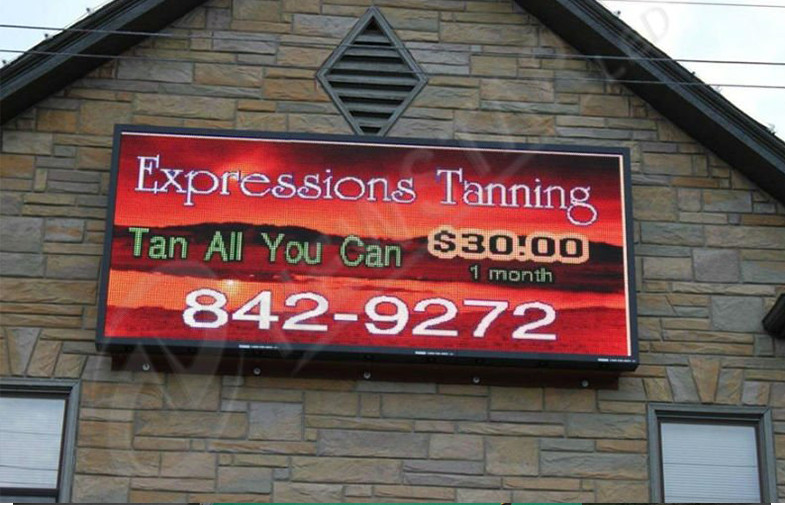

Applications:

Commercial advertising: Square, Road side, High way, Airport, Wharf, Hotel, Restaurant etc

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	NS-OR-DD-P16
Pixel Pitch	16mm
Module Size	256mm×256mm
Module Resolution(dots)	16*16
Panel Size	1024mm×768mm
Panel Resolution(dots)	64×48
Pixel Configuration(RGB)	1R1G1B
Pixel Density(dots/m²)	3906
Brightness(cd/m²)	≥ 8000
Best Viewing Distance(m)	15-300
Max. Power Consumption(W/m²)	1000
Drive Mode	Static
Wavelength	R 620-625 G 520-525 B 470-475
Viewing Angle	110°(H)/45°(V)
Operating Temperature	–20~60°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	≥300HZ
Grey Level(colors)	16.7million
Lifespan	≥100,000 hours
Working Voltage	220V±15% OR 110V±15%
Video Signal Input	RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION
Control System	LINSN OR DB-STAR

2. Outdoor LED Display Module

Module Size (W*H)	256mm*256mm	Pixel Configuration	1R1G1B
Pixel Pitch	16mm	Resolution (W*H)	16 dots*16 dots
Pixel Density	3906 dots/㎡	LED Type	3mm Oval Lamp

3. Outdoor LED Display Cabinet

Cabinet Size (W*H)	1024mm*768mm	Module Qty	12 pcs
Cabinet Resolution (W*H)	96 dots*64 dots	Cabinet Pixel	6144
Weight	40 kg/ Cabinet	Area	0.6144㎡
Average Power Consumption	350w/㎡	Max Consumption	1000W/m2

4. Methods for Quality Assurance

a. Aging

b. Vibration Testing

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. Long Lifespan > 100,000 hours

2. High quality and high performance

3. Front/Rear access available

4. Reasonable price, superior service.

5. Free maintenance service
