10mm High brightness Front Service LED Display , Wall Mounted

small.img.alt small.img.alt small.img.alt

Large Image :  10mm High brightness Front Service LED Display , Wall Mounted Get Best Price

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Newstar-LED
Certification: CE, RoHS, UL, FCC, ISO
Model Number: NS-OR-DD-P10
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc/ 1 sqm.
Price: US $1,000-2,000 /sqm.
Packaging Details: Flight case /Fumigation-Free wooden case
Delivery Time: 8-25days after received the payment
Payment Terms: T/T
Supply Ability: 2000 Square Meter/Month
Detailed Product Description
Product Name: Led Display Panels/large Led Display Pixel Pitch: 10mm
Pixel Configuration: 1R1G1B Tube Chip Color: Full Color
Use: Outdoor LED Type: 3mm Oval Lamp
High Light:

RGB LED Display


outdoor led display screen


Quick Detail:


1. High intensity and can be adjusted, so can meet the request of the customers according the application


2. Best quality, commendably solve the problem of the mosaic, have the excellent consistency of light;

3. To pictures and character, have clear, exquisite and real display effect;

4. Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle

at this range, no picture change, no color excursion;

5. Can repair each led lamps, so the cost of maintain is lower, and easy to repair.

6. Waterproof Level:IP65(Front Side), IP54 (Back Side)

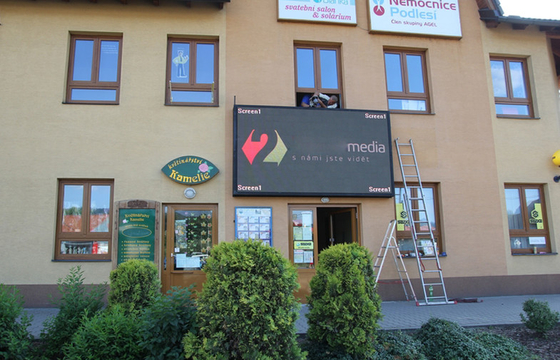

10mm High brightness Front Service LED Display , Wall Mounted

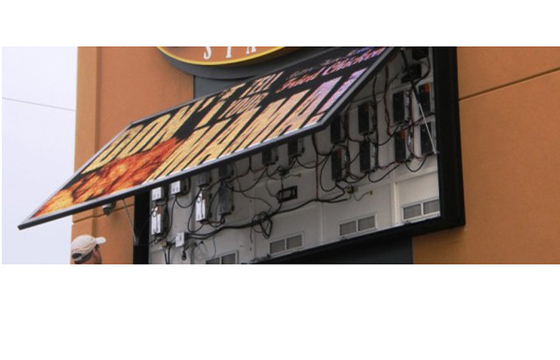

1. Front-maintained : it also called front servicing, we know servicing have two form: one is

front servicing, another is back servicing. mostly we used back servicing, because front servicing is not

safe, and it hard to servicing, especially in fixed installation and wall installation.

2. Front maintenance is generally the front before opening the door, This way is also open the door to

better maintenance. Some are in the module on drilling, then it can easy to servicing in front.

3. Front maintenance does not see more ,but it not to say that is never used front maintenance .no matter

what maintained we know that it just to protect the LED display, and let the LED display become good used.

ensure the quality of the LED display. when it was broken, we can immediately put it right.

4. Front maintained simplify understanding is that when the display worse repair from the front .




Commercial advertising: Square, Road side, High way, Airport, Wharf, Hotel, Restaurant etc




1. Outdoor LED Display Technical Parameter

Model No.


Pixel Pitch


Module Size


Module Resolution (W*H)

16 dots*16 dots

Pixel Density

10000 dots/ ㎡

LED Type

3mm Oval Lamp

Pixel Configuration


Wavelength (R.G.B)

R:625±2nm G:525±2nm B:470±2nm

Drive Mode

Dynamic 1/4 Duty Constant Current

Cabinet Size


Cabinet Resolution






Viewing Angle

110°(Horizontal )/45°(Vertical )

Best Viewing Distance


Grey Scale


Color Capability


Color Temperature


Maximum Power Consumption

1000 W/m2

Average Power Consumption

350 W/m2

Working Voltage

AC 220V/110V s±15% 50-60 HZ

Frame Frequency

60-85 HZ

Refresh Frequency

240 - 1000HZ

Brightness Correction

Pixel, Module, Cabinet Correction

Operating Temperature


Operating Humidity

10-90% RH

LED Lifespan

100,000 hours


≥50,000 hours

Computer Operation System

Win 98/ Win XP/ Win 2000

Video Signal Input


Video Signal Output

RF, S-Video, RGB, RGBHV, YUV, YC etc.

Graphics Card

DVI Graphics Card

Control Distance



LED studio 10.0

Waterproof Level

IP65(Front Side), IP54 (Back Side)


Wall mount, hung and stand structure

Out of Control Rate

0.01 %



2. Outdoor LED Display Module

Module Size (W*H)


Pixel Configuration


Pixel Pitch


     Resolution (W*H)

16 dots*16 dots

Pixel Density

10000 dots/㎡

LED Type

3mm Oval Lamp


3. Outdoor LED Display Cabinet

Cabinet Size (W*H)


Module Qty

24 pcs

  Cabinet Resolution (W*H)

96 dots*64 dots

Cabinet Pixel



50 kg/ Cabinet



Average Power Consumption


Max Consumption

1000 W/m2


4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level


b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range


5. Factory Equipment


10mm High brightness Front Service LED Display , Wall Mounted 010mm High brightness Front Service LED Display , Wall Mounted 0Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.


6. Package

Flight case and Fumigation-Free wooden case


7. Control System Connection


8. Competitive Advantage:

1. High quality and high performance

2. Long Lifespan

3. High cost effective

4. Free maintenance service

5. Front/Rear access available
