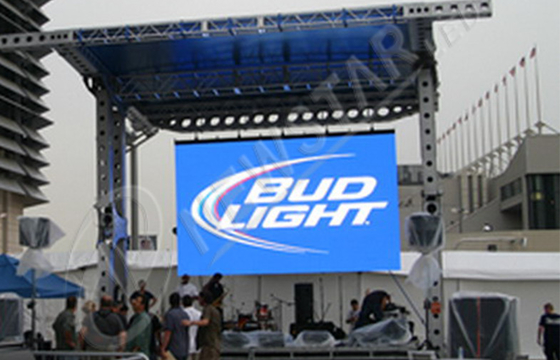

SMD P6 Rental Outdoor LED Signs Panel For Stage 140°(H ) / 140°(V )
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| LED Type: | SMD | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Pixel Pitch: | 6mm | Product Name: | Portable Led Signs/led Board Display |
| Protection Ratings: | IP31 | Tube Chip Color: | Full Color |
| Use: | Outdoor | ||
| High Light: | outdoor led message board,Outdoor LED Signs |
||
Quick Detail:
1. ≤1mm surface level up, smooth video
2. Perfect quality and stability, 24/7 running
3. Front or Rear Access Service
4. 2 years warranty
5. Long lifespan up to 100,000 hours
6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
SMD P6 Rental Outdoor LED Display Signs Panel For Stage 140°(H )/140°(V )
Description:
1. High Resolution
27777 dots per sqm..
2. Excellent Performance
High refresh rate and enough brightness make the LED display be capable to show all kinds of HD video,
images vividly.
3. 2 years warranty
Free replacement and maintenance for spare parts is offered within warranty period. Permanent
maintenance service is offered before product’s life expires.
4. Front or Rear access Service Available
Our many outdoor screens have been used by our clients around the world for 3-5 years and no product
issues are called.
Applications:
Comprehensive purposes like Cinema, Theatre, trade show, Bar etc.
Specifications:
1. Outdoor LED Display Technical Parameter
|
Model No. |
NS-OR-DS-P6 |
|
Pixel Pitch |
6mm |
|
Module Size |
288mm×288mm |
|
Module Resolution(Pixel) |
48dots×48dots |
|
Pixel Density |
27777dots/m2 |
|
LED Type |
SMD |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
1/4 |
|
Cabinet Size |
576×576×100mm |
|
Cabinet Resolution |
96dots×96dots |
|
Brightness |
≥6000 cd/m2 |
|
Contrast |
≥ 2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
4m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1000W/m2 |
|
Average Power Consumption |
350W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C ~+85°C Working:-20~+65°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LED studio 10.0 |
|
Software |
LINSN / Nova/ DB-STAR |
|
Waterproof Level |
IP65 |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
2. Outdoor LED Display Module
|
Module Size (W*H) |
288mm*288mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
6mm |
Resolution (W*H) |
48dots*48 dots |
|
Pixel Density |
27777 dots/㎡ |
LED Type |
SMD |
3. Outdoor LED Display Cabinet
|
Cabinet Size (W*H) |
576mm*576mm |
Module Qty |
4 pcs |
|
Cabinet Resolution (W*H) |
96 dots*96dots |
Cabinet Pixel |
9216 |
|
Weight |
10kg/ Cabinet |
Area |
0.3118m2 |
|
Average Power Consumption |
400w/m2 |
Max Consumption |
1800W/m2 |
4. Methods for Quality Assurance
a. Aging
b. Waterproof test
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 24/7 Online support service
2. Free onsite maintenance / Year
3. Solution design
4. Free online training any time
5. High quality raw material used
