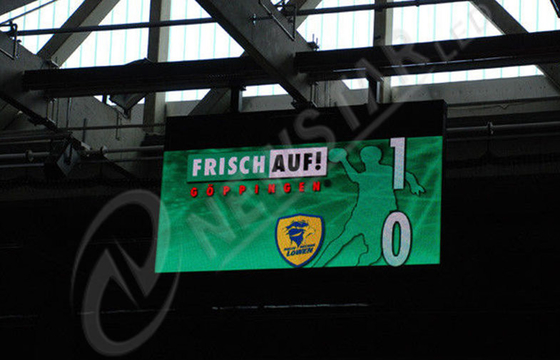

Flexible RGB P8 Indoor Full Color LED Display Screen For Stadium / Airport
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| LED Type: | SMD 3528 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Pixel Pitch: | 8mm | Product Name: | Full Color Led Sign/indoor Led Display |
| Protection Ratings: | IP31 | Tube Chip Color: | Full Color |
| High Light: | advertising led screens,indoor led screen rental |
||
Flexible RGB P8 Indoor Full Color LED Display Screen For Stadium / Airport
Quick Detail:
1. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
2. ≤1mm surface level up, smooth video
3. Perfect quality and stability, 24/7 running
4. Powerful supply for big order.
5. Longer lifespan. (more than 100,000 hours life)
6. Modular design, flexible shape for big area
Description:
1. Full protection under harsh environment
Sharpe series are made from aluminum mold, strong and precise; Full waterproof cabinet with IP65 power
and data connector enables its wide application through any events that take place indoor or outdoor.
2. Slim and light
It could be one of the thinnest LED displays in the industry; with only 50mm depth, the weight is only 9.5kg.
You can carry two panels at one time! Your installation stuff could not be more satisfied.
3. Fan-less design makes a quite display
Thanks to the integrated mold design, the thermal conductivity is very good and we could get rid of fans
cooling. This quite display is very important for some of your event like concert touring.
4. High power efficiency
Unlike most of the product in the industry, we designed a double layer power supply system which is from
AC-DC and DC-DC. This system enhances the power transforming efficiency to a high level of 83%.
5. Easy and fast installation
The inter-locker is fast and easy, free your hands from any other complicated tools.
Applications:
Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,
shopping malls, railways, airports, harbors, etc;
Specifications:
1. Indoor LED Display Technical Parameter
|
Model No. |
NS-IR-SD-P8 |
|
Pixel Pitch |
8mm |
|
Module Size |
256mm×128 mm |
|
Module Resolution(Pixel) |
32dots×16dots |
|
Pixel Density |
15625dots/m2 |
|
LED Type |
SMD 3 in 1 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/8 Duty Constant Current |
|
Cabinet Size |
1024×768×135mm |
|
Cabinet Resolution |
128dots×96dots |
|
Brightness |
≥1400 cd/m2 |
|
Contrast |
≥ 2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
6m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
780W/m2 |
|
Average Power Consumption |
260W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C ~+85°C Working:-20~+65°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, GB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km |
|
Control System |
LED studio 10.0 |
|
Software |
LINSN OR DB-STAR |
|
Waterproof Level |
IP31 |
|
Installation |
Wall mount, hung and stand structure |
|
Out of Control Rate |
0.01 % |
2. Indoor LED Display Module
|
Dimensions (w x h) |
256mmx128mm |
Resolution (w x h) |
32 x 16 |
|
Pixel pitch |
8mm |
Pixel Density |
15625/㎡ |
|
Pixel Configration |
1R1G1B 3 IN 1 |
SMD 3528 |
|
3. Indoor LED Display Cabinet
|
Dimensions(w x h x d)(mm) |
768x640x85 |
Module Quantity |
15 |
|
Physical Resolution (w x h) |
96 x 80 |
Physical Pixels (total) |
7680 |
|
Weight/Panel (kgs) |
15 |
Material |
Steel |
|
Average Power/sqm (watts) |
260 |
Max Power/sqm(watts) |
780 |
4. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. Onsite installation instruction and regular inspection
