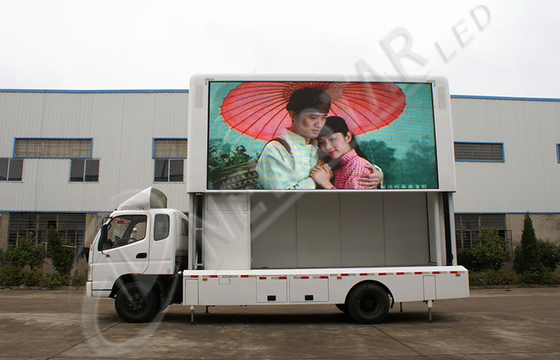

Electronic RGB Monitor Truck Mounted Moving Led Display Board For Show / Concert
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| LED Type: | SMD 3535 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Pixel Pitch: | 10mm | Product Name: | Truck Mounted Led Display/led Display Board |
| Tube Chip Color: | Full Color | Use: | Outdoor |
| High Light: | mobile led screen truck,Truck Mounted LED Screen |
||
Electronic RGB Monitor Truck Mounted Moving Led Display Board For Show / Concert
Quick Detail:
1. ≤1mm surface level up, smooth video
2. Perfect quality and stability, 24/7 running
3. IP65 Ruggedness, all-weather qualified
4. 2 years warranty
5. Long lifespan up to 100,000 hours
6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
Description:
1. High brightness & Waterproof
Brightness reaches 6000nits, IP65. It is perfect to be used for both indoor and outdoor.
2. Light Weigh & Ultra Thin
Made by high quality aluminum material, one cabinet only weights 8.5 KG. It makes installation job and
delivery more comfortable and convenient. 95 mm thickness saves not only space for delivery but also
installation.
3. Angle Adjustment
Cabinet connection angle can be adjusted by -15 degree to +15 degree. This allows you can shape arc
shapes.
4. Fast Lock System & No Fan Design
Easy to install and dismantle: an average worker can finish 70 panels per hour. Natural cool system design
and good heat dissipation.
Applications:
Rental, Stage, Events, Show, Exhibition, Entertainment, Concerts. Mobile advertising.
Specifications:
1. WS10 Technical Parameter
|
Model No. |
WS10 |
|
Pixel Pitch |
10.417mm |
|
Module Size |
500mm*83.33mm |
|
Module Resolution (W*H) |
48 dots*8 dots |
|
Pixel Density |
9216 dots/ ㎡ |
|
LED Type |
SMD 3535 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
500×500×95mm |
|
Cabinet Resolution |
48dots×48dots |
|
Brightness |
≥6000cd/㎡ |
|
Contrast |
≥2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
7m-300m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1500 W/m2 |
|
Average Power Consumption |
700 W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
-40~+65℃ |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, RGB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphics Card |
|
Control Distance |
LINSN / NOVA / DB-STAR |
|
Software |
LED studio 10.0 |
|
Waterproof Level |
IP65(Front Side), IP54 (Back Side |
|
Installation |
hung and stand |
|
Out of Control Rate |
0.01 % |
2. 10mm LED Curtain Module
|
Module Size (W*H) |
500mm*83mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
10.417mm |
Resolution (W*H) |
48dots*8 dots |
|
Pixel Density |
9216dots/㎡ |
LED Type |
SMD 3535 |
3. 10mm LED Curtain Cabinet
|
Cabinet Size (W*H) |
500mm*500mm |
Module Qty |
6 pcs |
|
Cabinet Resolution (W*H) |
48 dots*48dots |
Cabinet Pixel |
2304 |
|
Weight |
8.5kg/ Cabinet |
Area |
0.25㎡ |
|
Average Power Consumption |
700w/㎡ |
Max Consumption |
1500 W/m2 |
4. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case or Fumigation-Free wooden case
7. Control System Connection
8. Competitive Advantage:
1. 24/7 Online support service
2. Free onsite maintenance / Year
3. Solution design
4. Free online training any time
5. High quality raw material used like neutrik flight connector, MBI IC etc.
