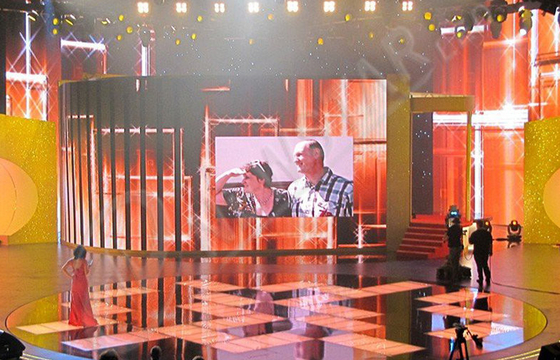

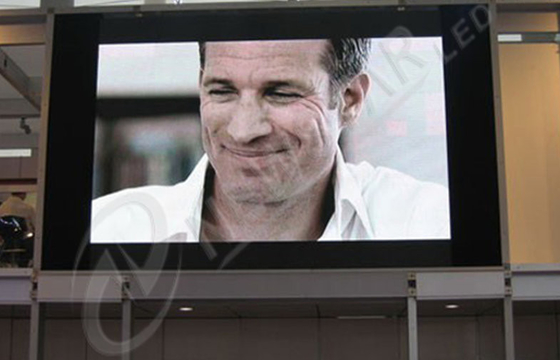

High Brightness P10 Indoor Full Color LED Display , SMD 3528 Stage LED Screen Panel

Large Image : High Brightness P10 Indoor Full Color LED Display , SMD 3528 Stage LED Screen Panel Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-IR-DS-P10

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $800-900 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

LED Type:	SMD3528	Pixel Configuration:	1R1G1B
Pixel Pitch:	10mm	Product Name:	Full Color Led Sign/indoor Led Display
Protection Ratings:	IP31
High Light:	advertising led screens , indoor led display screen

High Brightness P10 Indoor Full Color LED Display , SMD 3528 Stage LED Screen Panel

Quick Detail:

1. ≤1mm surface level up, smooth video

2. Perfect quality and stability, 24/7 running

3. Standard cabinet, easy transport and installation

4. Compatible different signal input

5. Longer lifespan. (more than 100,000 hours life)

6. Support any format of video,RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION

Description:

1. With good lightening accordance and no mosaic.

2. Can play different formats of image files, flash,WAV/MIDI

3. Hign brightness, and can be adjusted to meet the requirements of costomers.

4. Better viewing effect because of using the real pixels instead of virtual pixels.

Applications:

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as

banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,

shopping malls, railways, airports, harbors, etc;

Specifications:

1. Indoor LED Display Technical Parameter

Model No.	NS-IR-DS-P10
Pixel Pitch	10mm
Module Size	160mm×160 mm
Pixel Density	10000dots/m2
LED Type	SMD 3 in 1
Pixel Configuration	1R1G1B
Wavelength (R.G.B)	R:625±2nm G:525±2nm B:470±2nm
Drive Mode	Dynamic 1/4 Duty Constant Current
Cabinet Size	960×960×135mm
Cabinet Resolution	96dots×96dots
Brightness	≥1500 cd/m2
Contrast	≥ 2000:1
Viewing Angle	140°(Horizontal )/140°(Vertical )
Best Viewing Distance	8m
Grey Scale	10bits/1024levels
Color Capability	16777216
Color Temperature	5000-9300K
Maximum Power Consumption	825W/m2
Average Power Consumption	280 W/m2
Working Voltage	AC 220V/110V s±15% 50-60 HZ
Frame Frequency	60-85 HZ
Refresh Frequency	240 - 1000HZ
Brightness Correction	Pixel, Module, Cabinet Correction
Operating Temperature	Static:-40°C ~+85°C Working:-20~+65°C
Operating Humidity	10-90% RH
LED Lifespan	100,000 hours
MTBF	≥50,000 hours
Computer Operation System	Win 98/ Win XP/ Win 2000
Video Signal Input	RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output	RF, S-Video, GB, RGBHV, YUV, YC etc.
Graphics Card	DVI Graphics Card
Control Distance	UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km
Control System	LED studio 10.0
Software	LINSN OR DB-STAR
Waterproof Level	IP31
Installation	Wall mount, hung and stand structure
Out of Control Rate	0.01 %

2. Indoor LED Display Module

Dimensions (w x h)	320mmx160mm	Resolution (w x h)	32 x 16
Pixel pitch	10mm	Pixel Density	10000/㎡
Pixel Configration	1R,1G,1B	LED Type	SMD3528

3. Indoor LED Display Cabinet

Dimensions(w x h x d)(mm)	960x960	Module Quantity	18
Physical Resolution (w x h)	96 x 96	Physical Pixels (total)	9216
Weight/Panel (kgs)	50	Material	Cold rolled steel
Average Power/sqm (watts)	280	Max Power/sqm(watts)	825

4. Methods for Quality Assurance

a. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online Remote Support

3. Solution and PCB design

4. Free factory training

5. Onsite installation instruction and regular inspection
