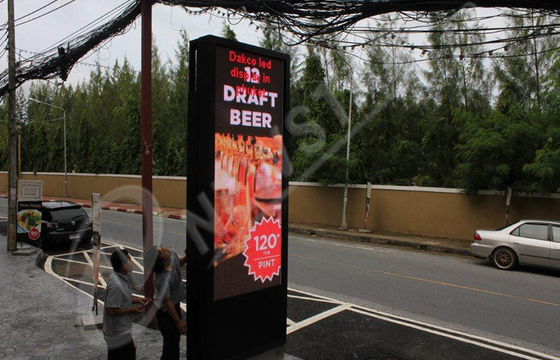

SMD3535 P6 Front Service LED Display Sign For Storefront

Large Image : SMD3535 P6 Front Service LED Display Sign For Storefront Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	NS-OR-DS-P6

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-2,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Square Meters per Month

Contact Now

Detailed Product Description

Product Name:	Led Display Panels/large Led Display	Pixel Pitch:	6mm
Pixel Configuration:	1R1G1B	Tube Chip Color:	Full Color
Use:	Outdoor	Protection Ratings:	IP65
High Light:	Rental Led Screen , RGB LED Display

Quick Detail:

1. RoHS and CE,CCC

2. Waterproof IP65

3. Super brightness.

4. Competitive price,hgih quality

5. Front and rear cabinet access maintenance

6. Lifespan≥100000 hours

SMD3535 P6 Front Service LED Display Sign for Storefront

Description:

1. High Contrast ratio: 4000:1

This is a very high level to ensure a vivid image of our LED screen system.

3. First-class LED chip:

Supplied by high strictly selected SMD3535 LED

4. Clear vivid image quality:

Perfect color blending and comfortable visual effect

5. Easy Installation & operation:

Slim and light LED panel, user friendly software for an easy interface to operate the LED system

6. Easy maintenance:

Front and rear cabinet access maintenance

Applications:

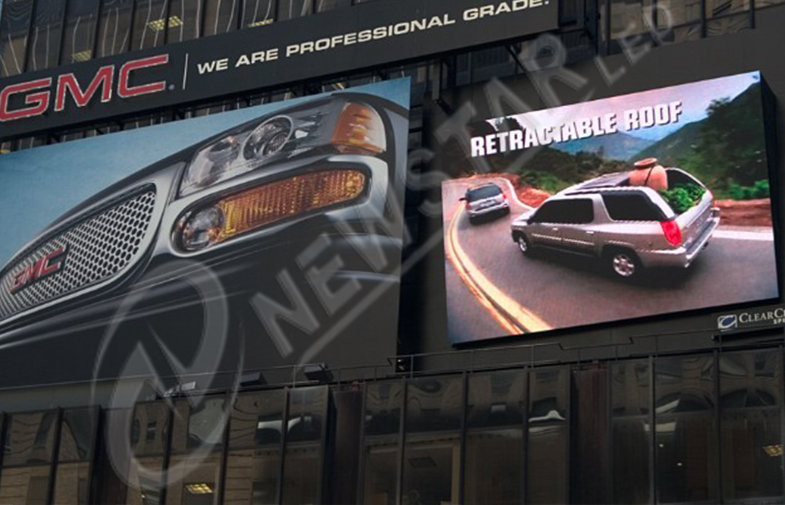

Outdoor full color digital billboards are very popular in LED display advertising field. This type digital

billboard is widely used outdoor plaza, outdoor building,stadium,shopping mall,cross road,highway,

airport etc;

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	NS-OR-DS-P6
Pixel Pitch	6mm
Module Size	192*96mm
Module Resolution(pixels)	32*16
Pael Size	960mm×768mm
Panel Resolution(pixels)	160×128
Pixel Configuration(RGB)	1R1G1B
Pixel Density(pixels/m2)	27777
Brightness(cdm2)	5000
Best Viewing Distance(m)	6-100
Max.Power Consumption(W/m2)	1350
Waterproof Level	IP65
Wavelength	R 620-625 G 520-525 B 470-475
LED SPEC	3528
Viewing Angle	140°(H)/60°(V)
Operating Tempreture	–20~50°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	≥300HZ
Grey Level(colors)	16.7million
MTBF	≥50000 hours
Lifespan	≥100000Hours
Working Voltage	220V±15% OR 110V±15%
Drive Mode	Constant 1/4
Graphics Card	DVI Graphics card
Video Signal	RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System	LINSN
Software	LED studio 10.0
Installation	Wall mount, hung and stand structure

2. Outdoor LED Display Module

Module Size (W*H)	192mm*96mm	Pixel Configuration	1R1G1B
Pixel Pitch	6mm	Resolution (W*H)	32 dots*16 dots
Pixel Density	27777 dots/㎡	LED Type	SMD3535

3. Outdoor LED Display Cabinet

Cabinet Size (W*H)	960mm*768mm	Module Qty	40pcs
Cabinet Resolution (W*H)	160 dots*128 dots	Cabinet Pixel	20480
Weight	50 kg/ Cabinet	Area	0.737㎡
Average Power Consumption	300w/㎡	Max Consumption	1000 W/m2

4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. High quality and high performance

2. Long Lifespan

3. High cost effective

4. Free maintenance service

5. Front/Rear access available
