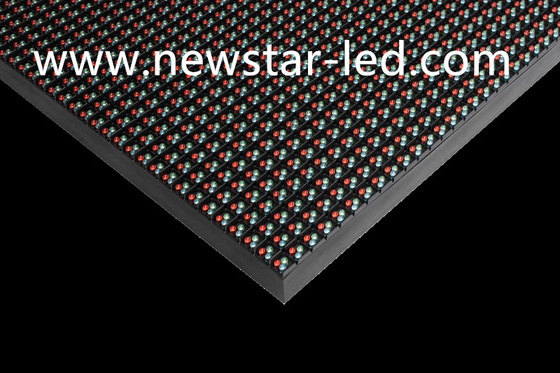

High Brightness 1ftX1ft Front Service LED Display 10.16mm 10000cd/㎡

Large Image : High Brightness 1ftX1ft Front Service LED Display 10.16mm 10000cd/㎡ Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	NEWSTAR
Certification:	CE,ROHS
Model Number:	10.16FT

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	based on quantity
Packaging Details:	Fumigated Wooden Package
Delivery Time:	15-30 business days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	1000 sqm per month

Contact Now

Detailed Product Description

Module Size:	1ftX1ft	LED Configuration:	DIP346
Brightness:	10000nits	IP Rating:	IP65
Maintenance:	Double Service	Cabinet Size:	1219.2*914.4mm
Cabinet Material:	Iron Or Aluminum	Warranty:	5 Years
High Light:	Rental Led Screen , RGB LED Display

10.16mm Outdoor Super High Brightness 1ftX1ft Front Service Module Display Solution

Main Features

1.Module size is 1ftX1ft(304.8X304.8mm),applied to north and south America area.

2.Super brightness 10000nits,standing among the normal market outdoor 7000nits.

3.5 years warranty,excellent industry warranty time,no worry about the after-sales service

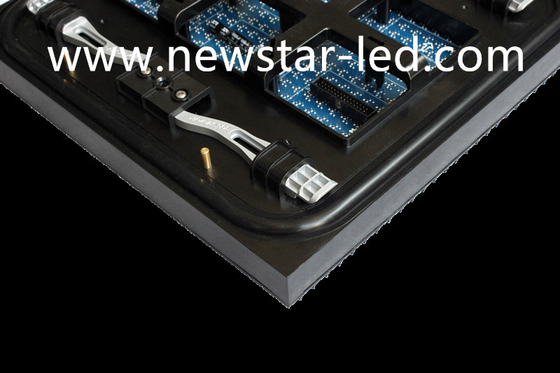

4.Double service means you can maintenace from front or rear just depends on your requirements.

High Brightness 1ftX1ft Front Service LED Display 10.16mm 10000cd/㎡ 0

Specifications

Module
Dimensions (W x H)	304.8mmx304.8mm	Resolution (w x h)	30*30
Pixel pitch	10.16mm	Pixel Density	9688/㎡
Driving IC	MBI5124	Pixel Configuration	Multi Color
Power Consumption Average/pcs	10W	Power Consumption Max/module	30W
Parameter	Value
Brightness	10,000cd/㎡
Viewing Angle	Horizontal 110(＋55/-55)deg. Vertical 55(+22.5/-22.5)deg.
Minimum Viewing Distance	10meters
Brightness Control	256 level
Gray scale	65,536 level
Refresh frequency	1920 Hertz
Driving mode	1/3 Scan
Input power frequency	50 or 60 Hertz
Input Voltage	110 ～ 240 Volt
Blind spot rate	＜1/10,000
Ingress Protection	IP65/IP54
Operating temperature	﹣20 ～﹢50 ℃
Operating humidity	10％～ 90％
Control distance	CAT5 cable:＜100 m; Single mode fiber:＜10 km
Signal input format	AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Operating system	Windows (10/7/2000/XP/Vista)
Warranty	5 years
