Product Details:
Payment & Shipping Terms:
|
| Module Size: | 320x320mm | LED Configuration: | SMD2727 1R1G1B |
|---|---|---|---|
| Brightness: | 7000nits | IP Rating: | IP65 |
| Maintenance: | Double Service | Cabinet Size: | Customized |
| Cabinet Material: | Iron Or Aluminum | Warranty: | 2 Years |
6.67mm High Brightness Outdoor Front Service LED Display Customized Size Intelligent Solutions
Perfect Solution

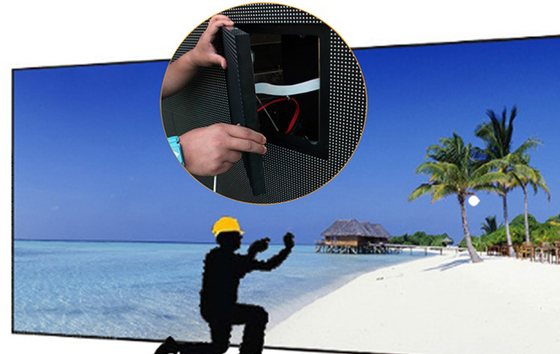

1.Around 10 seconds to replace one multifunction module,labor and time saving.
2.Size design offers you more options.
3.Wherever you are,you can manage your led signs freely
Specifications
| Module | ||||||
| Dimensions (W x H) | 320X320mm | Resolution (w x h) | 48*48 | |||
| Pixel pitch | 6.67mm | Pixel Density | 22477/㎡ | |||
| Driving IC | MBI5124 | Pixel Configuration | 1R1G1B | |||
| Power Consumption Average/pcs | 40W | Power Consumption Max/module | 90W | |||
| Parameter | Value | |||||
| Brightness | 7000cd/㎡ | |||||
| Viewing Angle | Horizontal 140(＋70/-70)deg. Vertical 140(+70/-70)deg. | |||||
| Minimum Viewing Distance | 7meters | |||||
| Brightness Control | 256 level | |||||
| Gray scale | 65,536 level | |||||
| Refresh frequency | 1920 Hertz | |||||
| Driving mode | 1/4Scan | |||||
| Input power frequency | 50 or 60 Hertz | |||||
| Input Voltage | 110 ～ 240 Volt | |||||
| Blind spot rate | ＜1/10,000 | |||||
| Ingress Protection | IP65/IP54 | |||||
| Operating temperature | ﹣20 ～﹢50 ℃ | |||||
| Operating humidity | 10％ ～ 90％ | |||||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||||
| Signal input format | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||
| Operating system | Windows (10/7/2000/XP/Vista) | |||||
| Warranty | 2 years | |||||
Maintenance Steps
Project Reference
The solution can be widely applied in churches,schools,automotive,retail,government,etc.
