Custom Wall Hanging High Definition LED Display Indoor LED Screen Pixel Pitch 3.91mm

Large Image : Custom Wall Hanging High Definition LED Display Indoor LED Screen Pixel Pitch 3.91mm Get Best Price

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Newstar-LED
Certification:	CE, RoHS, UL, FCC, ISO
Model Number:	BS-3

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc/ 1 sqm.
Price:	US $1,000-2,000 /sqm.
Packaging Details:	Flight case /Fumigation-Free wooden case
Delivery Time:	8-25days after received the payment
Payment Terms:	T/T
Supply Ability:	2000 Square Meter/Month

Contact Now

Detailed Product Description

Product Name:	Led Display Screen/led Display Panels	Pixel Pitch:	3.91mm
Pixel Configuration:	1R1G1B	Tube Chip Color:	Full Color
Use:	Outdoor	Protection Ratings:	IP21
High Light:	High Definition LED display , led display boards

Custom Wall Hanging High Definition LED Display Indoor LED Screen Pixel Pitch 3.91mm

Quick Detail:

1. Great uniformity and without mosaic

2. Bravo contrast ratio, high resolution/high definition

3. Light weight and convenient to install

4. Back cover of the cabinet can change color, choose yours color.

5. Waterproof Level: IP21

6. Cabinet material is aluminum

3.91mm Hanging Lightweight LED Display , Ultra Thin LED Screen

Description:

1. Slim Design

One cabinet size is 500 x 500 x 83mm, and Aluminum material, result to light weight and fast installation.

2. Easy Installation

No tools still can achieve high work efficiency. One person can finish the whole process alone.

3.Die Casting Structure

Cabinet with this special design, not only shine the front of your stage, but the back view also can impress

you deeply.

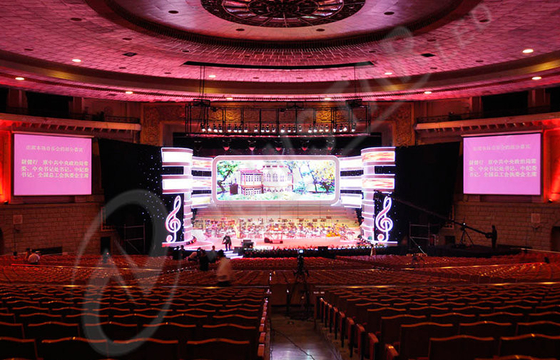

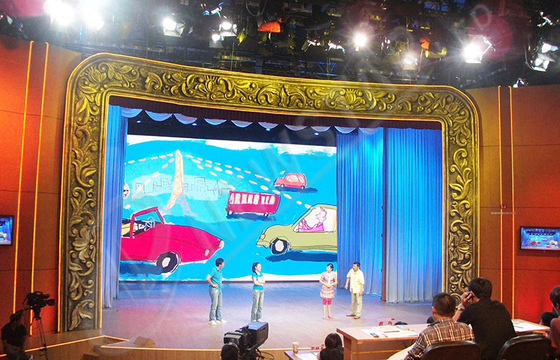

Applications:

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as

banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,

shopping malls, railways, airports, harbors, etc;

Specifications:

1. Indoor LED Display Technical Parameter

Model No.	NS-IR-DS-P3.91
Pixel Pitch	3.91mm
Module Size	250*250mm
Module Resolution(pixels)	64*64
Panel Size	500mm×500mm
Panel Resolution(pixels)	128×128
Pixel Configuration(RGB)	1R1G1B
Pixel Density(pixels/m2)	65410
Brightness(cd/m2)	2000
Best Viewing Distance(m)	6-100
Max.Power Consumption(W/m2)	1350
Waterproof Level	IP21
Wavelength	R 620-625 G 520-525 B 470-475
LED SPEC	2020
Viewing Angle	140°(H)/60°(V)
Operating Temperature	–20~50°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	≥300HZ
Grey Level(colors)	16.7million
MTBF	≥50000 hours
Lifespan	≥100000Hours
Working Voltage	220V±15% OR 110V±15%
Drive Mode	Constant 1/10
Graphics Card	DVI Graphics card
Video Signal	RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System	LINSN
Software	LED studio 10.0
Installation	Wall mount, hung and stand structure

2. Indoor LED Display Module

Dimensions (w x h)	250mmx250mm	Resolution (w x h)	64 x 64
Pixel pitch	3.91mm	Pixel Density	65536/㎡
Pixel Configuration	1R1G1B 3 IN 1	LED Type	2020 black LED

3. Indoor LED Display Cabinet

Dimensions(w x h x d)(mm)	500x500x75	Module Quantity	4
Physical Resolution (w x h)	128 x 128	Physical Pixels (total)	16384
Weight/Panel (kgs)	7.5	Material	Aluminum
Average Power/sqm (watts)	330	Max Power/sqm(watts)	900

4. Methods for Quality Assurance

a. Aging

1. 100% fully test

2. Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online remote support

3. Solution and PCB design

4. Free factory training

5. Onsite installation instruction and regular inspection
