P4 Indoor Rental HD LED Display Lightweight , Ultra Thin led video wall rental
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Panel Size: | 576*576*83mm | Panel Weight: | 9kg |
|---|---|---|---|
| Module Dimension: | 288*288mm | LED Tub Chip: | Full Color |
| LED Configuration: | 3 IN 1 RGB SMD2020 Black | Useage: | Indoor |
| IP Rating: | IP3X | Warranty: | 2 Years |
| High Light: | High Definition LED display,led display boards |
||
P4 Indoor Rental HD LED Display Lightweight , Ultra Thin led video wall rental
Product Features
1. Die-cast Aluminum Structure
Improving the display flatness,high-precision processing technology(0.05mm accuracy.)
2. Lightweight & Ultra thin
Only 9kg/panel,83mm Thickness.
3.Super-broad Viewing Angle
Horizontal viewing angle up to 140º ,bringing you more optimal viewing area.
4. Noiseless
No fan design results in no noise and less power consumption.
5. Quick Set-up & Dismantle
Fast lock system saves installation time and labor cost.
6. High Contrast and Grey Scale
4000:1 contrast ratio.16bit gray scale to bring excellent performance when the brightnesss is reduced
to 30%.
7. Easy to Maintain
Remove and replace the defect part individually to solve the sudden issue promptly.
Techinical Specificaions
| Model Number | LS4 |
| Pixel Pitch | 4mm |
| Pixel Density/m2 | 62500dots |
| Module Size | 288*288mm |
| Module Resolution | 72*72dots |
| Panel Dimension | 576*576*83mm |
| Panel Resolution | 144*144dots |
| Panel Weight | 19.8lbs |
| Refresh Rate | 2000Hz |
| LED Configuration | 1R1G1B SMD2020 Black |
| Brightness | 1200cd/m2 |
| Power consumption | Avg:105W / Panel |
| Grayscale | 65536level |
| Viewing Angle(H/W0 | 140º / 140º |
| Lifespan | 100,000hours at 50%brightness |
| Operating Temperature | -40centigree-+60centigree |
| IP Rating | IP3X |
| Certifications | CE,ROHS,ETL |
| Warranty | 2 years |

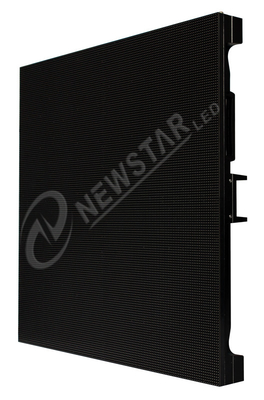

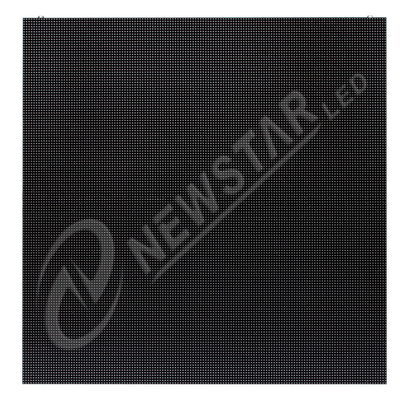

Product Images
Just tell us which color you prefer to the color and the logo which you want to show on the rear
cover,we can design it for you.

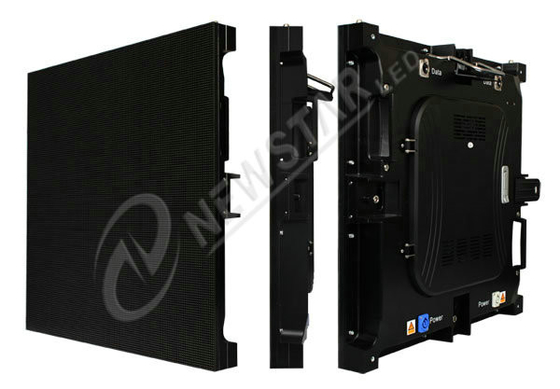

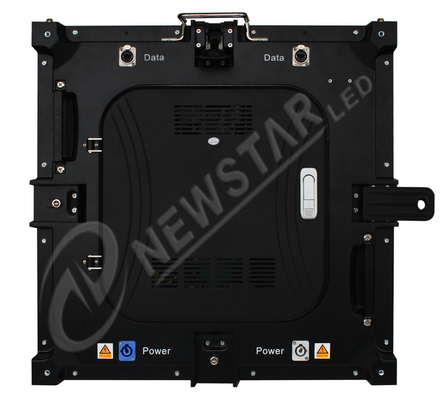

Cabinet structure and installation
Applications
Light Series featured like high precision,lightweight,ultra thin and die casting aluminum. This item offer excellent contrast and image quality.Robust structure and high quality materials allow LED screen to have amazing durability.No matter the cate show,or the shopping mall events,just enjoy the eye feast via our screens.
