High Brightness 10mm Outdoor Rental LED Display Waterproof Die Casting Aluminum Cabinet

Large Image : High Brightness 10mm Outdoor Rental LED Display Waterproof Die Casting Aluminum Cabinet Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	NEWSTAR
Certification:	CE,RoHS
Model Number:	KS10

Payment & Shipping Terms:

Minimum Order Quantity:	20sqm
Price:	924$/SQM
Packaging Details:	Flightcase
Delivery Time:	15-20 business days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	1000sqm per month

Contact Now

Detailed Product Description

Cabinet Dimension:	640*640MM	Module Size:	320*160MM
Material:	Die-cast Aluminum	LED Type:	1R1G1B
LED Configuration:	SMD3535	Panel Weight:	13kg
IP Rating:	IP65	Warranty:	2 Years

High Brightness 10mm Outdoor Rental LED Display Waterproof Die Casting Aluminum Cabinet

Main Features

A.Die-cast Aluminum Structure

Improving the display flatness,high-precision processing technology(0.05mm accuracy)

B.Lightweight & Ultra Thin

Only 13kg/panel,75mm thickness

C.Quick Set-up & Dismantle

Fast lock system saves installation time and labor cost

D.High Brightness

Brightness up to 6500nits,can work against direct sunlight.

F.IP65 Rating

SMD3535 LED,high protection cabinet and module design.

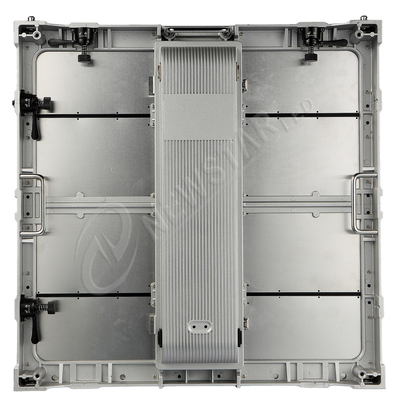

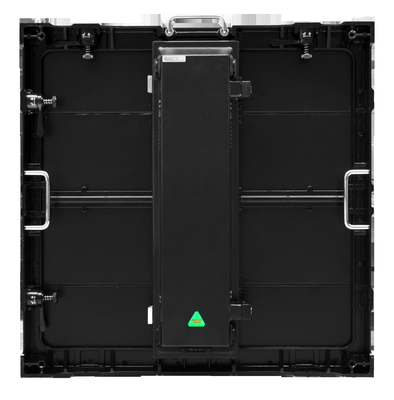

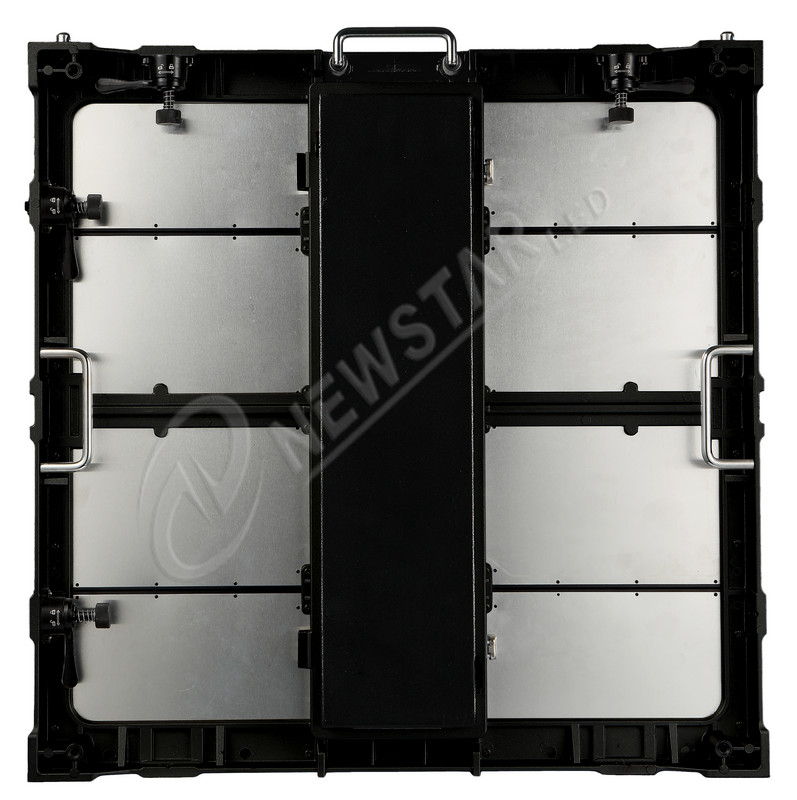

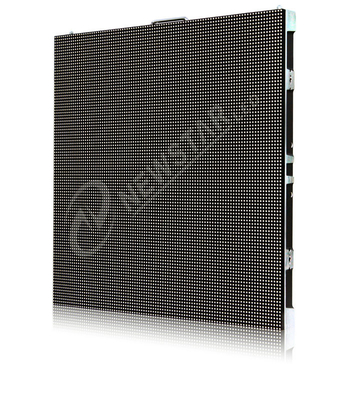

Product show

High Brightness 10mm Outdoor Rental LED Display Waterproof Die Casting Aluminum Cabinet 0

Technical Specification

Cabinet Parameter

Cabinet Size	640*640mm
Cabinet Material	Die cast Aluminum
Cabinet Weight	13kg
Cabinet Resolution	64*64dots
Cabinet Protection	IP65

Module Parameter

Pixel Pitch	10mm
Pixel Configuration	1R1G1B
LED type	SMD3535
Module size	320*160mm
Module resolution	32*16dots

Screen Parameter

Pixel Pitch	10mm
Driving Mode	Constant 1/4
Refresh Rate	>2000Hz
Brightness	>6000cd/m²
Power Consumption	Avg:300W/Panel
Grayscale	65536level
Viewing Angle(H/V)	140º/140º
Life span	100,000 hours at 50% brightness
IP Rating	IP65
Warranty	2 years
