Outdoor P10 Waterproof LED Screen Stage Background Aluminum Die-Casting LED Display
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Panel Material: | Die-casting Aluminum | Panel Size: | 640X640mm |
|---|---|---|---|
| Module Size: | 320X160mm | Brightness: | 5000nits |
| Panel Thickness: | 75mm | LED Configuration: | 1R1G1B SMD3535 |
| IP Ingress: | IP65 | Warranty: | 2 Years |
Outdoor P10 Waterproof LED Screen Stage Background Aluminum Die-Casting LED Display
Quick Detail:
1. Unequalled brightness & extreme viewing angles
2. Slim, light-weight and easy to install.
3. Accurate color uniformity and smoother, flicker-free video
4. Ultimate picture quality, longevity and low cost of ownership
5. Available models: P6, P8, P10.
Description:
1. Combining several global leading display board control technologies, such as grey level code
technology, brightness control technology, and nonlinearly rectifying technology
2. Modularization, high resolution and high contrast design, vivid dynamic display
3. Arbitrarily exchanging the display or displaying synchronized video
4. Long lifespan, can reach more than 100,000 hours, while the power consumption is lower than one tenth of lamp or neon.
5. Economical maintenance and cost saving.
Applications:
Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station,schools,telecommunications,customs,stadiums,studio,shopping
malls, railways, airports, harbors, etc;
Specifications:
1.Outdoor LED Display Technical Parameter
|
Model No. |
KS10 |
|
Pixel Pitch |
10mm |
|
Module Size |
320*160 |
|
Module Resolution(pixels) |
32*16 |
|
Panel Size |
640mm × 640mm |
|
Panel Resolution(pixels) |
64 × 64 |
|
Pixel Configuration(RGB) |
1R1G1B |
|
Pixel Density(pixels/m2) |
10,000 |
|
Brightness(cdm2) |
>5,000 |
|
Best Viewing Distance(m) |
10 |
|
Max.Power Consumption(W/m2) |
900 |
|
Wavelength |
R 620-625 G 520-525 B 470-475 |
|
LED SPEC |
3535 |
|
Viewing Angle |
140°(H)/140°(V) |
|
Operating Temperature |
–40~60°C |
|
Video Frame Rate(Hz) |
≥60HZ |
|
Display Refresh Rate(Hz) |
≥300HZ |
|
Grey Level(colors) |
16.7million |
|
MTBF |
≥50,000 hours |
|
Lifespan |
≥100,000Hours |
|
Working Voltage |
220V±15% OR 110V±15% |
|
Drive Mode |
Constant 1/4 |
|
Graphics Card |
DVI Graphics card |
|
Video Signal |
RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
|
Installation |
Wall mount, hung and stand structure |
2. Outdoor LED Display Module
|
Dimensions (w x h) |
360mm x 120mm |
Resolution (w x h) |
32 x 16 |
|
Pixel pitch |
10mm |
Pixel Density |
10,000/㎡ |
|
Pixel Configration |
1R1G1B 3 IN 1 |
LED Type |
SMD 3535 |

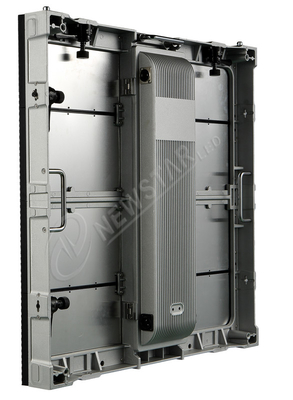

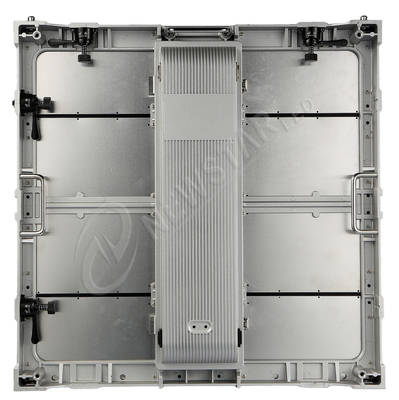

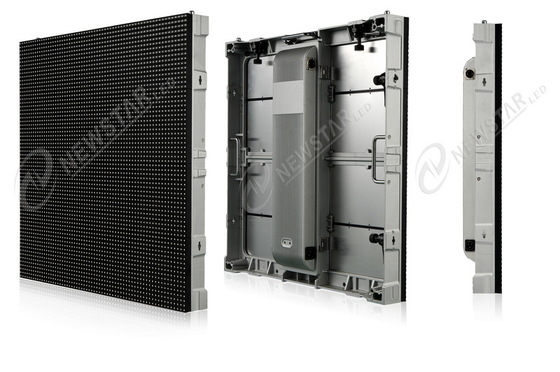

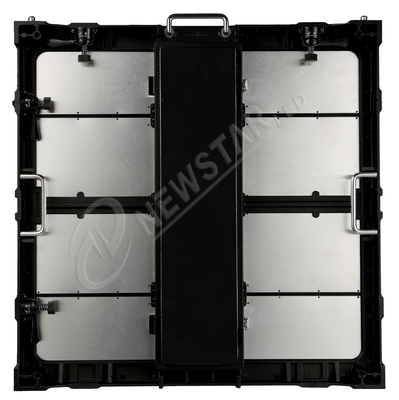

3. Outdoor LED Display Cabinet
|
Dimensions(w x h x d)(mm) |
640 x 640 x 75 |
Module Quantity |
8 |
|
Physical Resolution (w x h) |
64 x 64 |
Physical Pixels (total) |
4,096 |
|
Weight/Panel (kgs) |
13 |
Material |
Aluminum Die casting |
|
Average Power/sqm (watts) |
330 |
Max Power/sqm(watts) |
900 |
4. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Package
Flight case
