Super Thin P3 576 X 576mm Indoor LED Video Wall , 1R1G1B SMD2020 Led Display
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Cabinet Size: | 576X576mm | Module Size: | 192X192mm |
|---|---|---|---|
| LED Configuration: | 1R1G1B SMD2020 | Cabinet Material: | Aluminum Die-casting |
| Fresh Rate: | 1920Hz | IP Rating: | IP31 |
| Cabinet Thickness: | 83mm | Panel Weight: | 10kg |
| Warranty: | 2 Years | ||
| High Light: | flexible led video screen,indoor advertising led display |
||
P3 576 X 576mm Die-Cast Aluminum Indoor LED Video Wall Super thin 83mm led display
Main Features
1. Lightweiht only 10kg/panel
2. Quick set-up and dismantle as the fast lock design.
3. Small pixel pitch 3mm deliver Super clear vision
4. Silent no fan desin
5.Ultra-thin only 83mm thickness
Specifications
| Parameter | Value | Unit |
| Pixel pitch | 3 | mm |
| Pixel configuration | R,G,B 3in1 | |
| SMD type | 2020 | — |
| Pixels per sq.m. | 111,111 | dot |
| Module Size | 192 x 192 | mm |
| Module Resolution | 64 x 64 | dot |
| Cabinet size (W×H×D) | 576×576x83 | mm |
| Cabinet Resolution | 192 x 192 | dot |
| Pixels per cabinet | 36,864 | dot |
| Cabinet area | 0.3318 | sq.m. |
| Cabinet material | Die Casting Aluminum | — |
| Cabinet weight | 10 | kg |
| Brightness | ≥1200 | nits |
| Viewing angle-H | 140 (+70/-70) | deg. |
| Viewing angle-V | 140 (+70/-70) | deg. |
| Ingress protection | indoor use | — |
| Minimum viewing distance | 3 | m |
| Gray scale | 65536 | level |
| Brightness control | 256 | level |
| Refresh frequency | >3000 | Hz |
| Driving mode | 1/16scan | — |
| Input voltage (AC) | 100 ～ 240 | V |
| Input power frequency | 50 or 60 | Hz |
| Power consumption per sq.m. (max/avg) | 900/300 | W |
| Blind spot rate | ＜1/10000 | — |
| Lifetime at 50% brightness | 100000 | Hour |
| Operating temperature | –25～﹢40 | ℃ |
| Operating humidity | 10％ ～ 90％ | — |
| Signal input format (with video processor) |
AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
— |

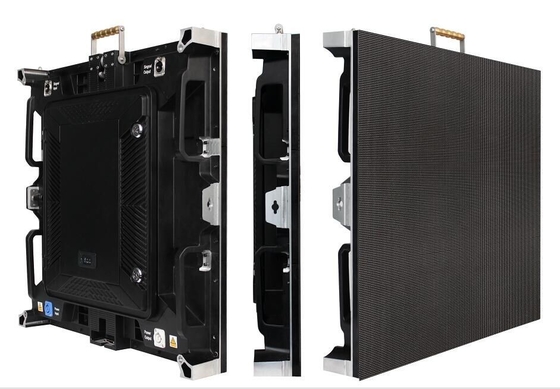

Product Image

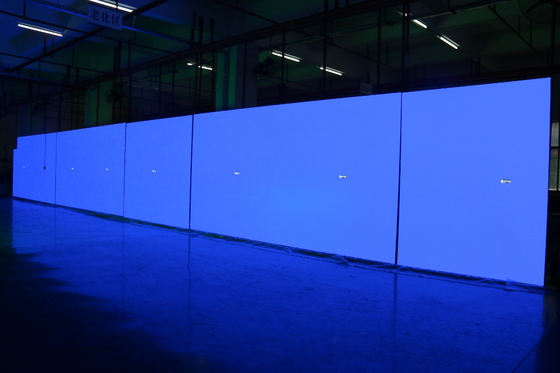

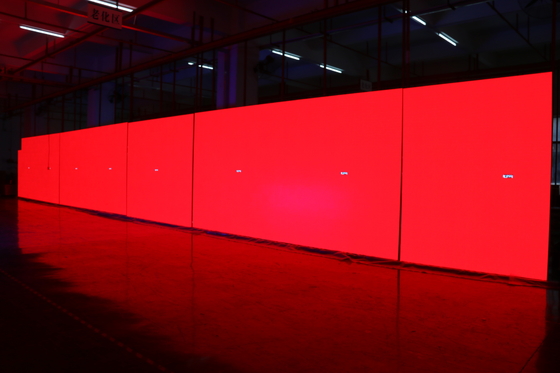

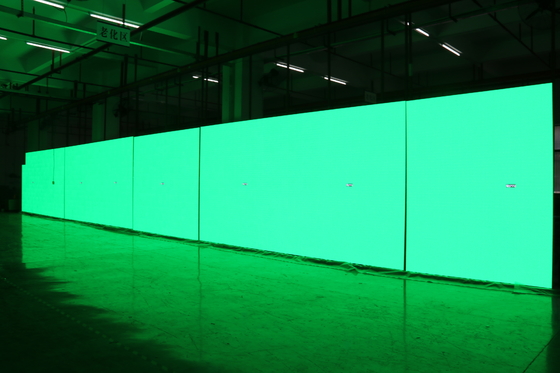

White-balance lighting test
Application
Widely used at the TV Studio,exhibition,club,concerts etc. Its perfect peformance on vivid quality absolutely brings an amazing visual feelings to audiences.
