Name: Event / Fashion Show P3 Rental LED Display Stage Background Led Display
Brand: NEWSTAR
SKU: P3
Price: 2260 USD

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	2260usd/1-100sqm
Packaging Details:	flight case
Delivery Time:	25-30 business days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500sqm per month

Contact Now

Detailed Product Description

Cabinet Size:	576*576mm	Module Size:	192*192mm
Material:	Die Cast Aluminum	LED Type:	SMD2020
Cabinet Weight:	10kg	Brightness:	1500nit
IP Rating:	IP3X	Warranty:	2 Years
High Light:	outdoor rental led display , outdoor led video display

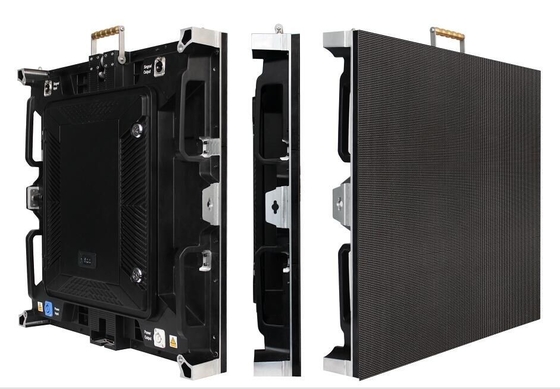

P3 High Definition Amazing Event Rental LED Display 576X576mm Die-cast Aluminum

Lightweight,slim shape and fast lock let installation faster than traditional panels.

It can be widely used in events,fashion shows,conferences,bars,etc.

Specifications

Parameter	Value	Unit
Pixel pitch	3	mm
Pixel configuration	R,G,B 3in1	—
SMD type	2020	—
Pixels per sq.m.	111,111	dot
Module Size	192 x 192	mm
Module Resolution	64 x 64	dot
Cabinet size (W×H×D)	576×576x83	mm
Cabinet Resolution	192 x 192	dot
Pixels per cabinet	36,864	dot
Cabinet area	0.3318	sq.m.
Cabinet material	Die Casting Aluminum	—
Cabinet weight	10	kg
Brightness	≥1500	nits
Viewing angle-H	140 (+70/-70)	deg.
Viewing angle-V	140 (+70/-70)	deg.
Ingress protection	indoor use	—
Minimum viewing distance	3	m
Gray scale	65536	level
Brightness control	256	level
Refresh frequency	>3000	Hz
Driving mode	1/16scan	—
Input voltage (AC)	100 ～ 240	V
Input power frequency	50 or 60	Hz
Power consumption per sq.m. (max/avg)	900/300	W
Blind spot rate	＜1/10000	—
Lifetime at 50% brightness	100000	Hour
Operating temperature	–25～﹢40	℃
Operating humidity	10％～ 90％	—
Signal input format (with video processor)	AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI	—
