High Brightness 6.67 Outdoor 6000 nits Rental LED Display Waterproof

Large Image : High Brightness 6.67 Outdoor 6000 nits Rental LED Display Waterproof Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	NEWSTAR
Certification:	CE,RoHS,ETL
Model Number:	KS6.67

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	1600$/1-100sqm
Packaging Details:	Flight case or wooden case
Delivery Time:	25-30 business days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500sqm per month

Contact Now

Detailed Product Description

Cabinet Dimension:	640*640MM	Module Size:	320*160MM
Material:	Die-cast Aluminum	Tube Chip Color:	1R1G1B FULL COLOR
LED Configuration:	SMD3535	Display Function:	Playing Video,image
Usage:	Outdoor Rental & Stage	Warranty:	2 Years
High Light:	outdoor rental led display , outdoor led video display

6.67 Outdoor High Brightness 6000 nits Rental LED Display Die casting Aluminum Waterproof

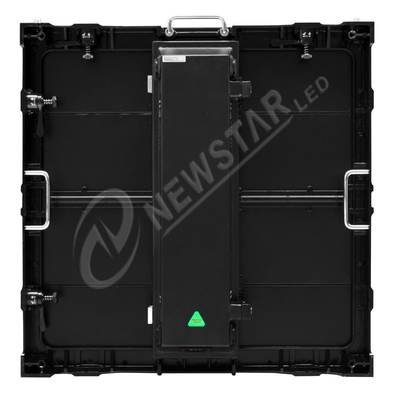

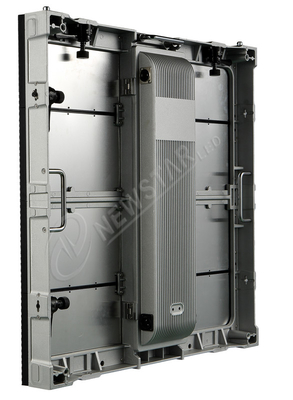

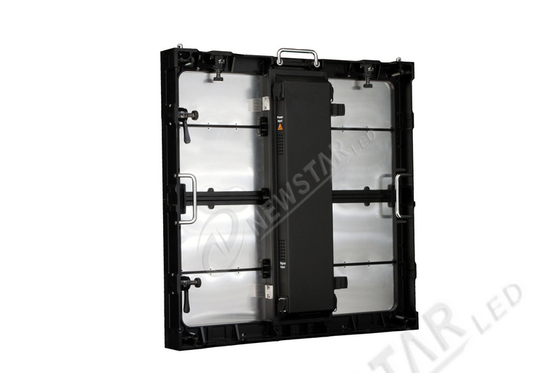

Product Image(front side rear view)

High Brightness 6.67 Outdoor 6000 nits Rental LED Display Waterproof 0

Main Features

A.Die-cast Aluminum Structure

Improving the display flatness,high-precision processing technology(0.05mm accuracy)

B.Lightweight & Ultra Thin

Only 13kg/panel,75mm thickness

C.Quick Set-up & Dismantle

Fast lock system saves installation time and labor cost

D.High Precision and Uniform

Seamless,uniform display without any borders or lines.

E.High Brightness

Brightness up to 8000nits,can work against direct sunlight.

F.IP65 Rating

SMD3535 LED,high protection cabinet and module design.

G.Easy to Maintain

Remove and replace the defect part individually to solve sudden issue promptly.

Product Details show

Technical Specification

Cabinet Parameter

Cabinet Size	640*640mm
Cabinet Material	Die cast Aluminum
Cabinet Weight	13kg
Cabinet Resolution	96*96dots
Cabinet Protection	IP65

Module Parameter

Pixel Pitch	6.67mm
Pixel Configuration	1R1G1B
LED type	SMD3535
Module size	320*160mm
Module resolution	48*24dots

Screen Parameter

Pixel Pitch	6.67mm
Driving Mode	Constant 1/6
Refresh Rate	>2840Hz
Brightness	>6000cd/m²
Power Consumption	Avg:600W/Panel
Grayscale	65536level
Viewing Angle(H/V)	140º/140º
Life span	100,000 hours at 50% brightness
IP Rating	IP65
Warranty	2 years
