Die casting aluminum P3.91 Rental LED Display Indoor high resolution
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel Pitch: | 3.91mm | Pixel Density: | 65,536 Pixels /sq.m |
|---|---|---|---|
| LED Type: | SMD2020 Black Leds | LED Configuration: | 1R1G1B |
| Refresh Rate: | 2，880 Hz | Driving IC: | MBI 5124 |
| Viewing Angle: | 140°/140° | Module Dimension: | 250mm X 250mm |
| Cabinet Size: | 500mm X 500mm | Brightness: | 1200 CD / Sq.m |
| Material: | Die Casting Aluminum | LED Chip: | Epistar |
| Scan Way: | 1/16 | Gray Scale: | 16 Bit |
| IP Rating: | IP31 | Lifespan: | 100,000 H |
| Usage: | Indoor Rental LED Display | ||
| High Light: | outdoor rental led display,outdoor led video display |
||

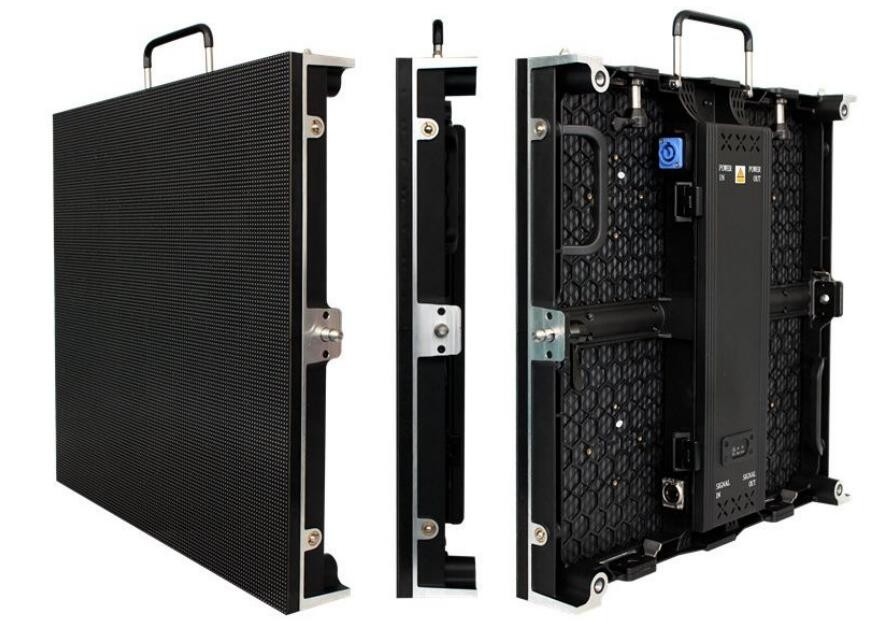

Die casting aluminum P3.91 Rental LED Display Indoor high resolution
Why choose Epoch Series P3.91 Indoor Rental LED Display ?
Epoch series-ID-P3.91 is an high quality professional stage rental events led display, with cabinet size only 500 x 500 mm, 8Kg/Panel make it portable;
Die-casting aluminum structure as cabinet forming help to achieve an high precision;
Fast lock design enable us to do quick installation and dismantle;
Moreover, Epoch Series-ID-P3.91 with commonatly module design of different pixel pitch eable us to replace and not need to buy a new cabinet, which can be cost saving;
Front service structure design,With front service tool, you can do the replacing youself easily.

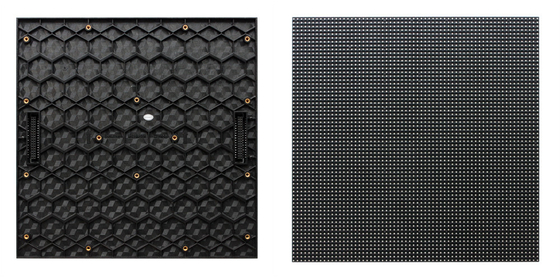

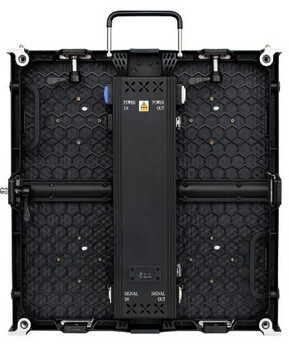

2. Cabinet detailed structure
3. Technical parameters
| Model No. | ES-ID-3.91 |
| Pixcel pitch | 3.91 mm |
| Pixel density /sq.m | 65,536 pixels |
| LED configuration | 1R1G1B SMD 2020 black leds |
| Module size | 250 x 250 mm |
| Cabinet size | 500 x 500 mm |
| Panel resolution | 128 x 128 dots |
| Scan way | 1/16 |
| Refresh rate | 2,880 Hz |
| Panel weight | 8 kg |
| Brigtness | 1200 CD / sq.m |
| Max. power consumption | 300 W/Panel |
| Avg. power consumption | 105 W/ Panel |
| Input voltage | AC 110-220 V (+-5 %) |
| Blind dot rate | ≤0.01% |
| IP rating | IP31 |
| Control system | Novastar/ Linsn |
| Operating system | Windows/me/200NT/XP |
| Working humidity | 10-90% RH |
| MTBF | 35,000 h |
| Lifetime | 100,000 h |
4. Packaging by flight cases

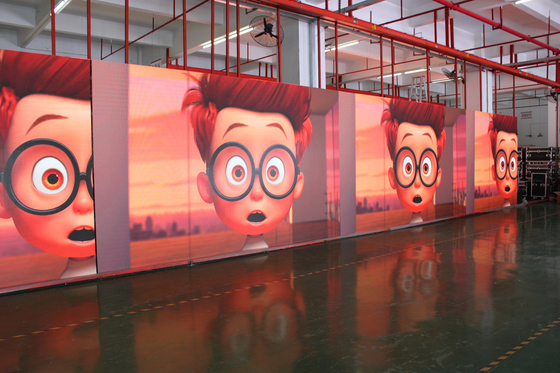

5. Application
Epoch series ES-ID-3.91 rental led display are widely used in stage events, Expo Events, Presentation Hall, Shopping mall and etc.
